Coolant Recovery Pressure Container: Description

WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

The coolant bottle consists of a pressure chamber and a overflow chamber (Fig 1 ) that is mounted in the engine compartment (Fig 2 ). The overflow hose connects the pressure chamber to the overflow chamber.

NOTE: Coolant will normally be in the pressure chamber side of the coolant bottle. The overflow chamber should normally be empty

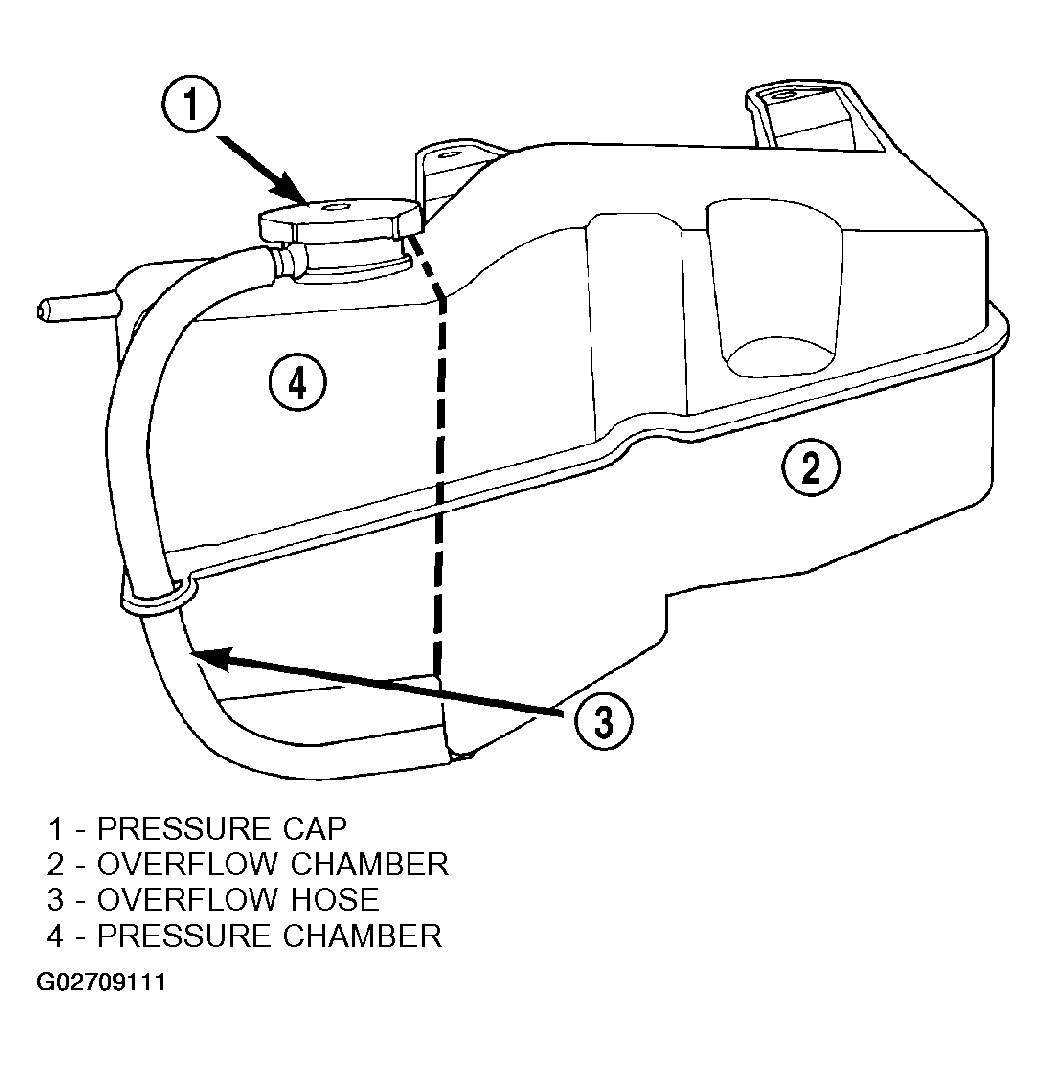

Fig 1: Identifying Coolant Pressure/Recovery Bottle

Courtesy of DAIMLERCHRYSLER CORP.

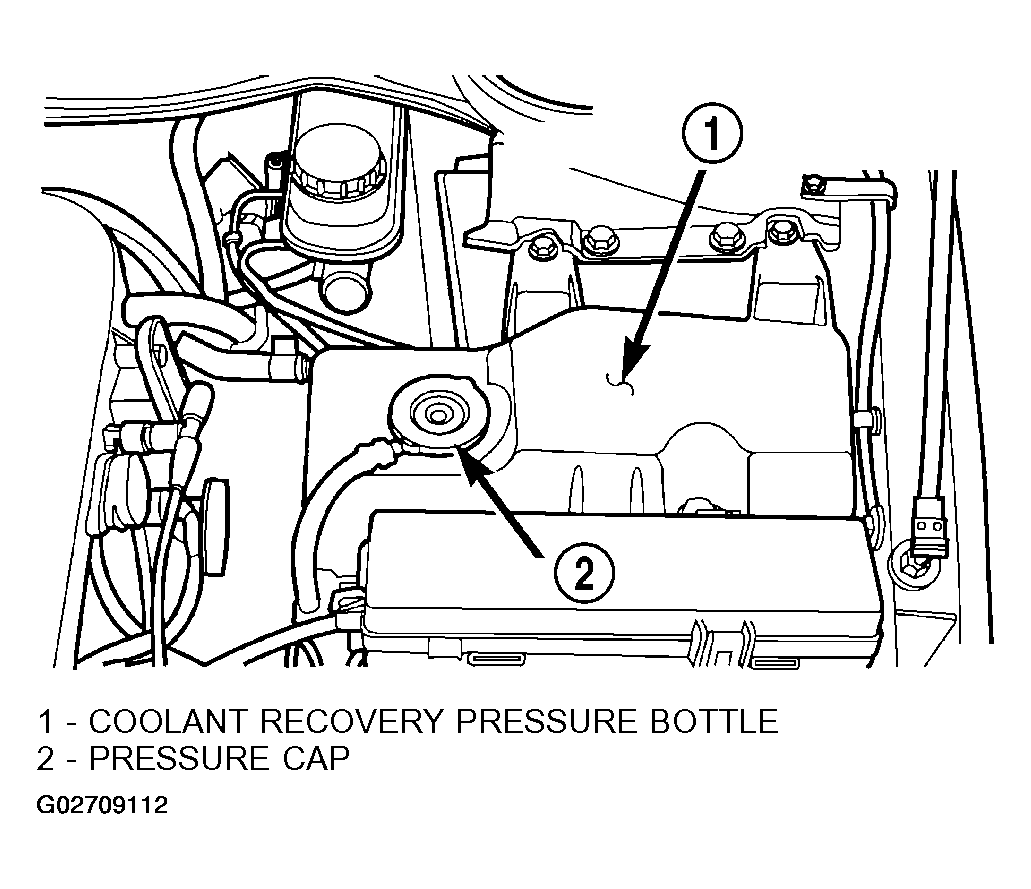

Fig 2: Locating Coolant Recovery Pressure Bottle

Courtesy of DAIMLERCHRYSLER CORP.
