Check Strap: Removal
WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
- Place door glass in the full up position.
- Remove door trim panel. (Refer to REMOVAL
).
- Remove watershield as necessary.
- Remove bolts attaching check strap to door end frame and body.

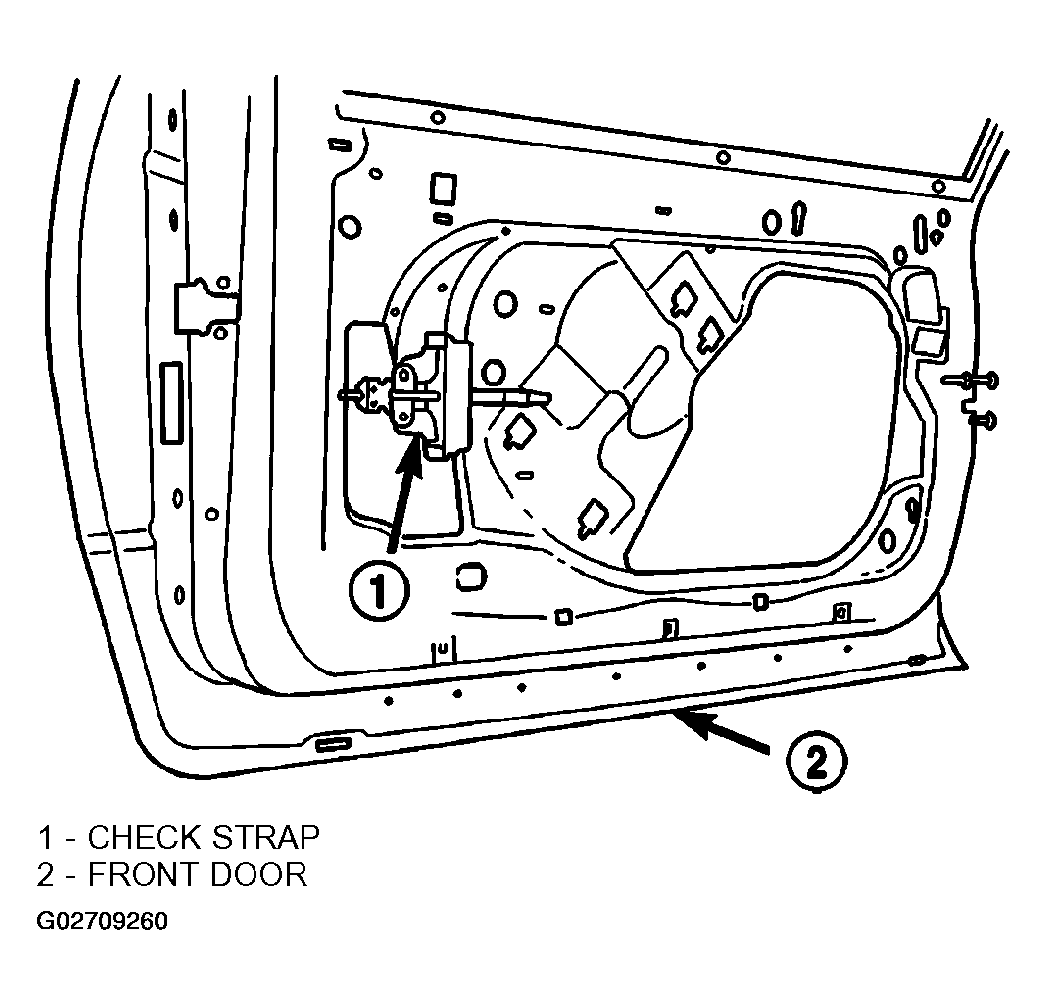

- Remove check strap from vehicle (Fig 1
).
Courtesy of DAIMLERCHRYSLER CORP.
