Window Regulator: Removal
WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
- Remove flag cover, door trim panel, water shield as necessary, and pull cup support bracket. (Refer to REMOVAL ).
- Slide glass from regulator roller channel.
- Disconnect power window motor wire connector.
- Loosen bolt attaching regulator support brace to door panel.
- Remove screw and bolt heads from keyhole slots in door panel.
- Loosen bolts attaching regulator to door panel.
- Remove regulator from door panel.

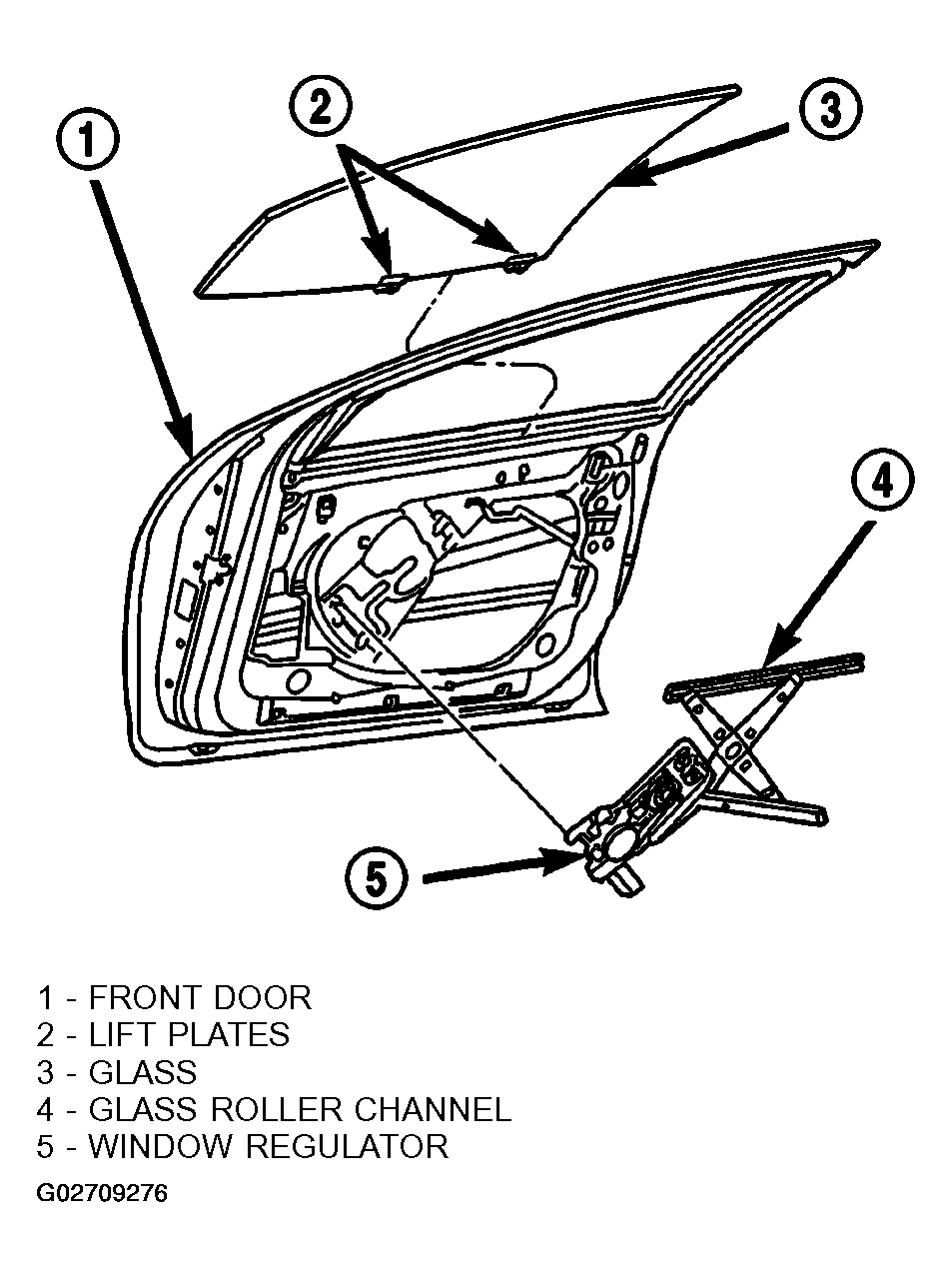

- Slide regulator rearward and rotate forward end of roller channel through access hole in door panel (Fig 1 ).
