A/C Compressor Clutch Relay: Removal

WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect and isolate the battery negative cable.
Remove the cover from the Power Distribution Center (PDC) Fig 1 .

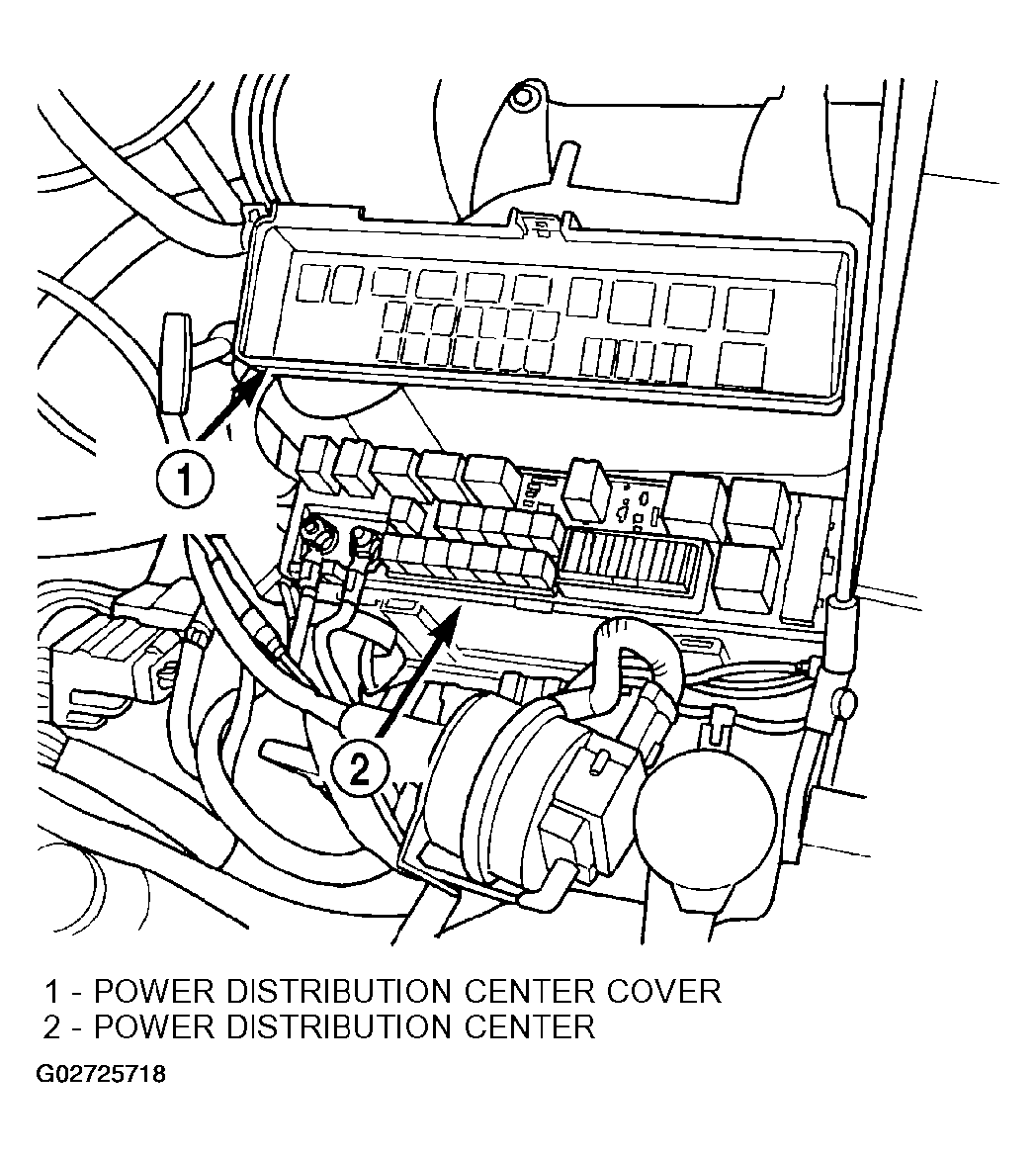

Fig 1: Identifying Power Distribution Center (PDC)
Courtesy of DAIMLERCHRYSLER CORP.
Refer to the label on the PDC for compressor clutch relay identification and location.
Unplug the compressor clutch relay from the PDC.
