Rocker Arm/Adjuster Assembly: Assembly

WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: New dowel pins must be installed when reassembling.

Install the rocker arms, and pedestals onto the shaft.
Install dowel pins (Fig 1). Dowel pins pass through the pedestal into the exhaust rocker shafts. Dowel pins should be pressed in until they bottom-out against the rocker shaft in the pedestal.
Install rocker arm and shafts. (Refer to INSTALLATION ).

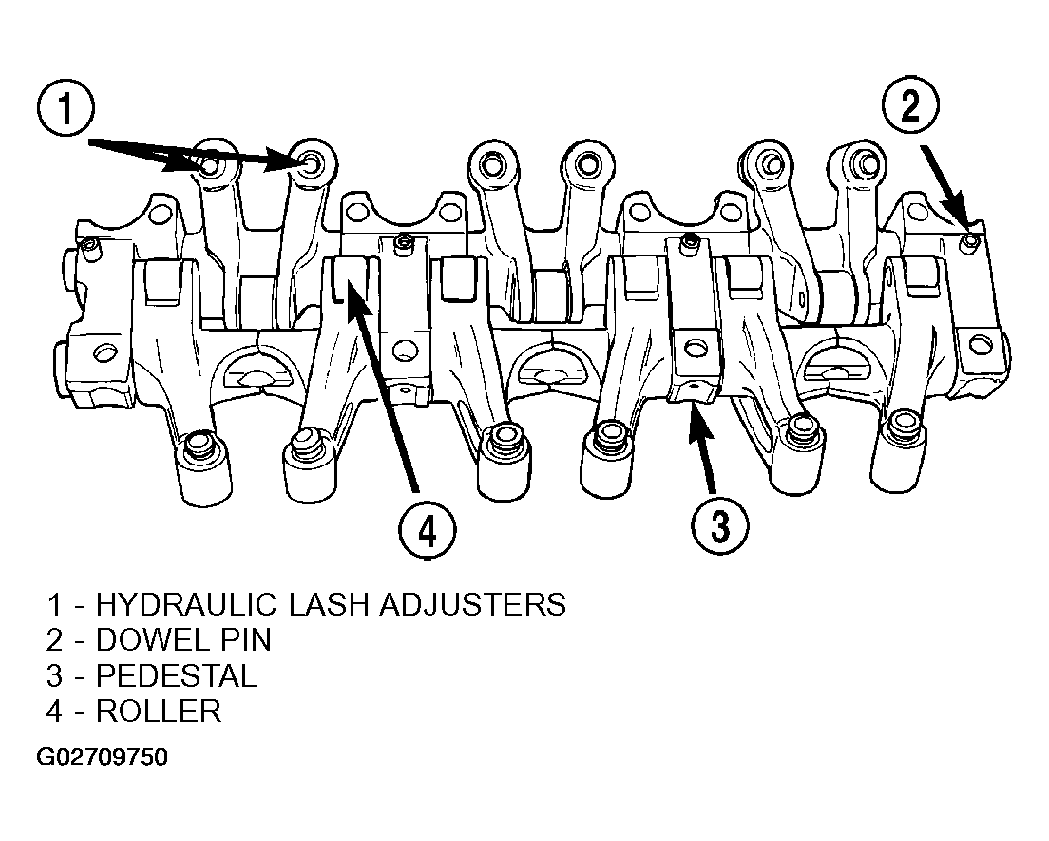

Fig 1: Assembling Rocker Arms And Shaft
Courtesy of DAIMLERCHRYSLER CORP.
