Memory Set Switch

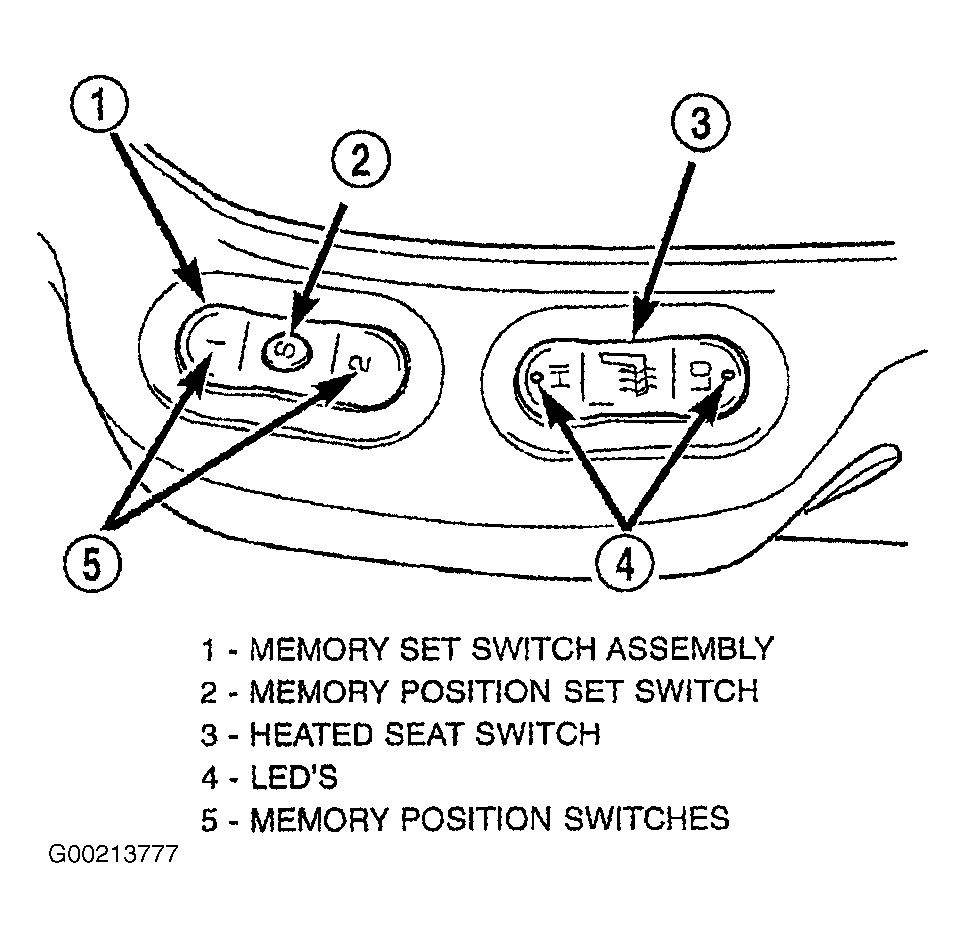

The memory selector switch is mounted on the drivers seat cushion side shield, with easy reach of the driver. This switch provides a way to set new and recall preset positions of seat, seat recliner and the side view mirror. There are 3 separate switches incorporated into the memory set switch. The memory position set switch and memory position on and 2 switches. See Fig 1 .
The memory set switch cannot be repaired or adjusted. If one switch is damaged or faulty, the entire memory set switch must be replaced.
When the memory set switch is depressed, a resistance multiplexed signal is sent to MHSMM that receives this hard wired input and moves the power seat track/side view mirror according to the preset position. When the memory system is in "set" mode a chime will be generated by the BCM.
