Component Locations

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, 2003 Chrysler 300M, and 2002 Dodge Intrepid. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For component location see illustrations. See Fig 1 -Fig 4 .

COMPONENT LOCATIONS

Component	Location
Body Control Module (BCM)	On Back Of Junction Block
Data Link Connector	Under Left Side Of Instrument Panel, Above Brake Pedal
Ignition Switch	On Right Side Of Steering Column
Junction Block	Behind Left Instrument Panel End Cap
Multifunction Switch	On Left Side Of Steering Column
Power Distribution Center	Left Front Side Of Engine Compartment
Washer Fluid Level Switch	Left Front Corner Of Engine Compartment
Washer Pump	Left Front Corner Of Engine Compartment
Washer Reservoir	Left Front Corner Of Engine Compartment
Wiper/Washer Switch	Part Of Multifunction Switch

Fig 1: Locating Body Control Module & Junction Block

Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Locating Data Link Connector

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Locating Power Distribution Center

Courtesy of DAIMLERCHRYSLER CORP.

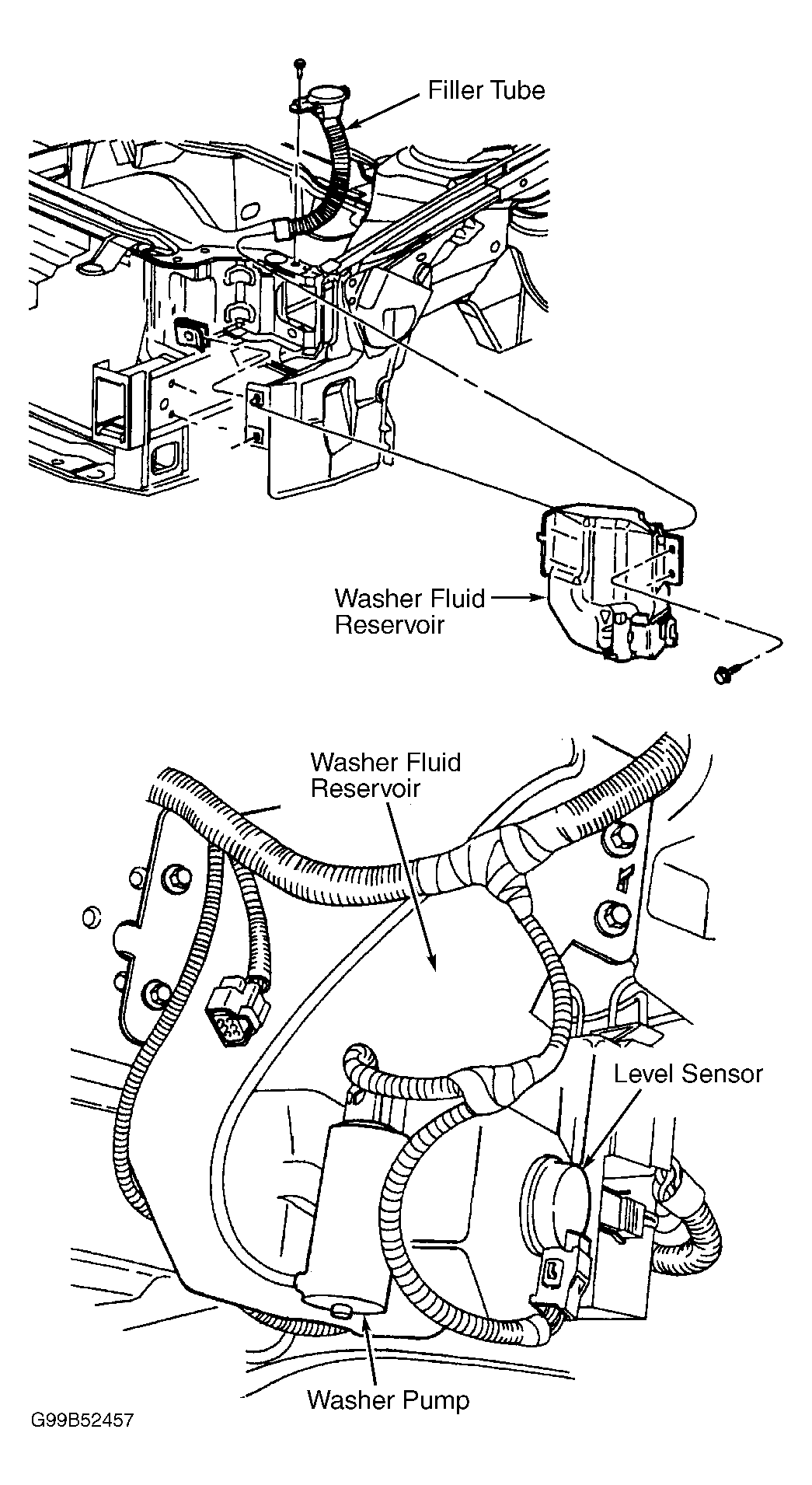

Fig 4: Locating Windshield Washer Reservoir & Components

Courtesy of DAIMLERCHRYSLER CORP.
