Engine Coolant Temperature Sensor: Installation

WARNING: This page is about a different car, the 2002 Dodge Intrepid, 2002 Chrysler Intrepid, 2002 Chrysler Concorde, and 2002 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

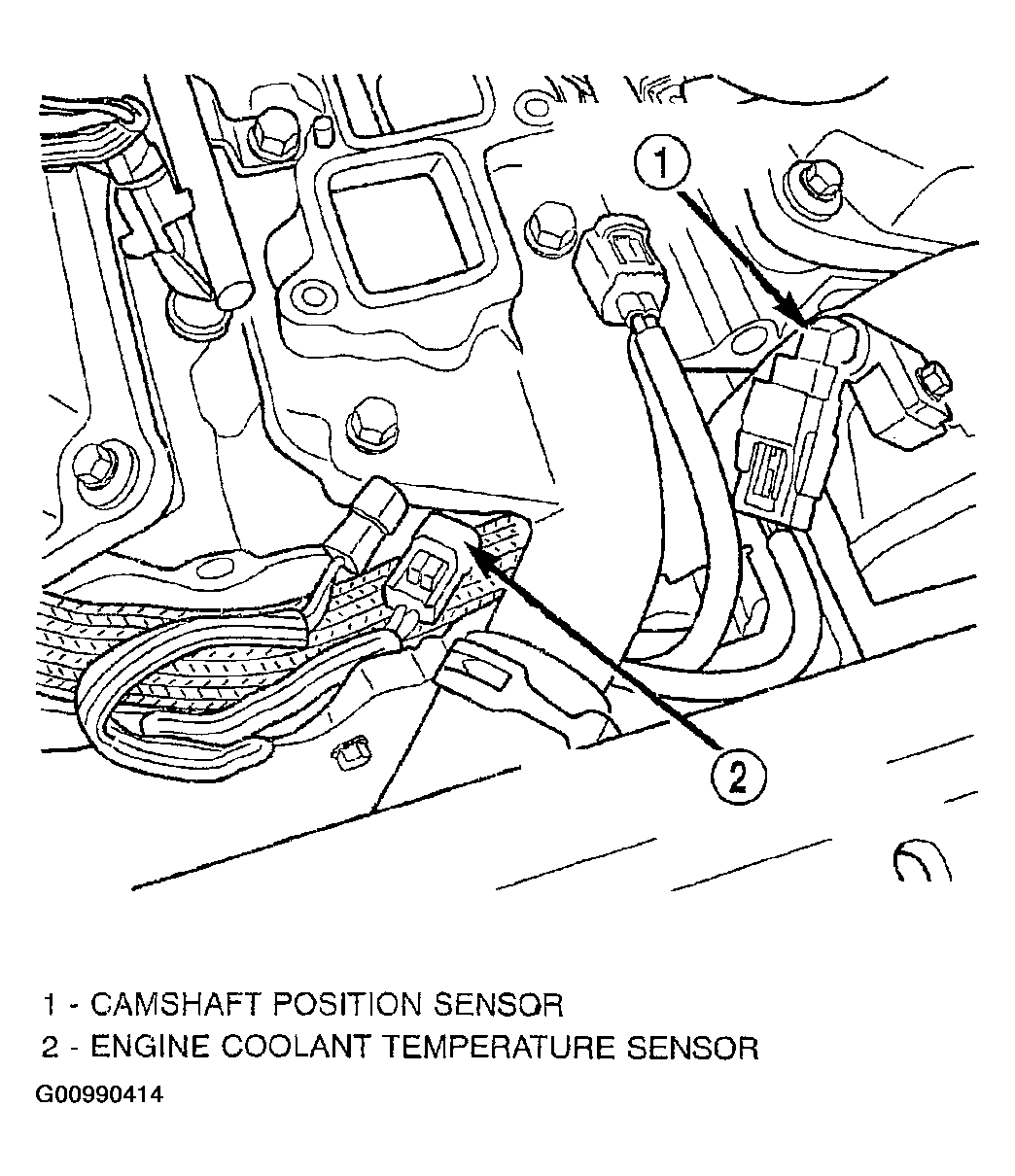

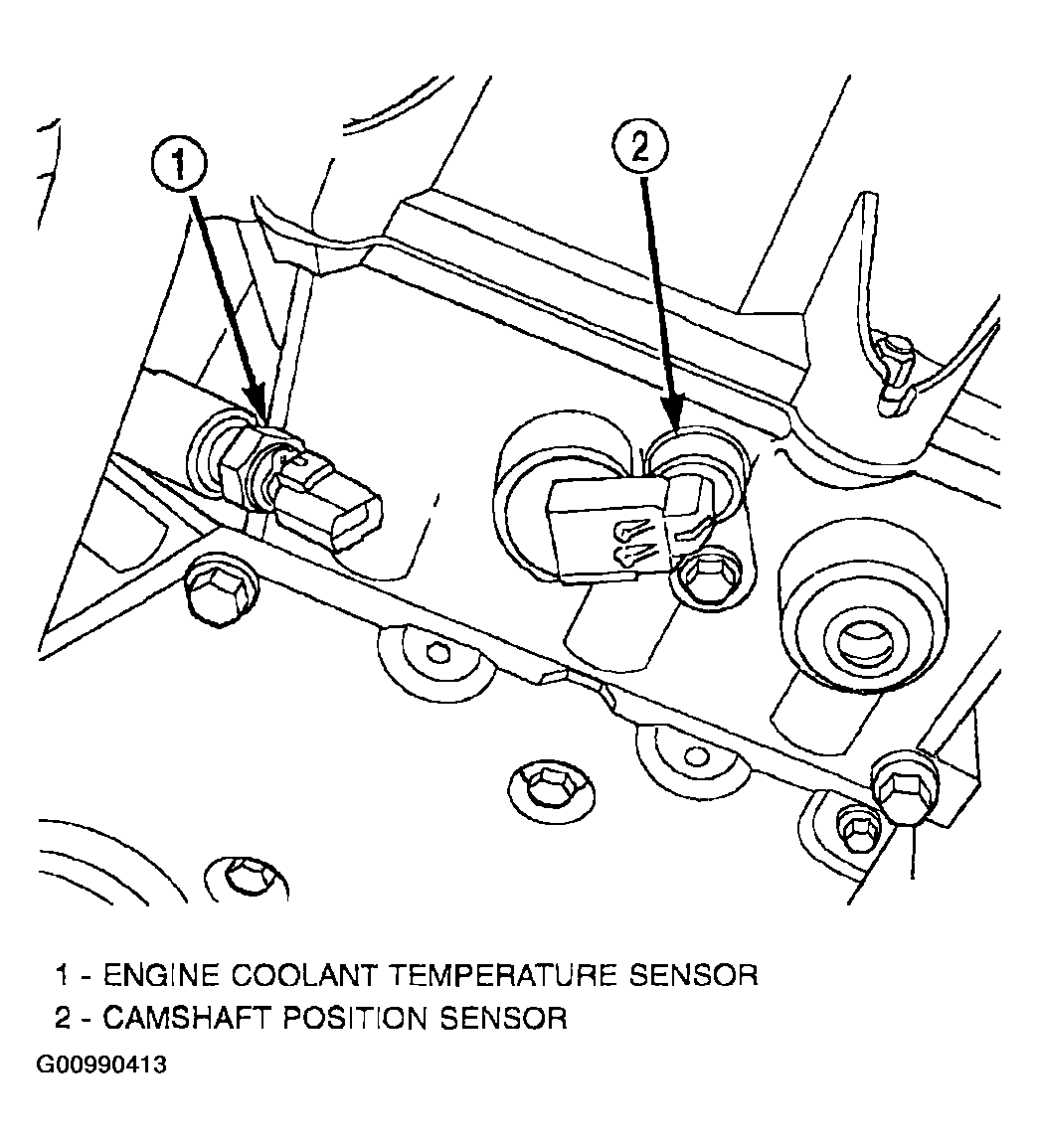

Install engine coolant temperature sensor (Figure) or (Figure). Tighten sensor to 28 N.m (20 ft. lbs.) torque.
Attach electrical connector to sensor.
Connect negative cable to remote jumper terminal.
