Section 71 (Engine Cooling System & Automatic Transmission Cooling System): Radiator: Installation

WARNING: This page is about a different car, the 2002 Dodge Intrepid, 2002 Chrysler Intrepid, 2002 Chrysler Concorde, and 2002 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

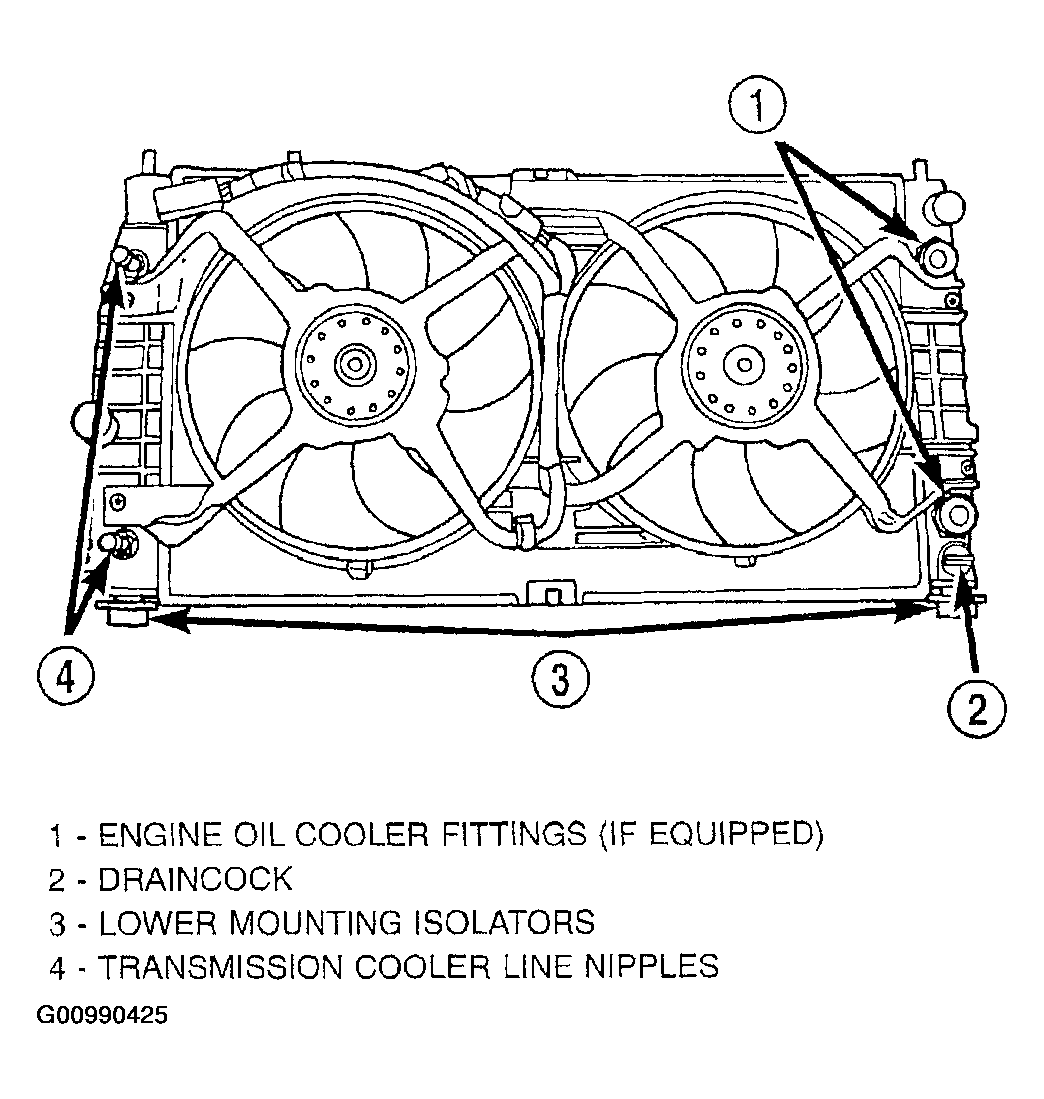

  1. Position radiator into engine compartment. Seat the radiator assembly lower rubber isolators into the mounting holes in radiator lower support (Figure).

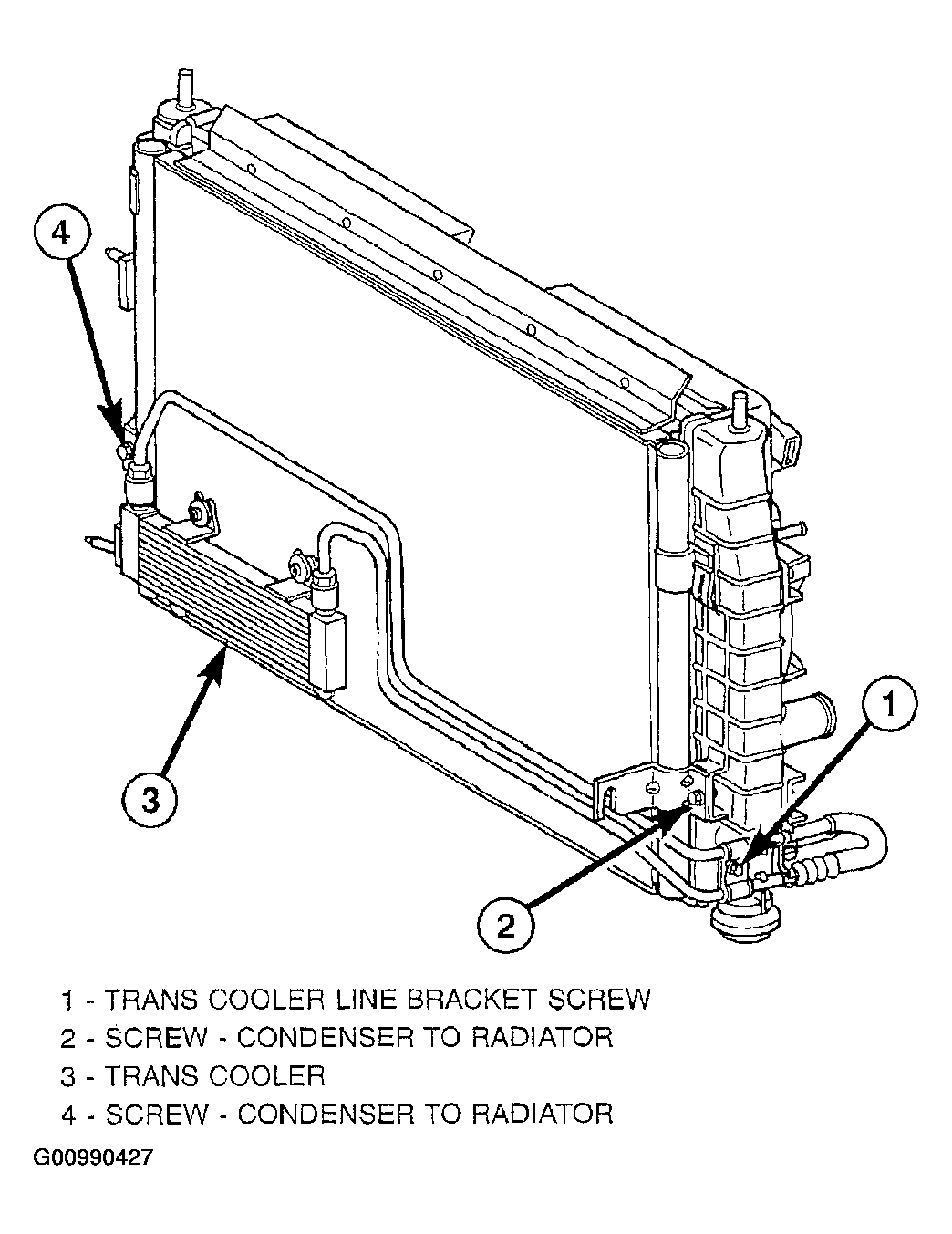

  2. Attach air conditioning condenser to mounting clips on radiator. Install mounting screws and tighten to 5 N.m (45 in. lbs.) (Figure) or (Figure).
  3. Install the radiator lower hose and clamp.

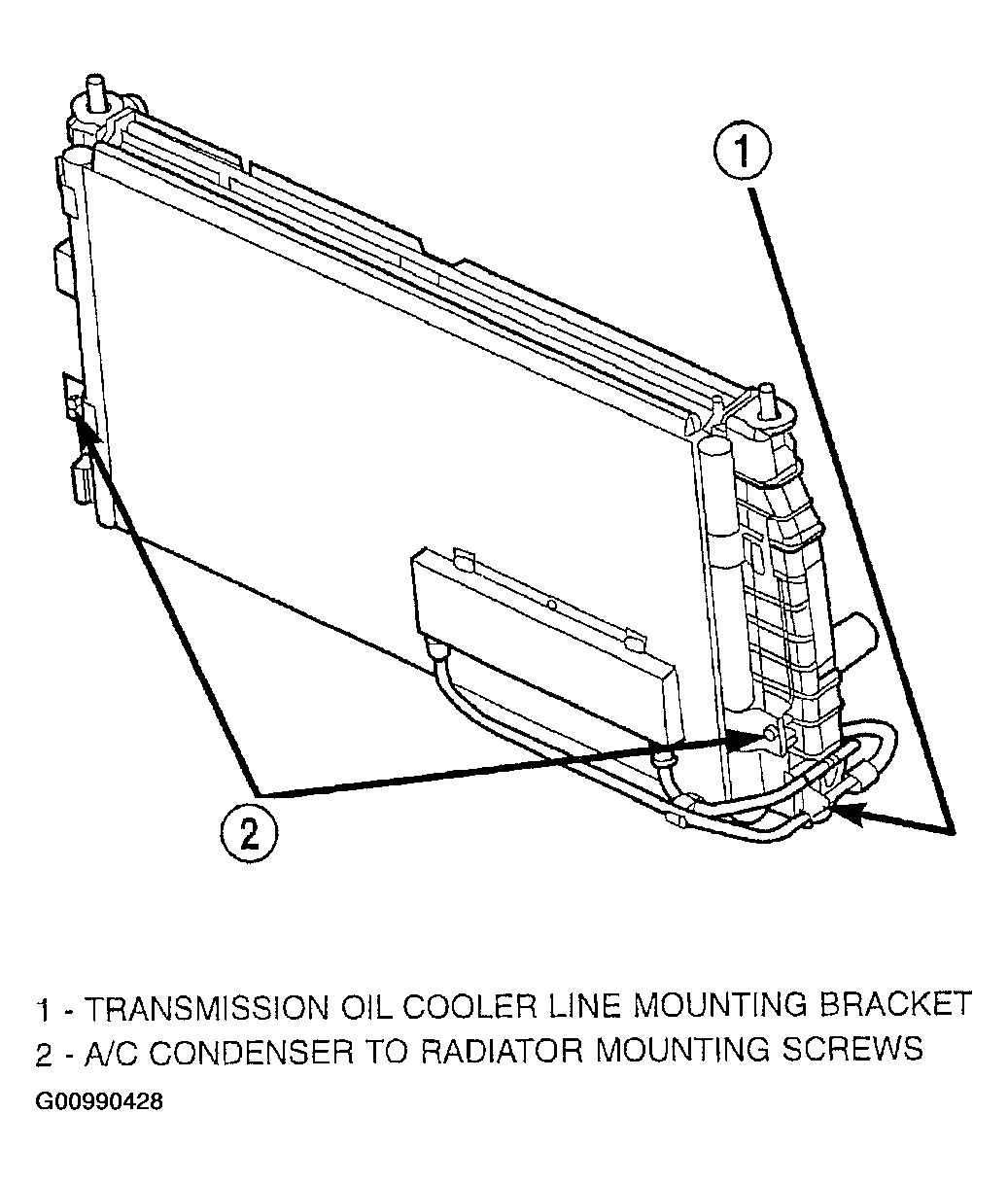

  4. Install the transmission cooler line bracket and attaching fastener (Figure) or (Figure). Connect automatic transmission hoses and torque hose clamps to 3 N.m (28 in. lbs.).
  5. Install the radiator fan. (Refer to RADIATOR FAN ASSEMBLY )
  6. Connect radiator fan motor electrical connector.
  7. Connect engine oil cooler lines (if equipped). Torque lines to 18 N.m (160 in. lbs.).
  8. Install the radiator upper hose. Align hose so it does not interfere with the accessory drive belt or engine. Position hose clamp so it will not interfere with the hood.
  9. Install radiator upper crossmember. (Figure)
    1. Place in position the radiator upper crossmember.
    2. Connect hood latch cable to hood latch.
    3. Install bolts attaching upper radiator closure panel. Check bolt alignment marks.
    4. Install bolts attaching the forward edge of upper radiator closure panel.
    5. Install fasteners attaching the forward edge of radiator upper crossmember.
    6. Install fasteners attaching upper bumper fascia.
    7. Install fasteners attaching upper bumper fascia.
    8. Install headlamp jackscrews both sides.
    9. Check hood operation.
  10. Connect negative cable to remote jumper terminal.
  11. Fill cooling system with coolant. (Refer to STANDARD PROCEDURE - COOLING SYSTEM FILLING )
  12. Operate engine until it reaches normal operating temperature. Check cooling system and automatic transmission for correct fluid levels.
