Assembly - Lower Control Arm (Pivot Bushing)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, 2003 Chrysler 300M, and 2002 Dodge Intrepid. However, it is still accessible from the selected car via links, so may be relevant.

Position the lower control arm so it is supported by Receiver, Special Tool MB-990799, as shown (Fig 1).

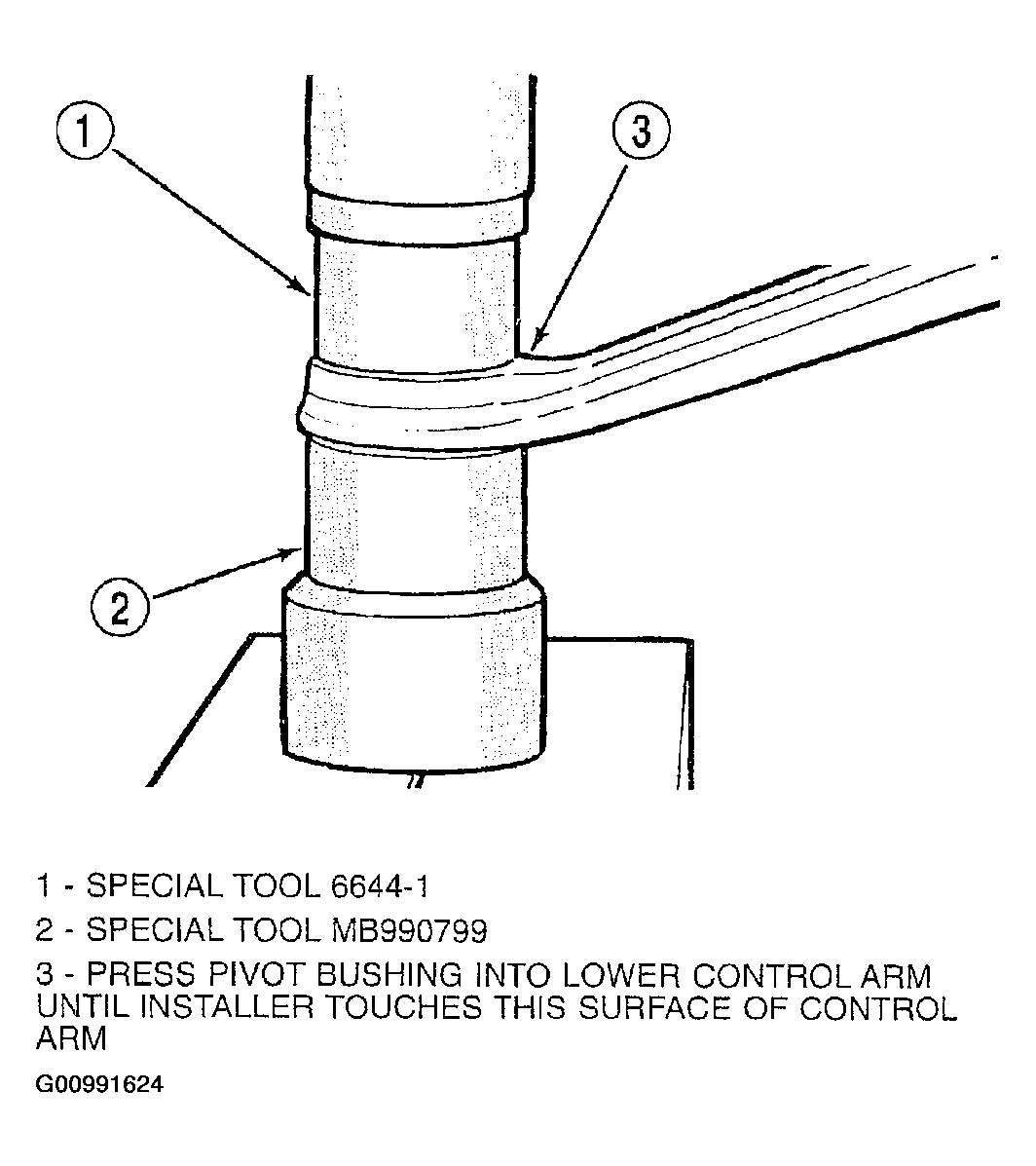

Fig 1: Installing Lower Control Arm Pivot Bushing
Courtesy of DAIMLERCHRYSLER CORP.
Place new pivot bushing in lower control arm so it is square with the bushing hole. Position Installer, Special Tool 6644-1, on top of pivot bushing, with pivot bushing setting in recessed area of Installer (Fig 1).
Press pivot bushing into lower control arm until Installer, Special Tool 6644-1, squarely bottoms against surface of lower control arm (Fig 2). At that point, the bushing is installed to the correct position in control arm.

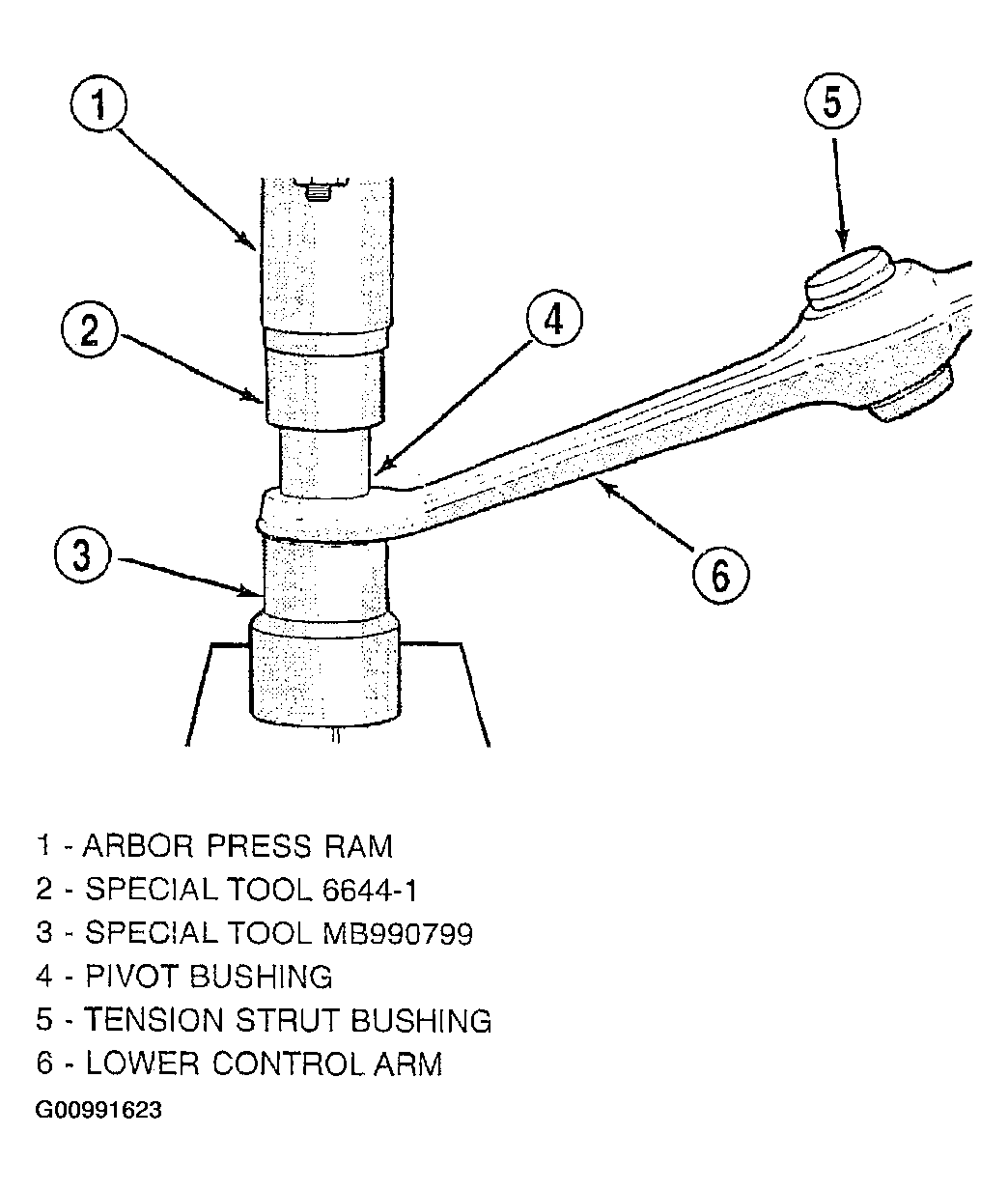

Fig 2: Installing Pivot Bushing
Courtesy of DAIMLERCHRYSLER CORP.
Attach tension strut to lower control arm and install on car as an assembly. See INSTALLATION - LOWER CONTROL ARM .
