Door Cylinder Lock Switch: Installation
WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
- Install the Door Cylinder Lock Switch onto the door lock cylinder.

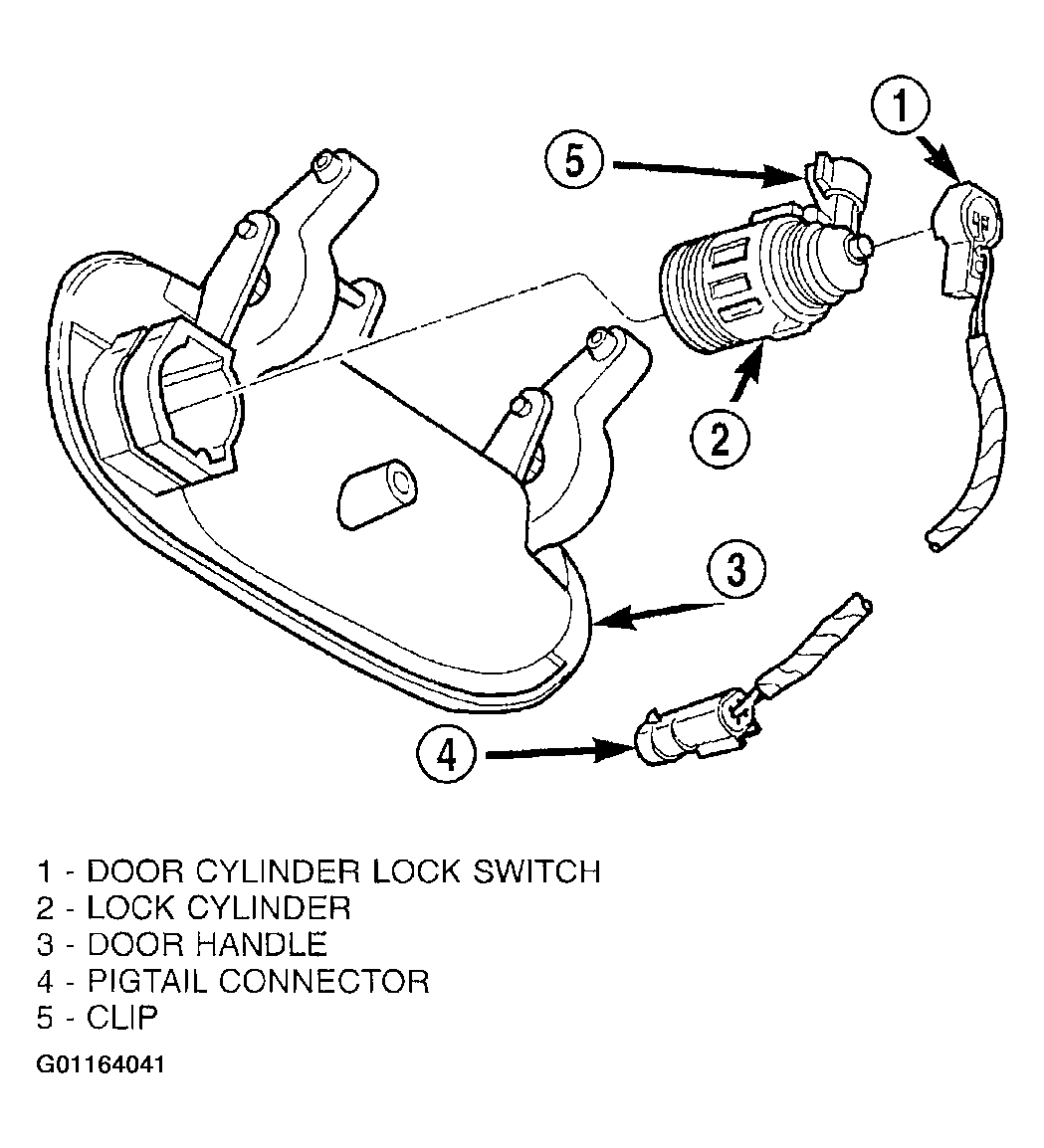

- Connect the wiring clip and pigtail wire connector (Figure ).
- Refer to DOORS - FRONT for Door Trim and Water Shield Installation.
- Connect the negative battery cable remote terminal onto the remoter battery post.
