Remote Keyless Entry
WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

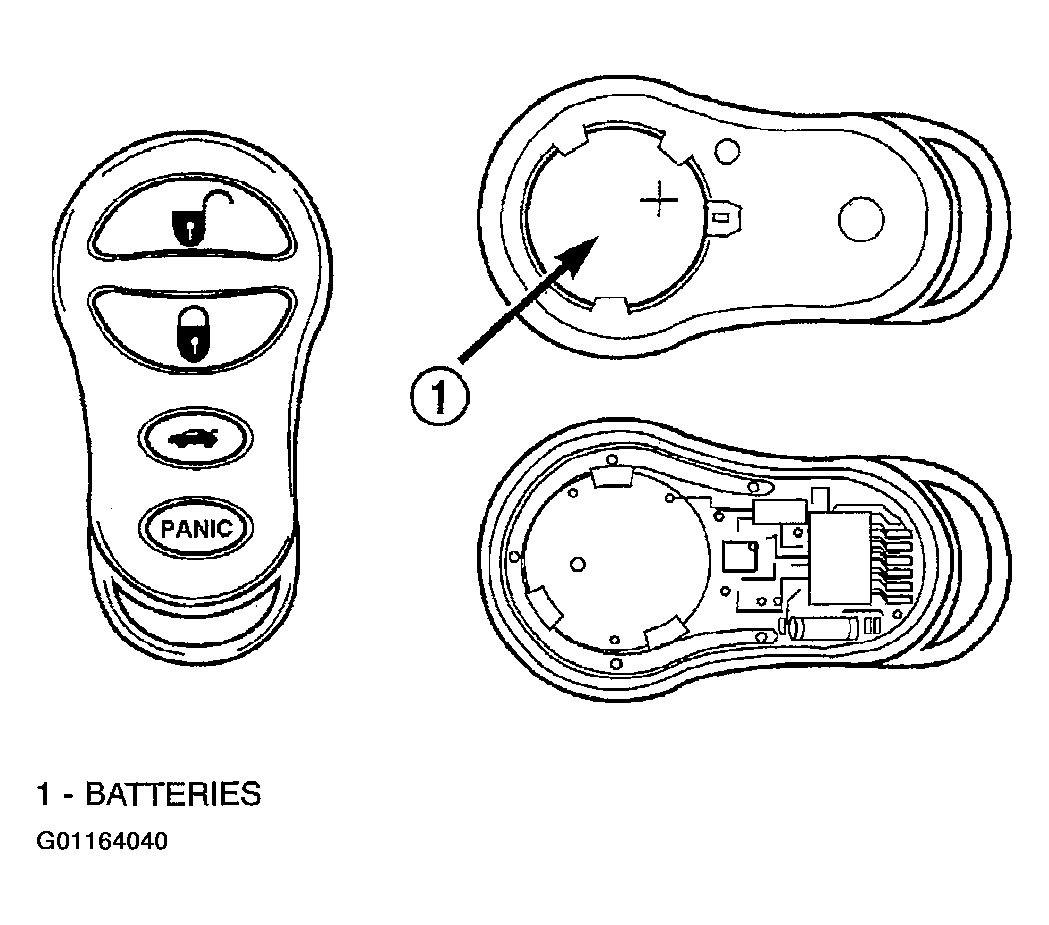

The system allows locking and unlocking of vehicle door(s), deck lid release, and panic by remote control using a hand held radio frequency transmitter (Fig 1 ). The vehicle must be in PARK before the trunk lid can be unlatched with the transmitter.
The receiver may receive signals from up to four transmitters, Each transmitter has its own code, and the code is programmed and stored into receiver memory. If a transmitter is replaced or additional transmitters are added, the codes for all units have to be reprogrammed into the receiver memory. If a receiver module is replaced, the transmitter codes must be stored in to the receiver memory. If a receive module is replaced, the transmitter codes must be stored in the new receiver memory.
