Assembly - Lower Control Arm (Pivot Bushing)

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

Position the lower control arm so it is supported by Receiver, Special Tool MB-990799, as shown (Fig 1 ).
Place new pivot bushing in lower control arm. so it is square with the bushing hole. Position Installer, Special Tool 6644-1, on top of pivot bushing, with pivot bushing setting in recessed area of Installer (Fig 1 ).

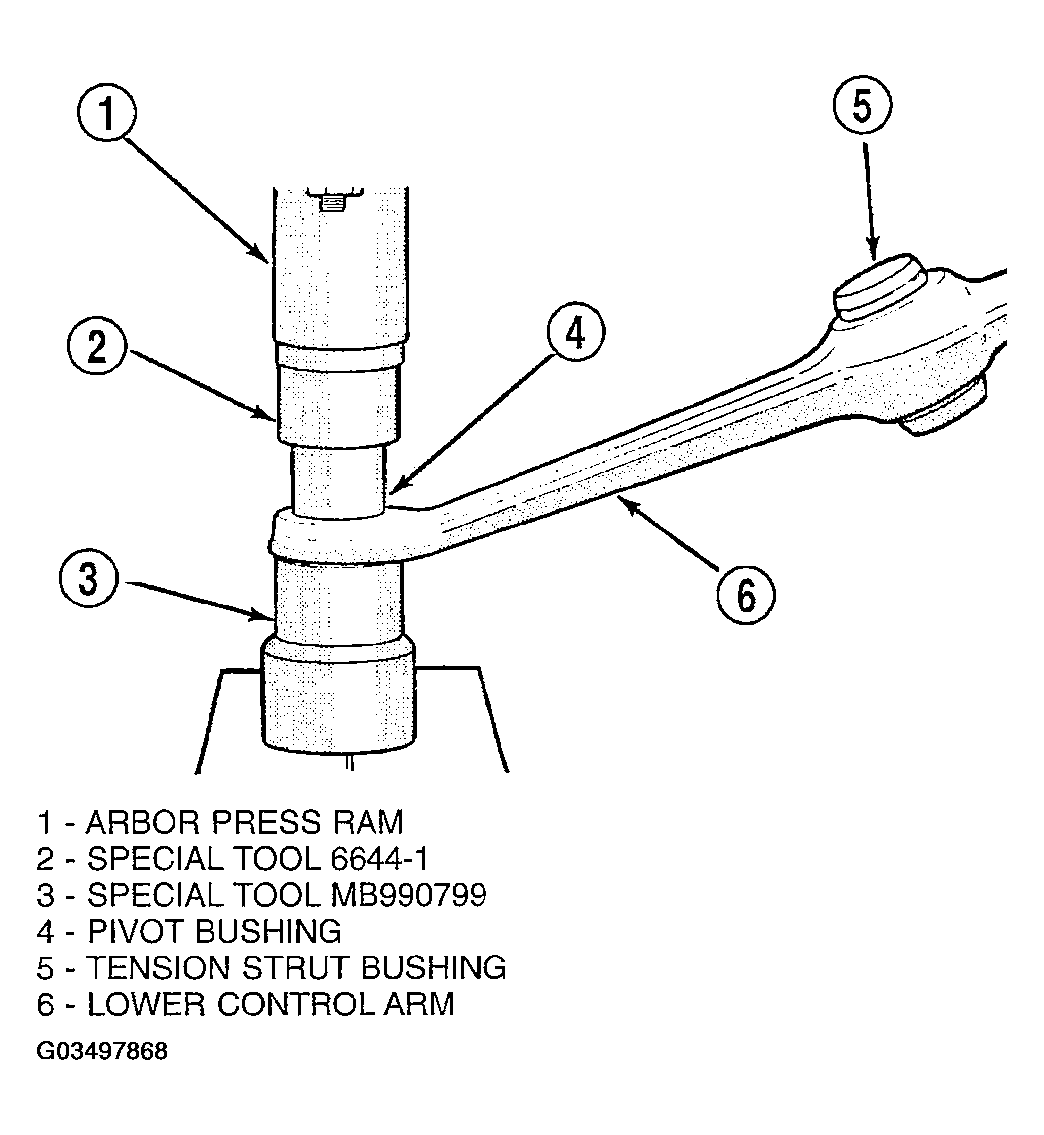

Fig 1: Installing Lower Control Arm Pivot Bushing
Courtesy of DAIMLERCHRYSLER CORP.

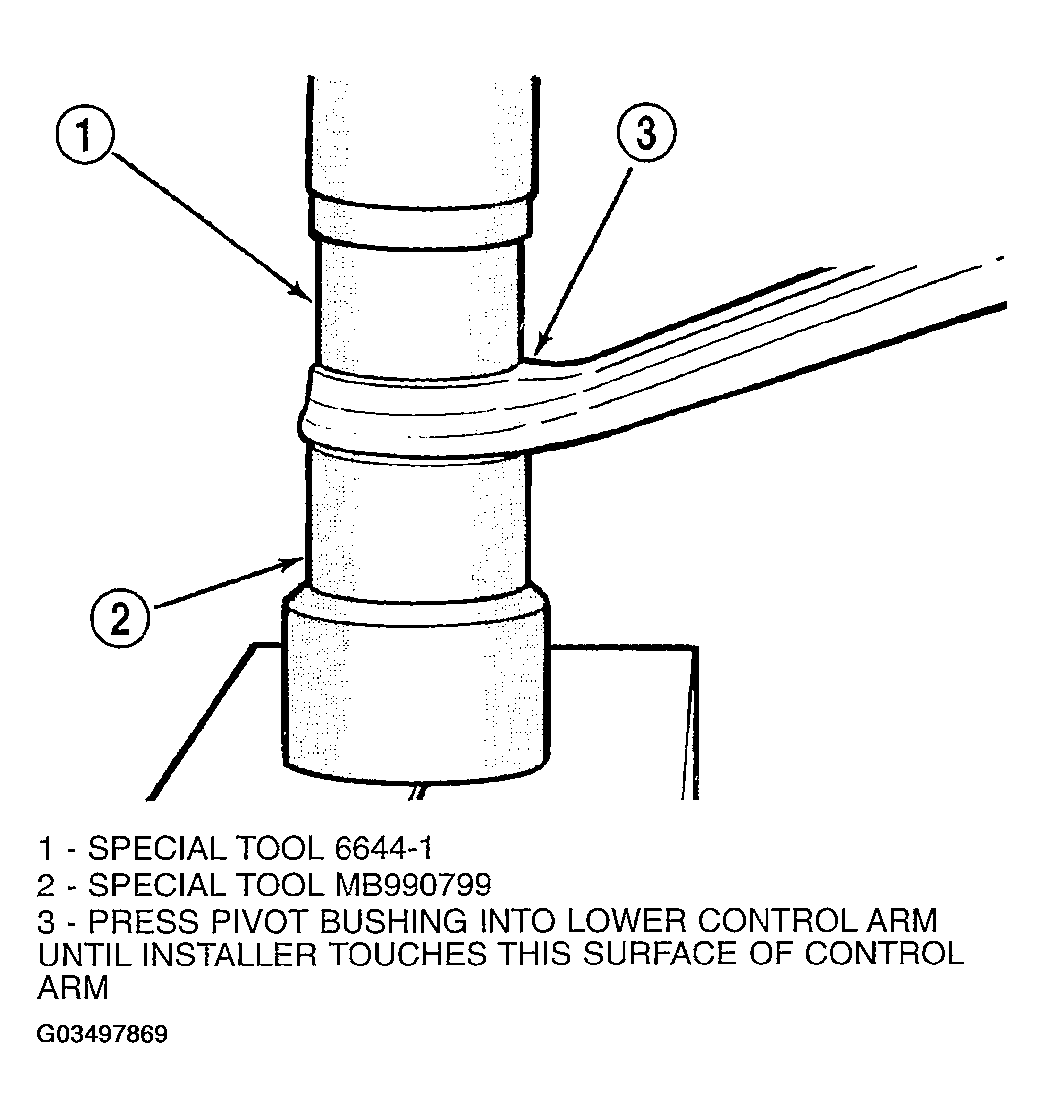

Press pivot bushing into lower control arm until Installer, Special Tool 6644-1, squarely bottoms against surface of lower control arm (Figure ). At that point, the bushing is installed to the correct position in control arm.
Attach tension strut to lower control arm and install on car as an assembly. See INSTALLATION - LOWER CONTROL ARM .
