DECKLID/Trunk Lamp: Removal

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open hood, disconnect and isolate the battery negative cable.
  2. Remove lens from lamp from the rear shelf (Fig 1).

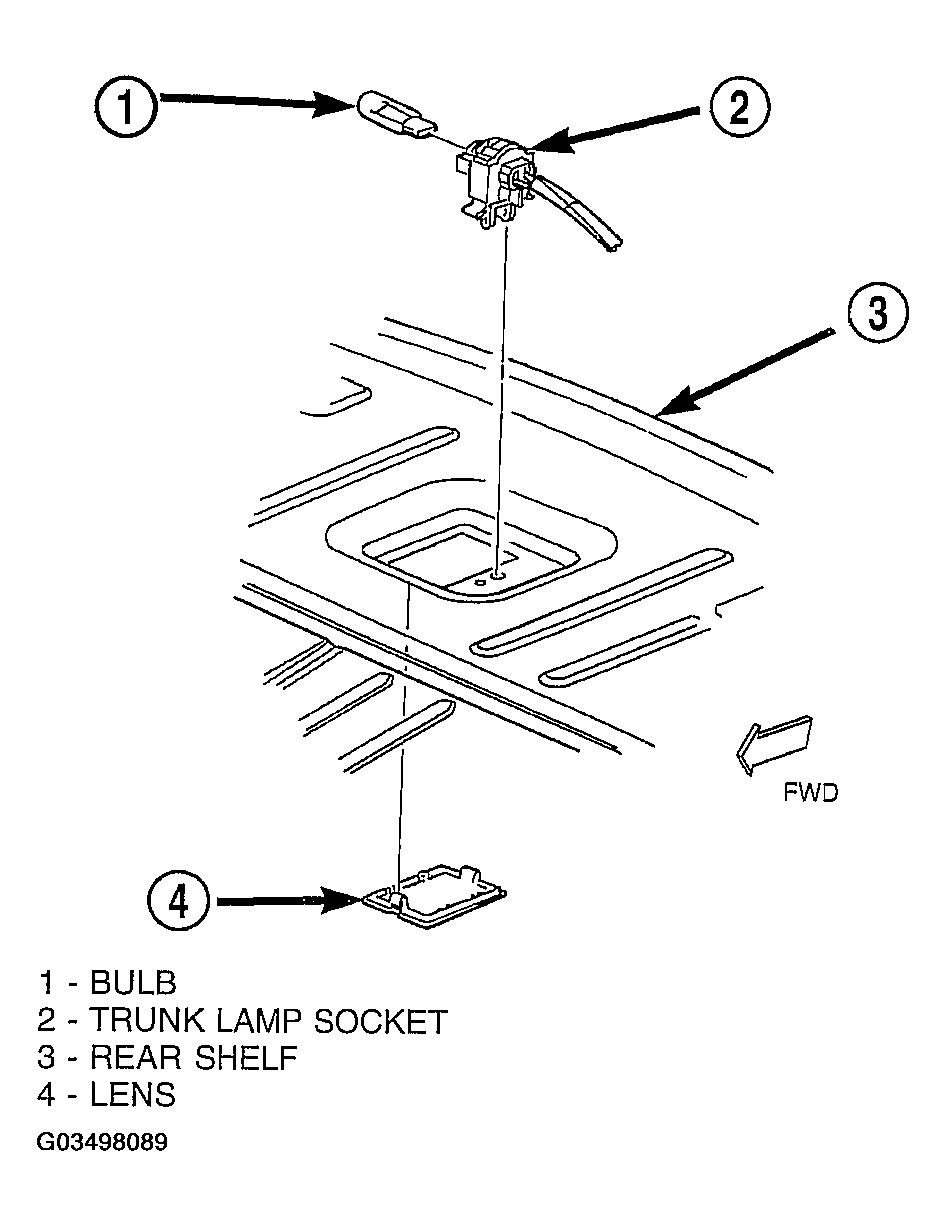

    Fig 1: Trunk Lamp Bulb
    G03498089Courtesy of DAIMLERCHRYSLER CORP.
  3. Pull bulb from socket.
