Washer Fluid Level Switch - Intrepid: Installation
WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Use a new mounting grommet when installing a new sensor assembly.
Assure "flat" of sensor is aligned under the "ridge" of reservoir and that sensor connector is facing down in the fully seated position.
- Install new rubber grommet into reservoir.

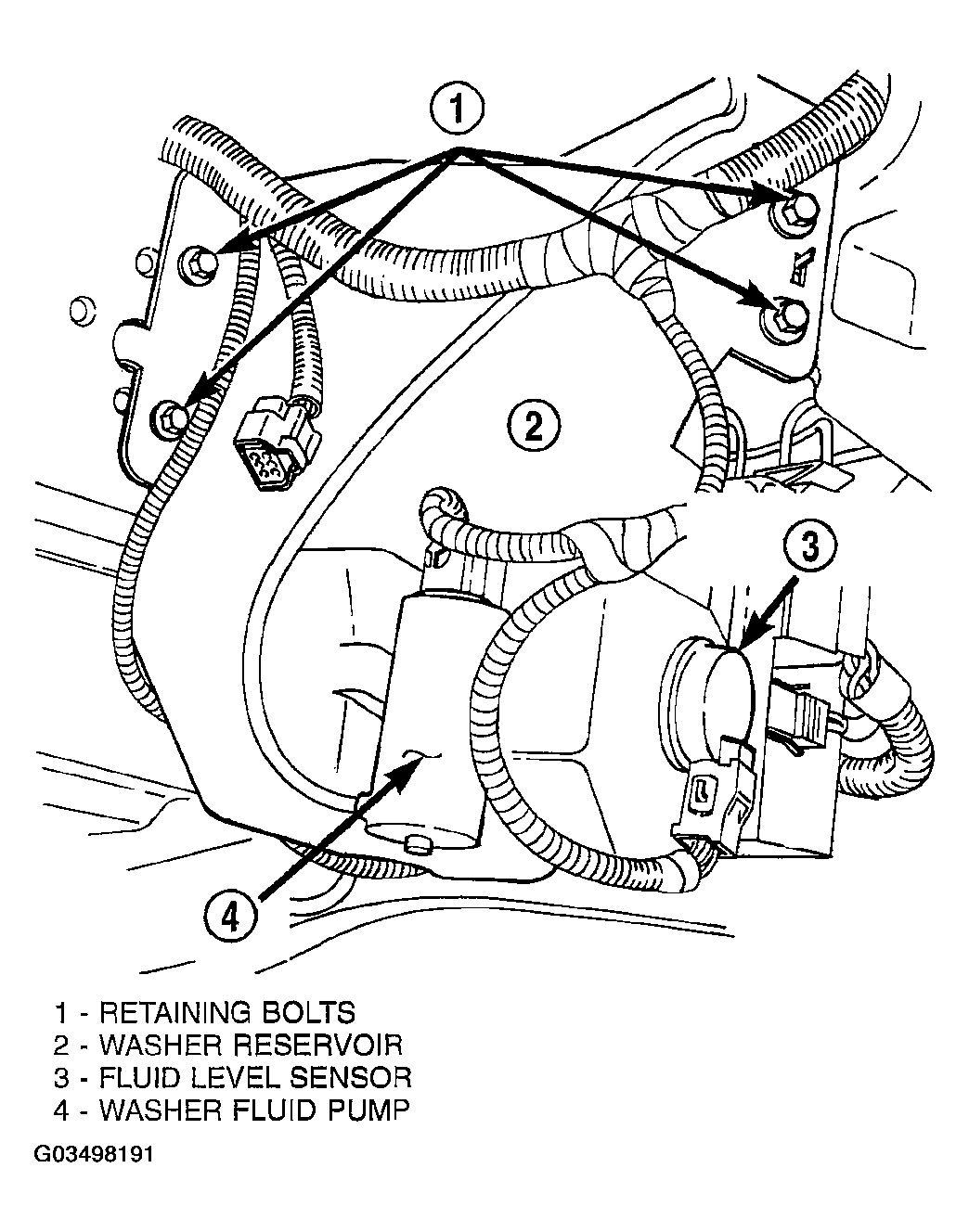

- Carefully install sensor into reservoir and grommet. Care must be taken not to puncture reservoir or grommet (Figure ).
- Connect the wire connector to the reservoir fluid level sensor.
- Install the Washer Reservoir. Refer to WASHER RESERVOIR
- Connect the negative battery cable remote terminal to the remote battery post.
