Inside Mirror/Reading Lamp Assembly Replacement

REMOVAL

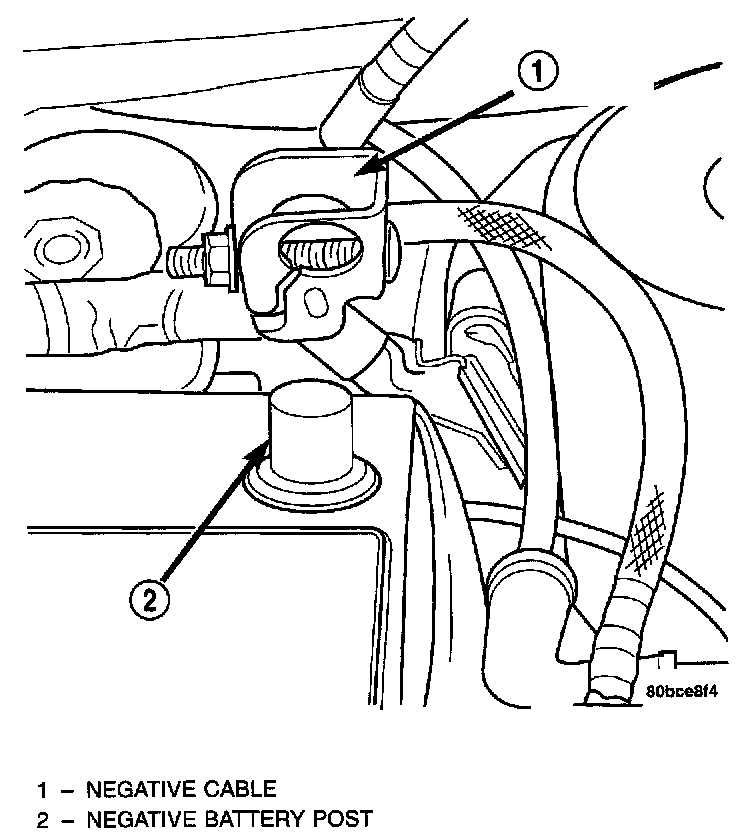

Battery Negative Cable Remove/Install:

1. Disconnect and isolate the battery negative cable.
2. Disconnect wiring connector.

Mirror/Reading Lamps:

3. Loosen mirror set screw.
4. Lift mirror from mounting button.

INSTALLATION
For installation, reverse the above procedure. Ensure the mirror is fully locked into place.
