Connector Views

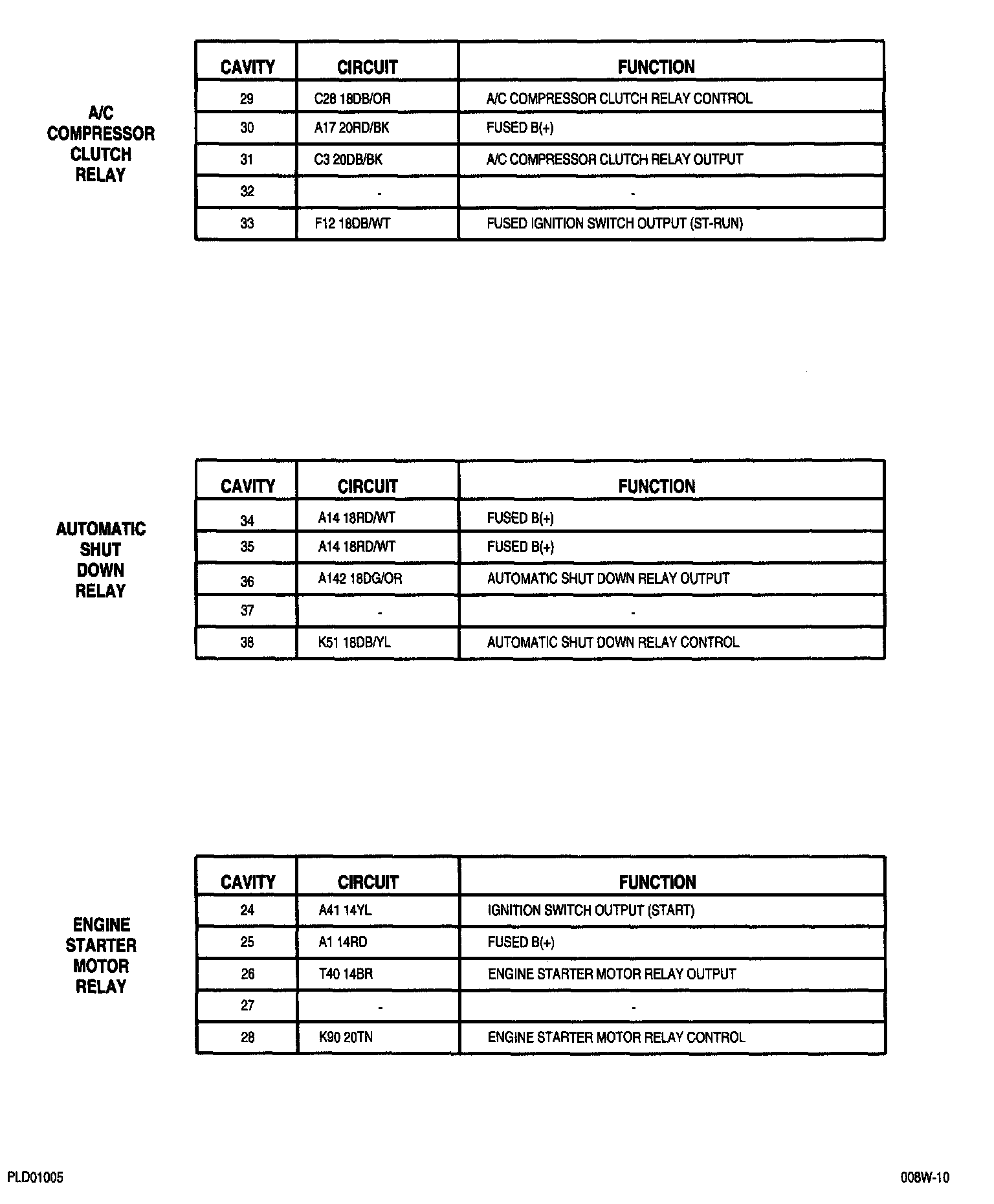

Power Distribution 8w-10-2:

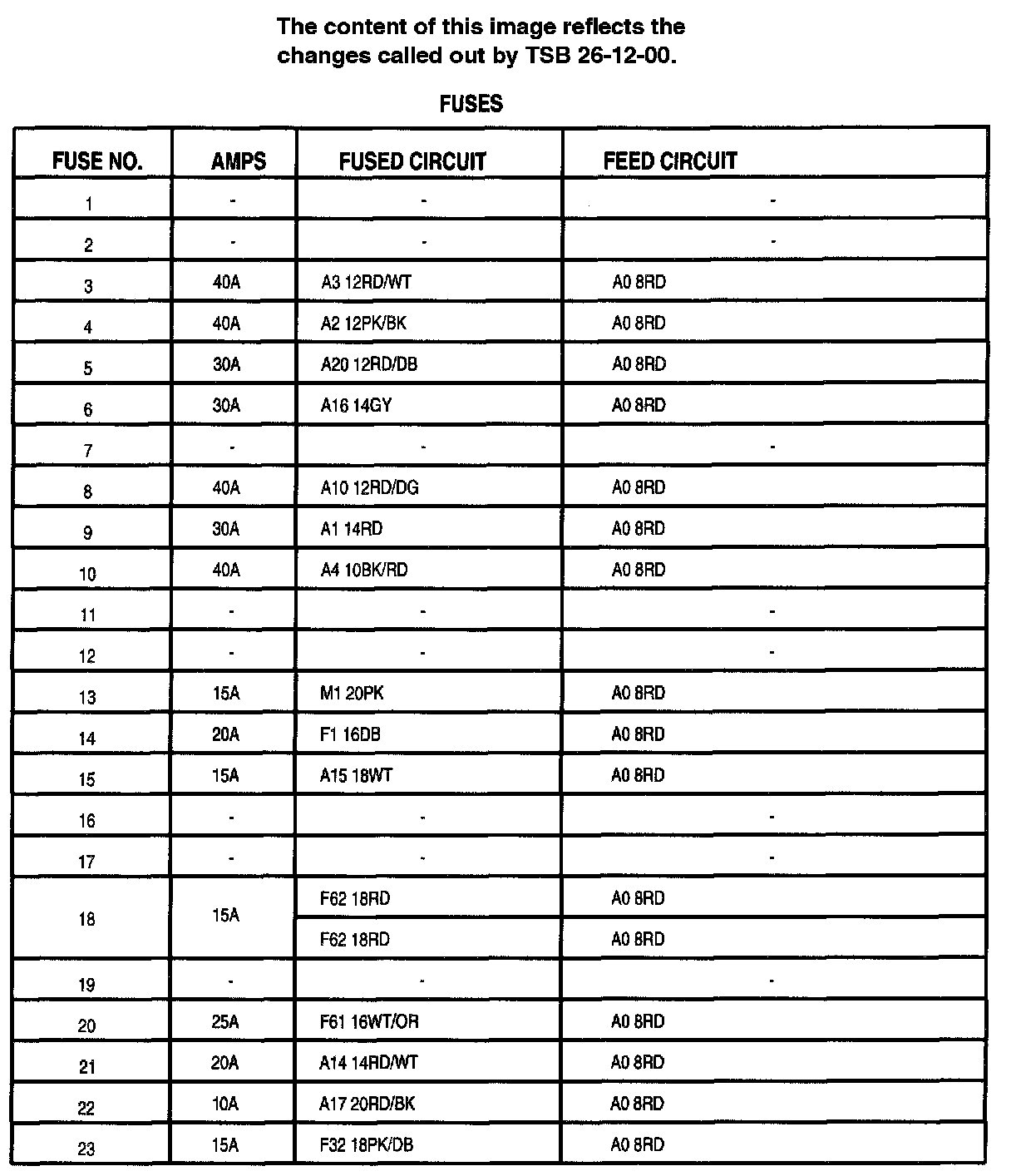

Power Distribution 8w-10-3:

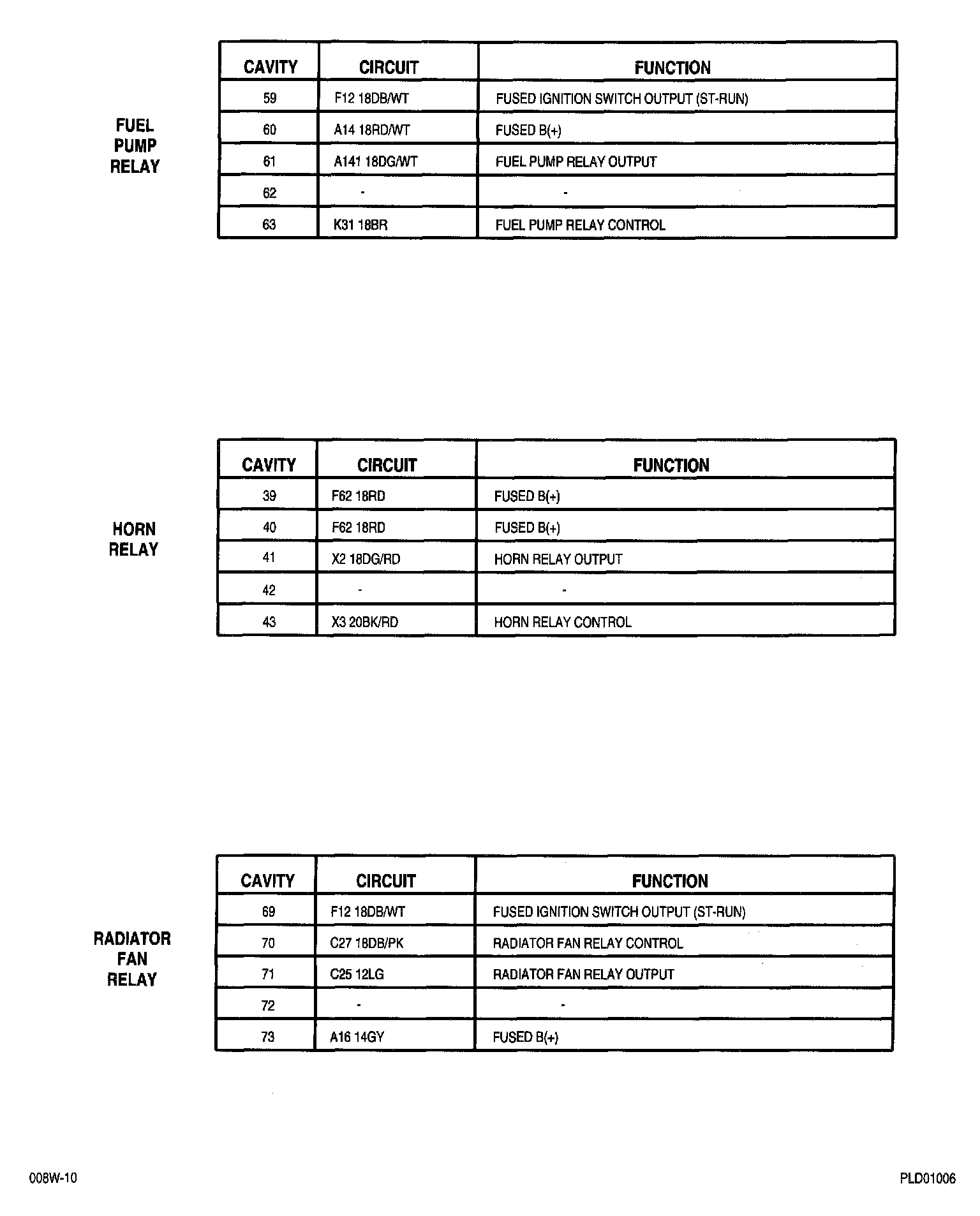

Power Distribution 8w-10-4:




Power Distribution 8w-10-5:




Power Distribution 8w-10-6:
