Checking the Fuel Delivery System

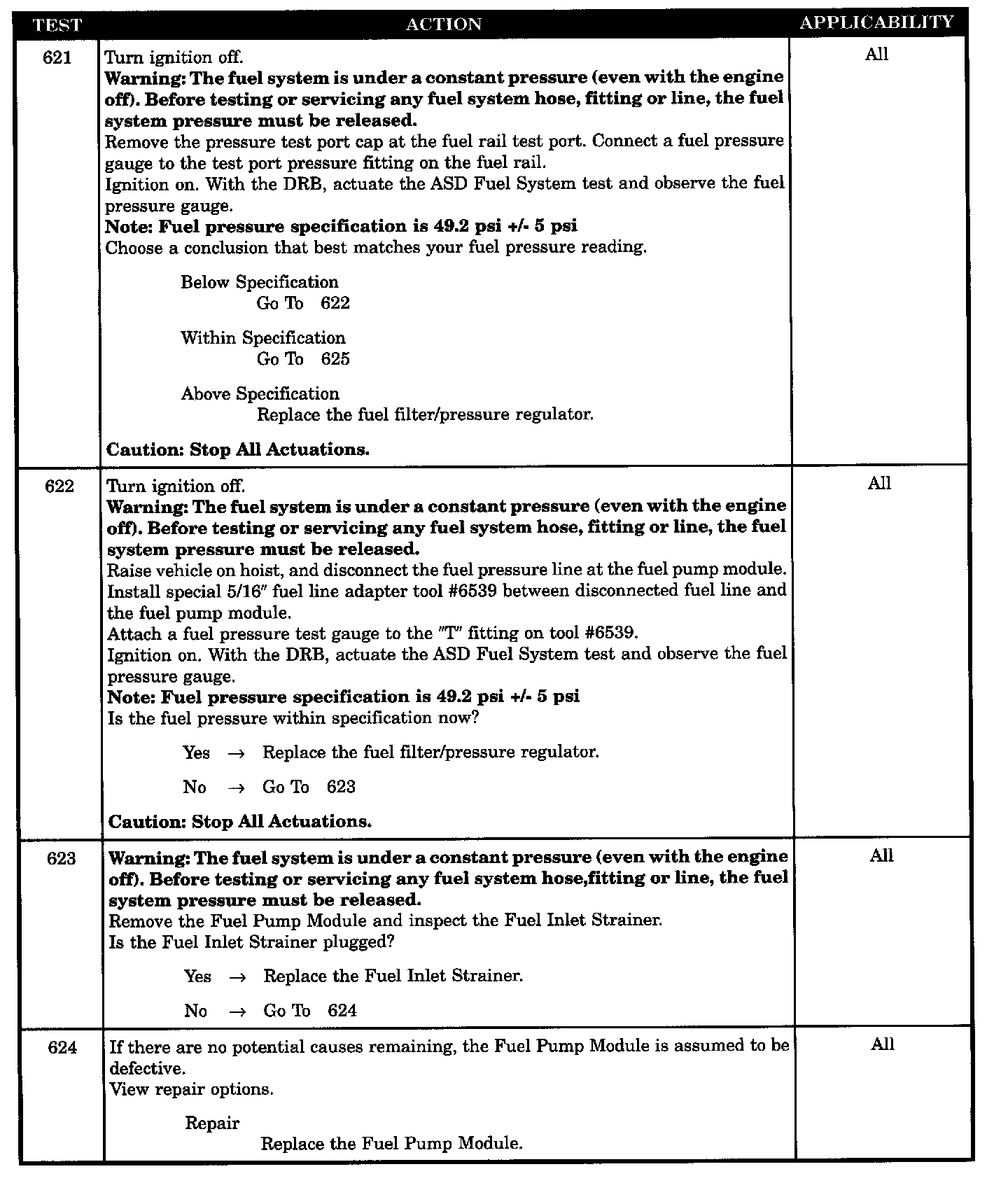

Tests 621 - 624:

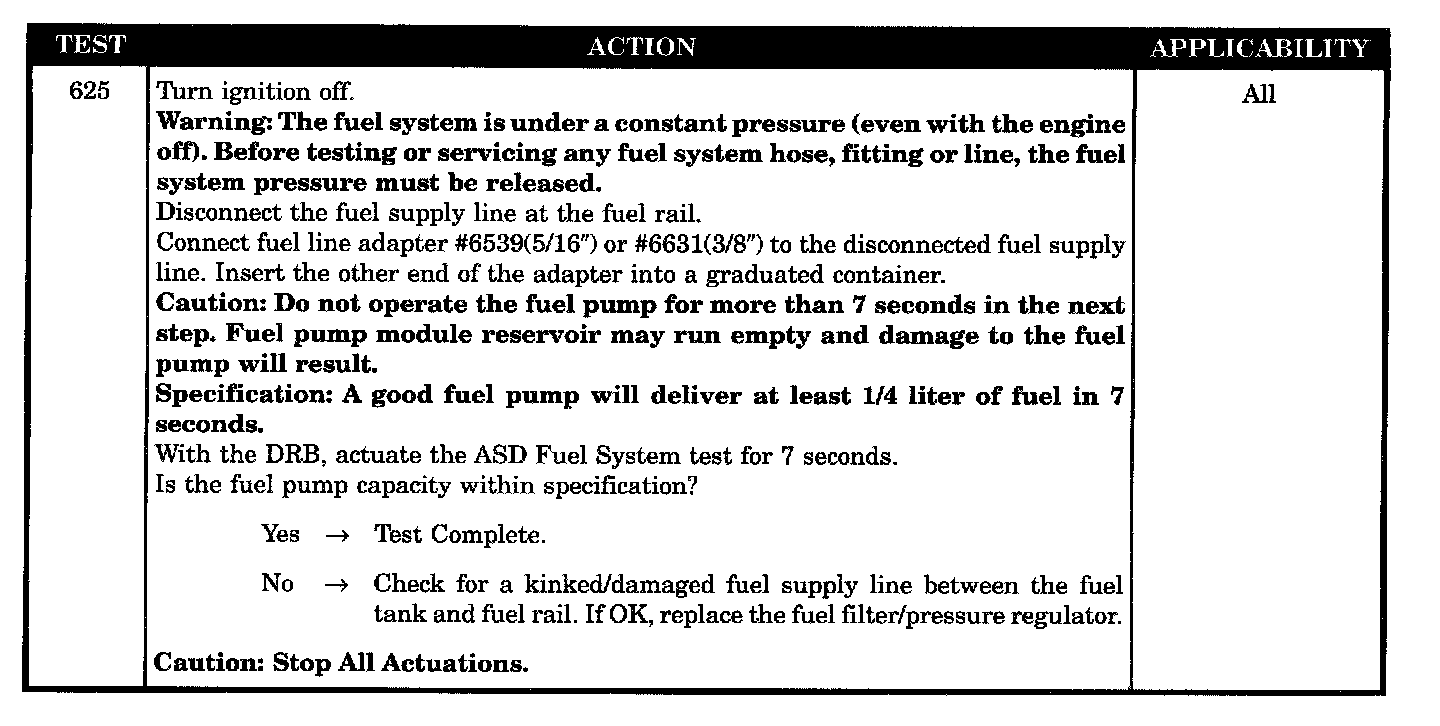

Test 625:





SYMPTOM
CHECKING FUEL DELIVERY

POSSIBLE CAUSES
- Fuel pump module defective
- Fuel inlet strainer plugged
- Fuel filter/pressure regulator defective (high)
- Fuel filter/pressure regulator defective (low)
- Fuel pump capacity (volume) out of specs
