Base Brake System

NOTE: There are three diagnosis charts following that cover the RED BRAKE WARNING LAMP, BRAKE NOISE and OTHER BRAKE CONDITIONS.





RED BRAKE WARNING LAMP

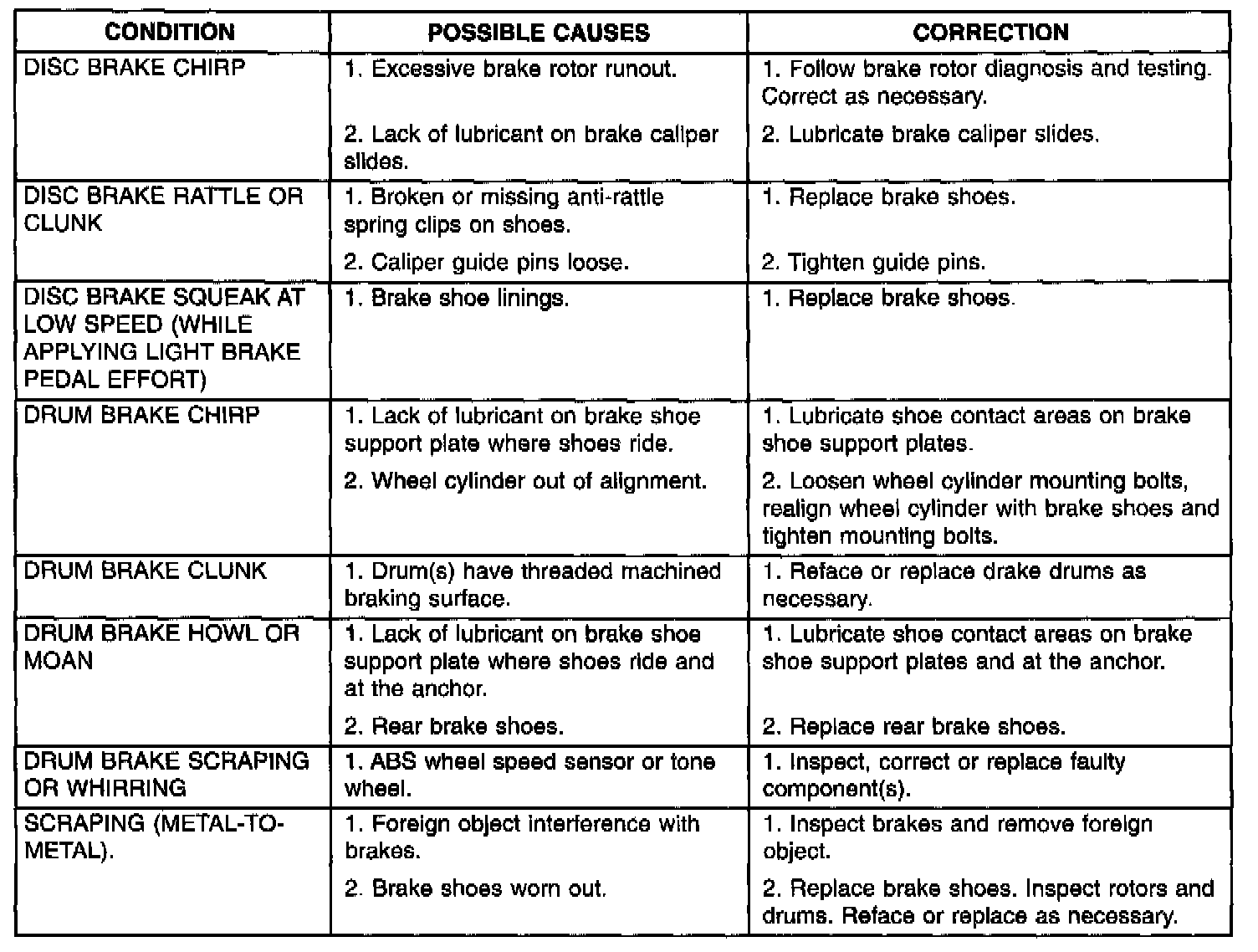

BRAKE NOISE

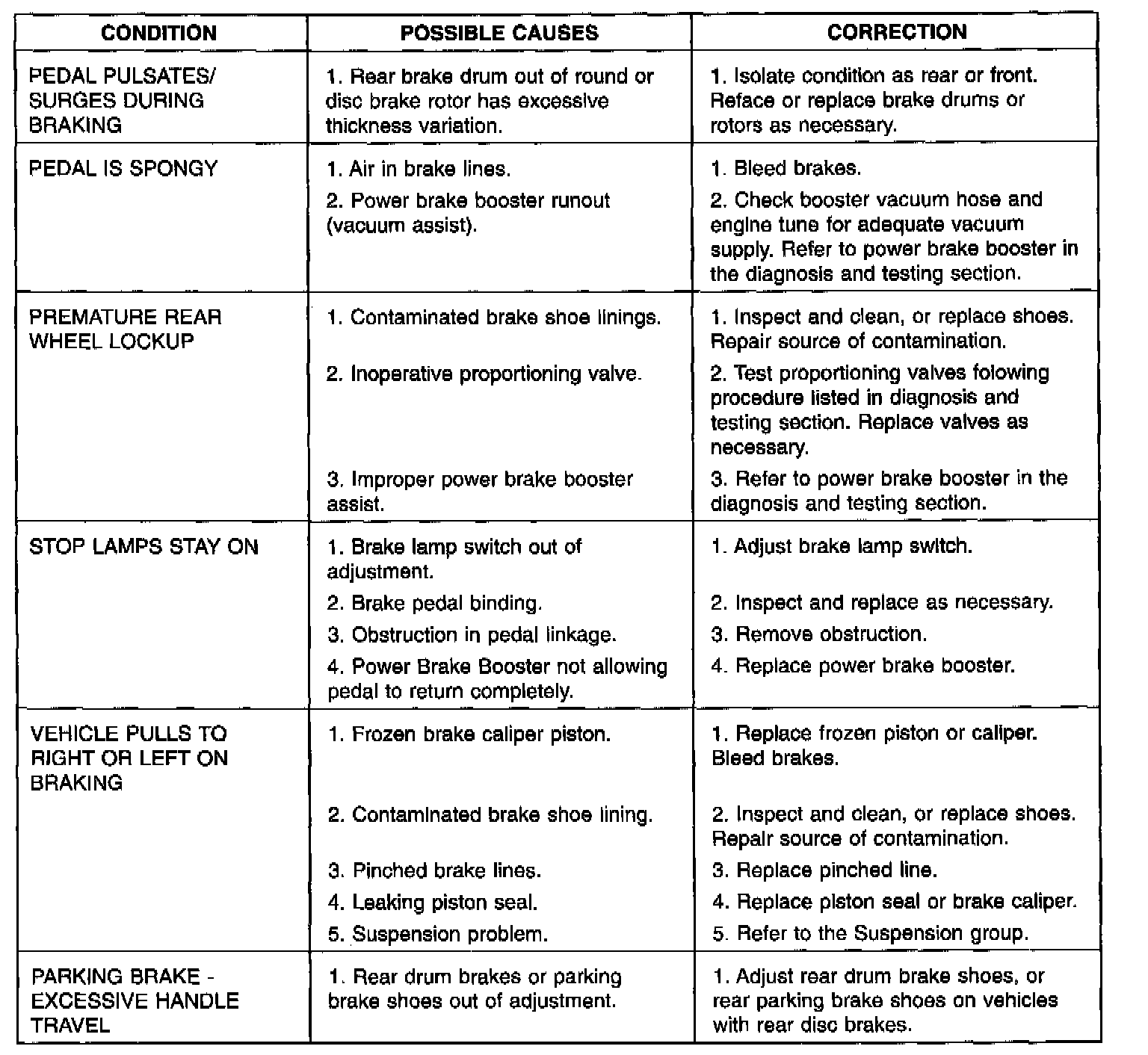

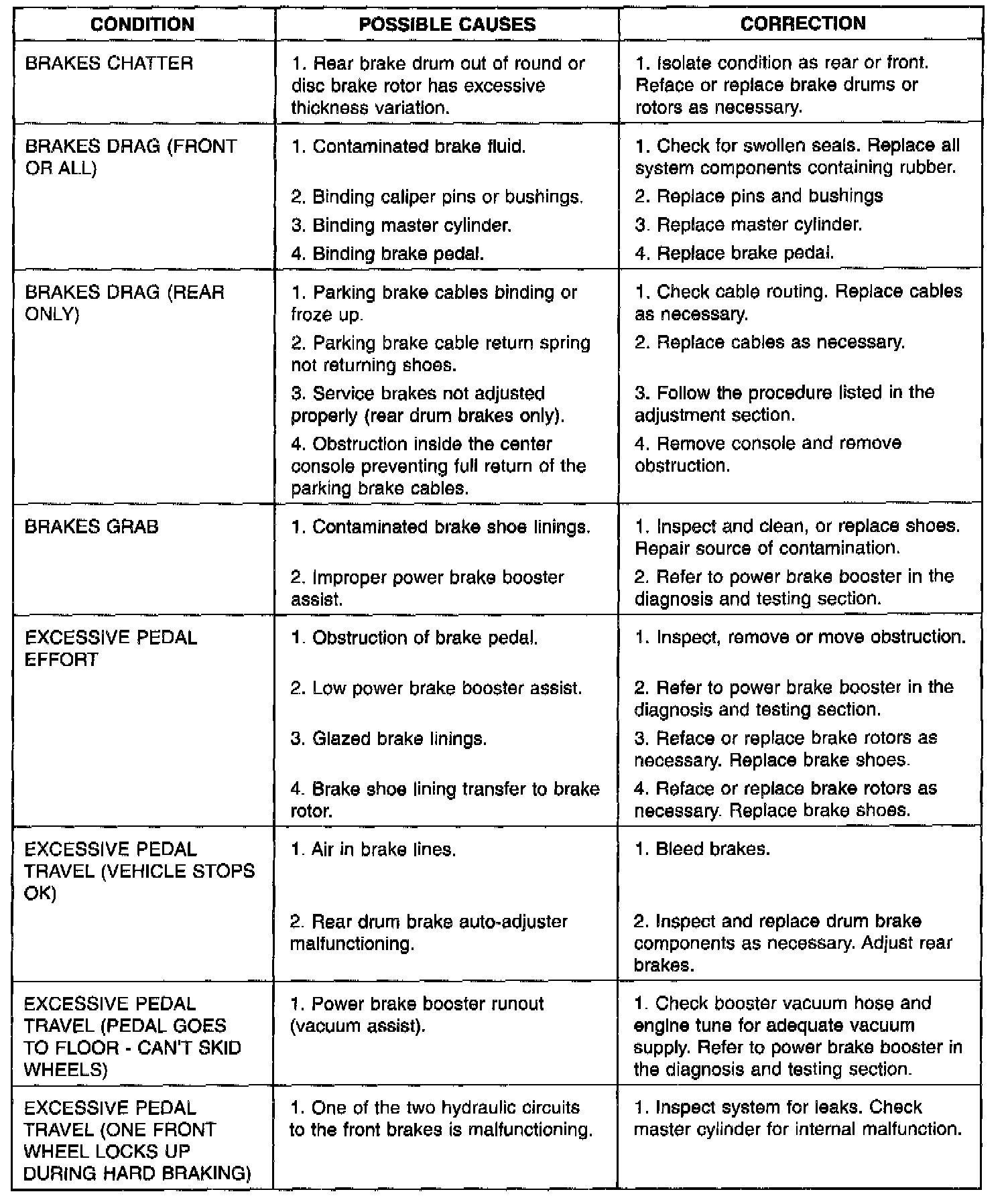

OTHER BRAKE CONDITIONS
