Chime Sounds With Seat Belt Fastened

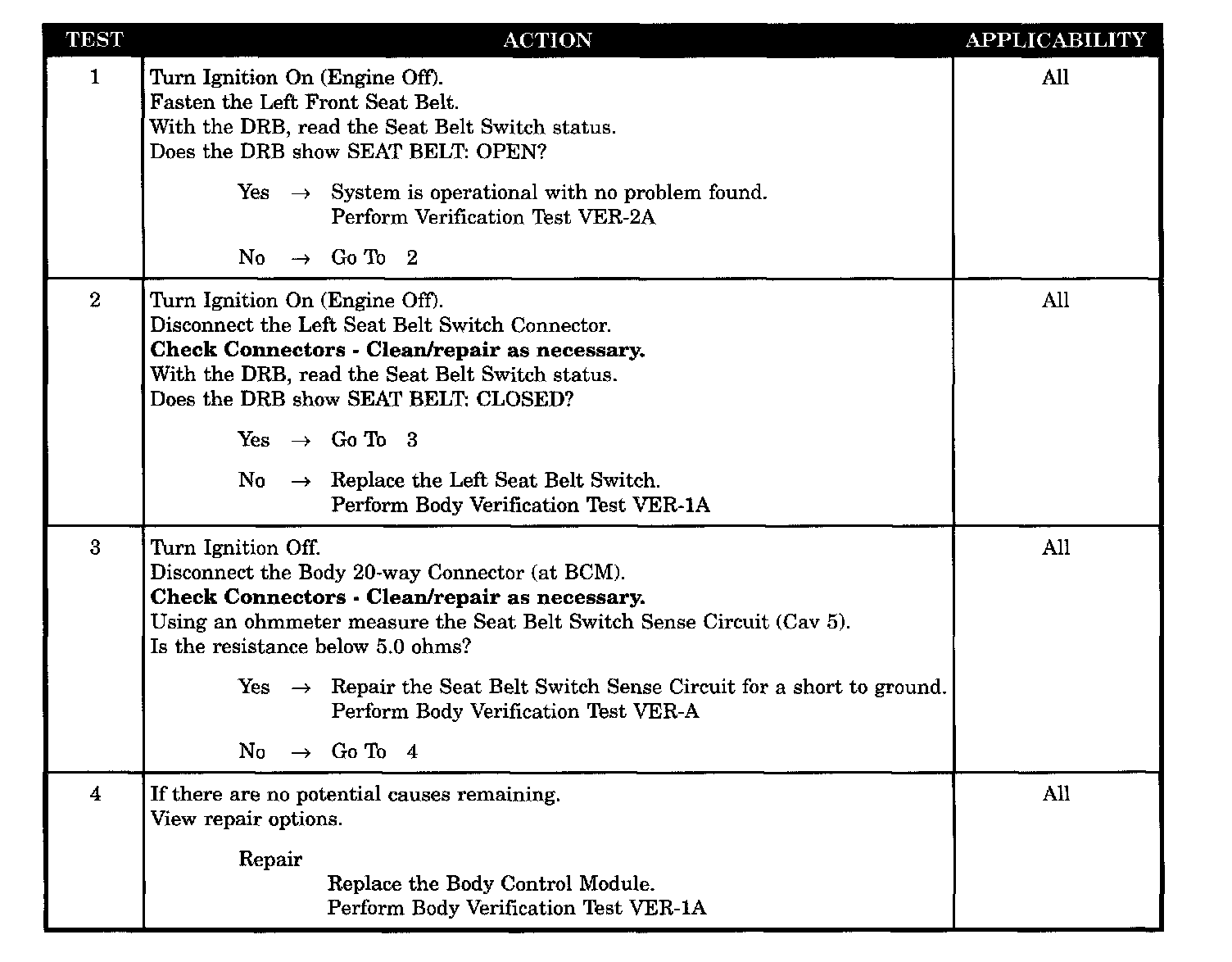

Test 1 - 4:




SYMPTOM
CHIME SOUNDS WITH SEAT BELT FASTENED

POSSIBLE CAUSES
- Seat belt fastened - BCM status check
- Seat belt switch sense circuit shorted to ground
- Left seat belt switch shorted
- BCM - seat belt switch fastened default
