Checking Park/Neutral Position Switch

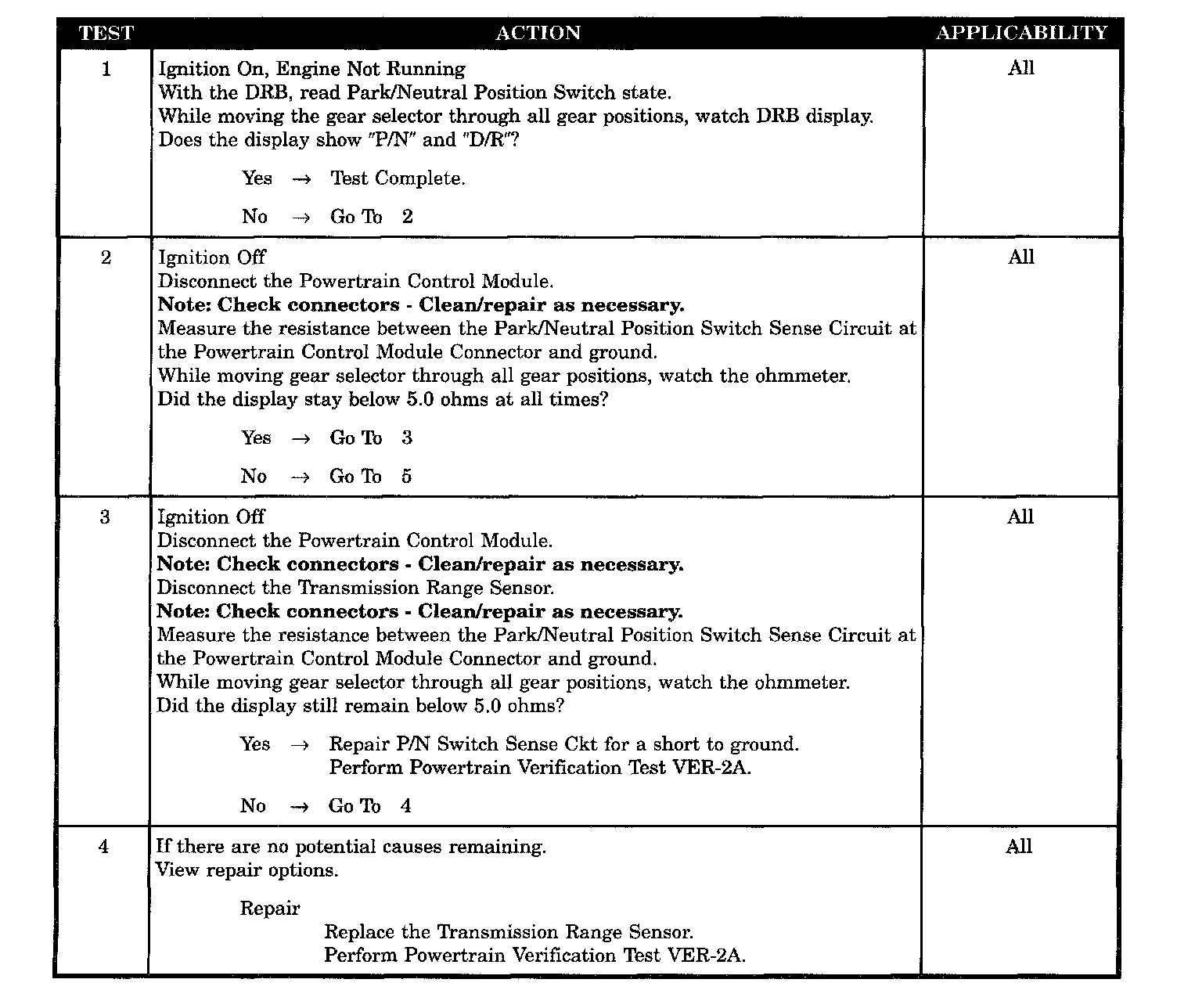

Tests 1 - 4:

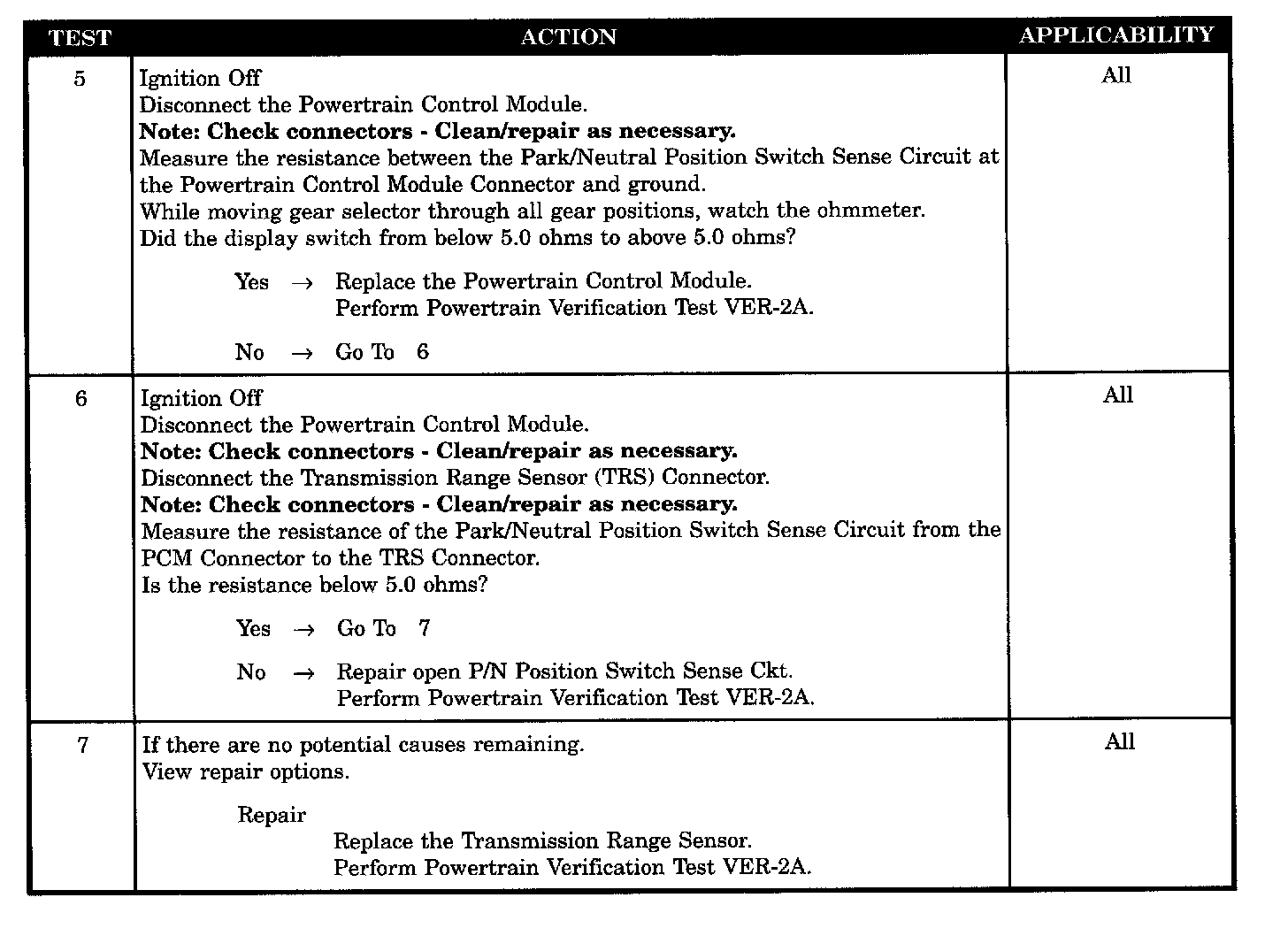

Tests 5 - 7:





SYMPTOM
CHECKING P/N SWITCH

POSSIBLE CAUSES
- Park/Neutral position switch sense circuit open
- Park/Neutral position switch sense circuit shorted to ground
- Transmission Range Sensor defective
- PCM defective
