Transaxle Range (Tr) Sensor
NOTE:
Also may be referred to as park/neutral switch.

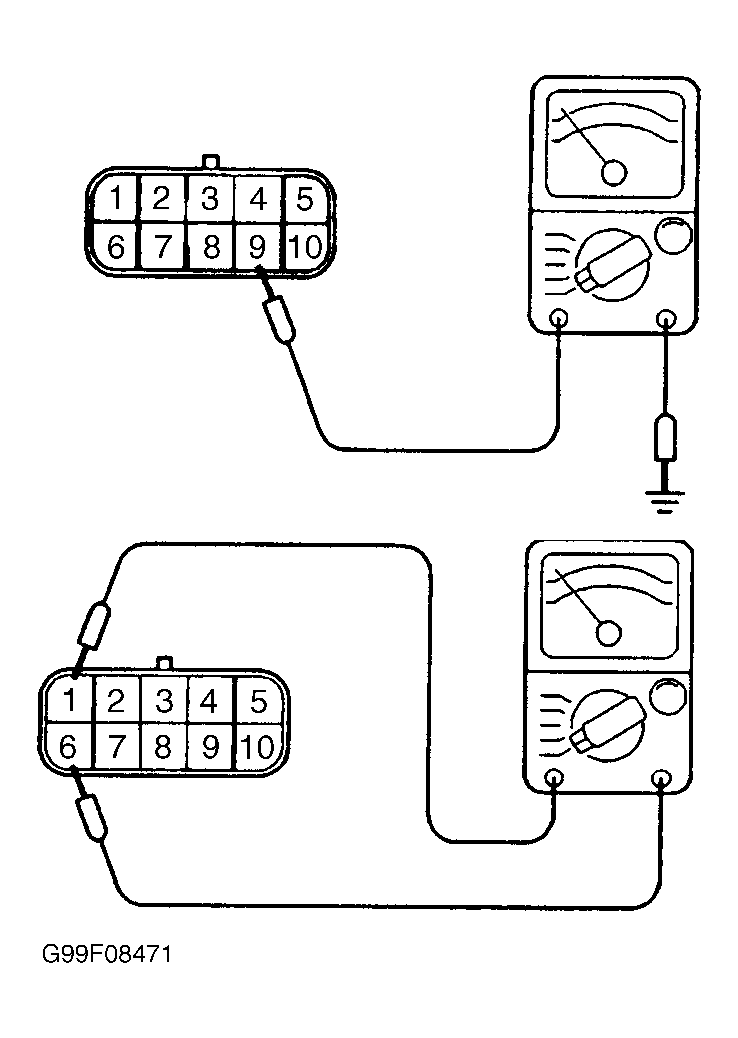

Disconnect TR sensor connector. TR sensor connector is located on top of transaxle. Check for continuity between specified terminals with gearshift lever in specified positions. See TRANSAXLE RANGE (TR) SENSOR CONTINUITY table. See Fig 1 . If continuity is not as specified, replace TR sensor. If TR sensor or wiring circuit failure exists, a DTC will be stored in PCM. See DTC TEST NO. 52: PARK/NEUTRAL SWITCH FAILURE under DIAGNOSTIC TESTS in SELF-DIAGNOSTICS - AVENGER & SEBRING COUPE article.
TRANSAXLE RANGE (TR) SENSOR CONTINUITY
| Gearshift Lever Position | Continuity Between Terminals No. |
|---|---|
| Park | 5 & Ground; 8 & Ground; 9 & Ground; 10 & Ground |
| Reverse | 1 & 6; 9 & Ground |
| Neutral | 5 & Ground; 7 & Ground; 9 & Ground; 10 & Ground |
| Drive | 7 & Ground |
| 2 | 8 & Ground |
| Low | 7 & Ground; 8 & Ground; 9 & Ground |
