Control Module HVAC: Locations

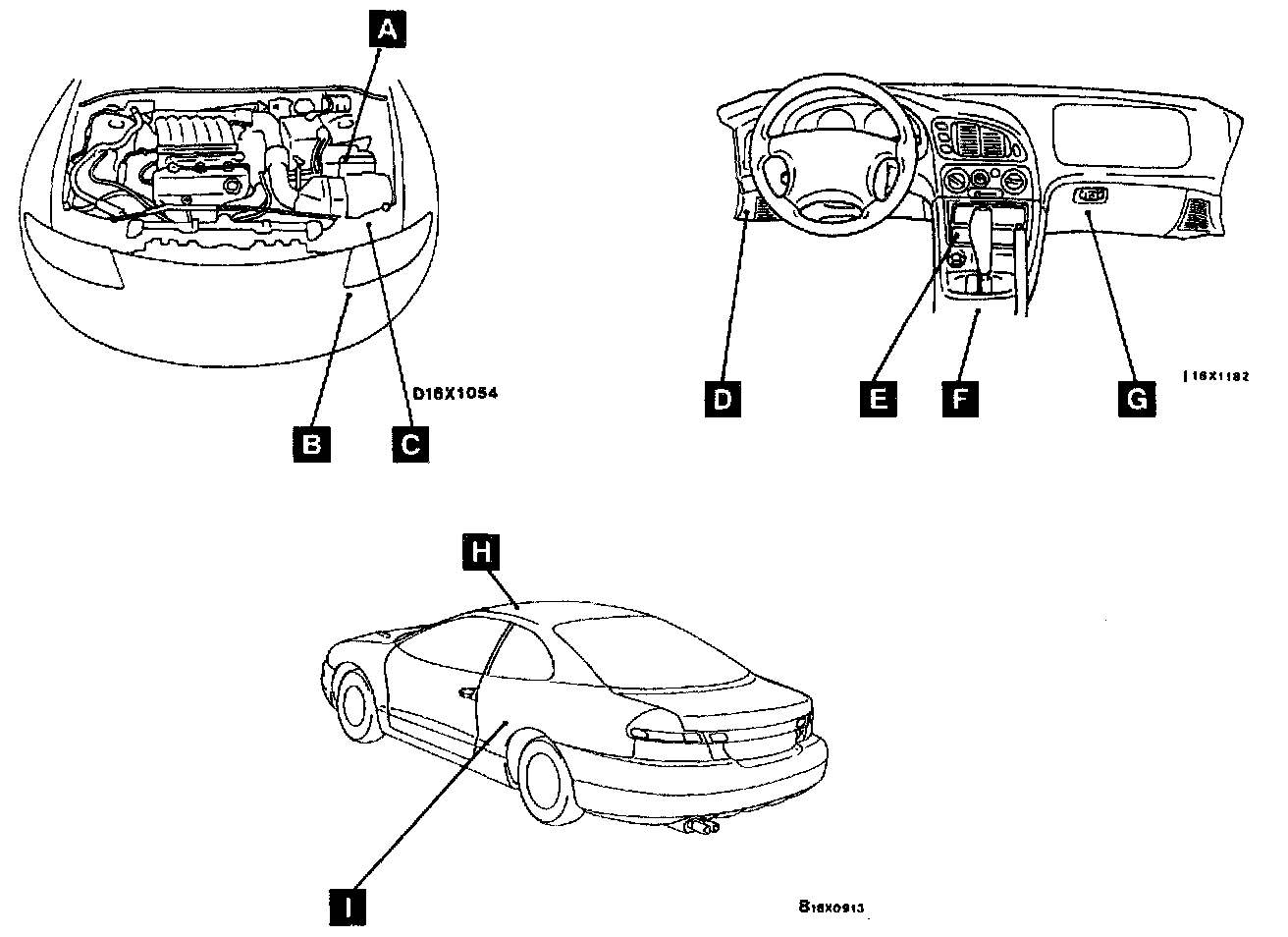

Control Unit Overall Views:

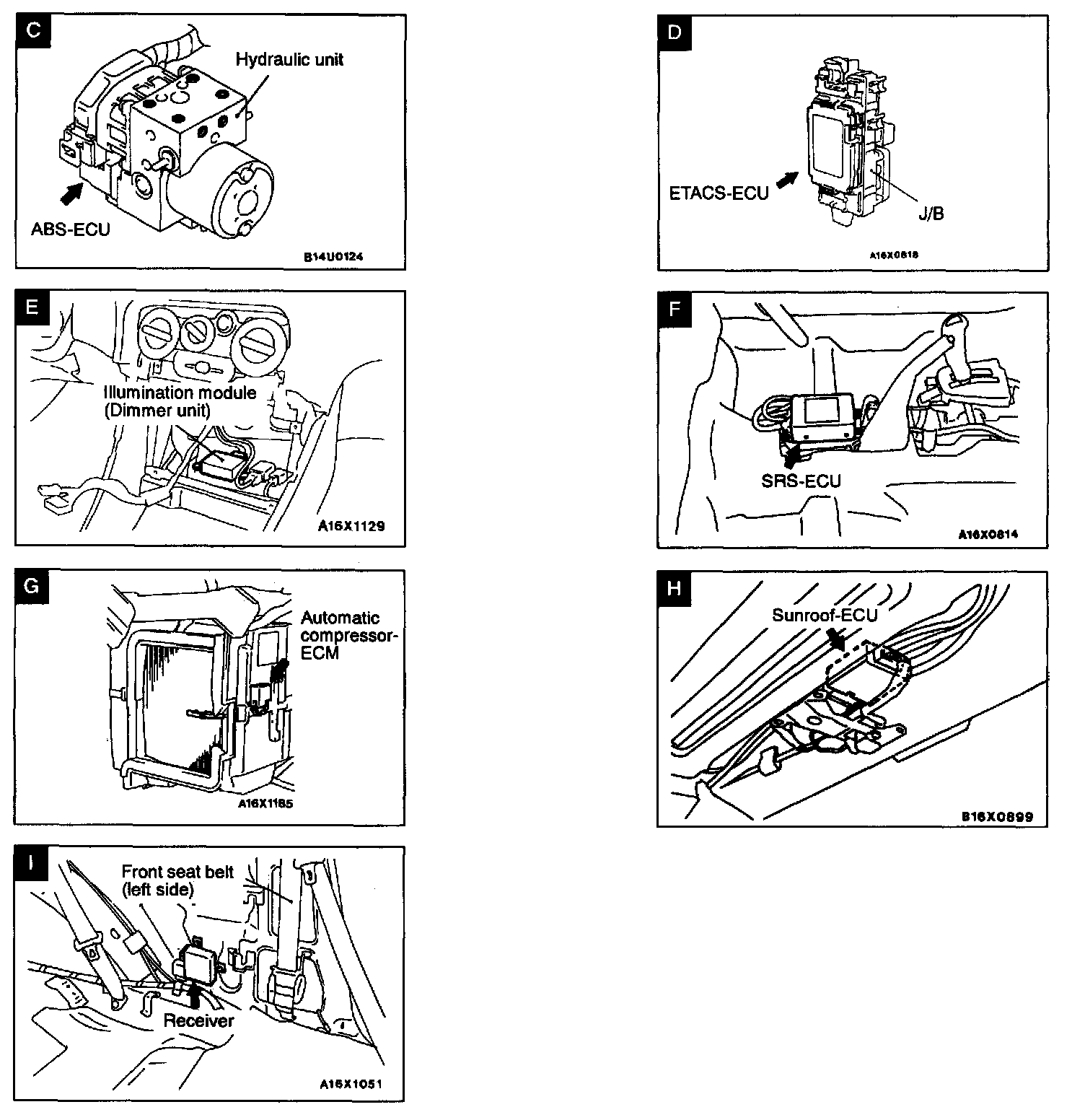

Control Unit Location Views C - I:





Name Symbol

Automatic Compressor-ECM G
