Short-Circuit Check

A circuit consists of the power supply, switch, relay, load, ground, etc. There are various methods to check a circuit including an overall check, voltage check, short-circuit check, and continuity check.

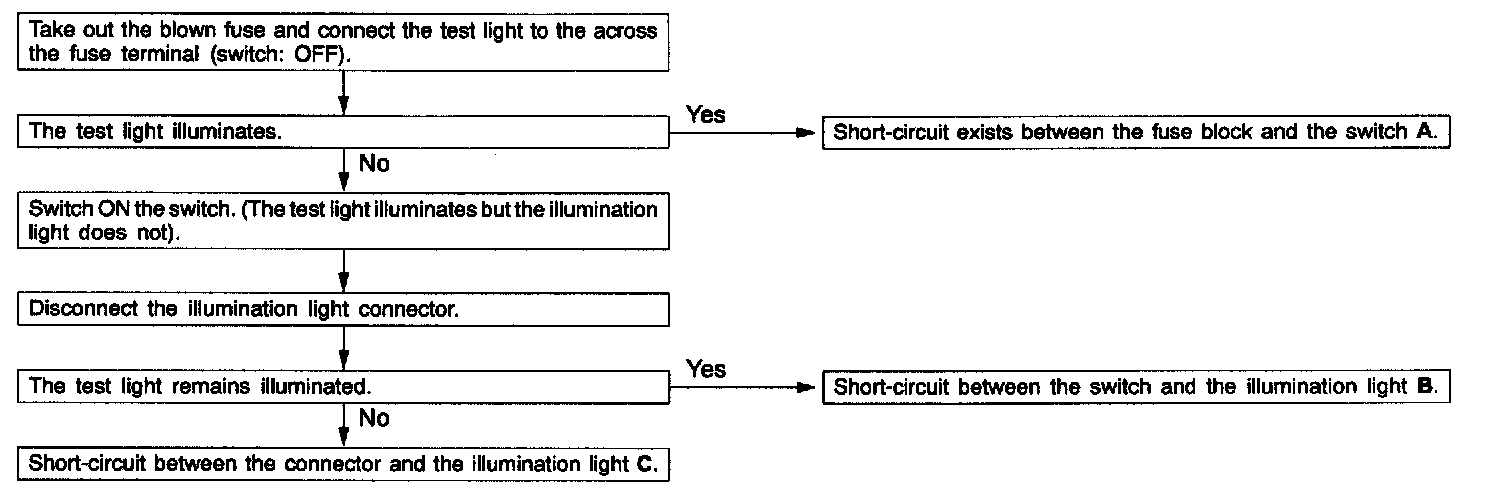

Because the fuse has blown, it is probable that there is a short-circuit. Follow the procedures to narrow down the short-circuit location.

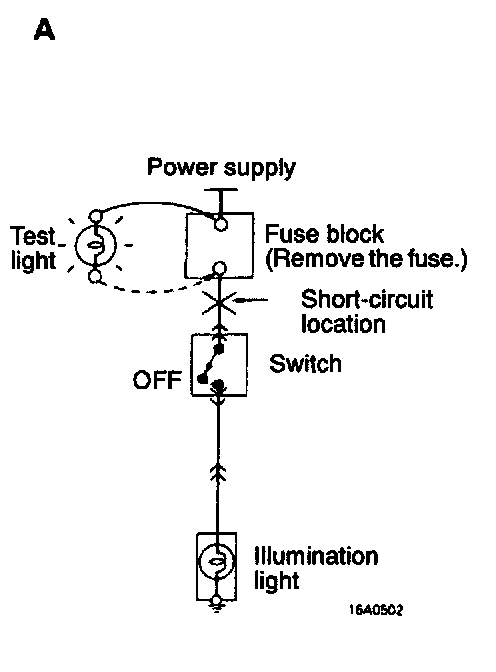

Figure A

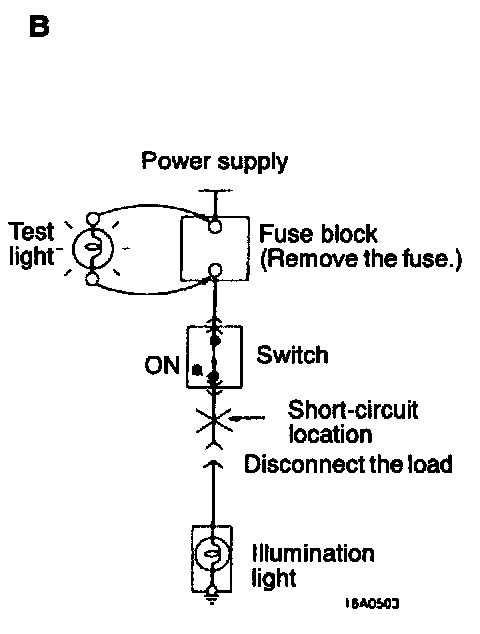

Figure B

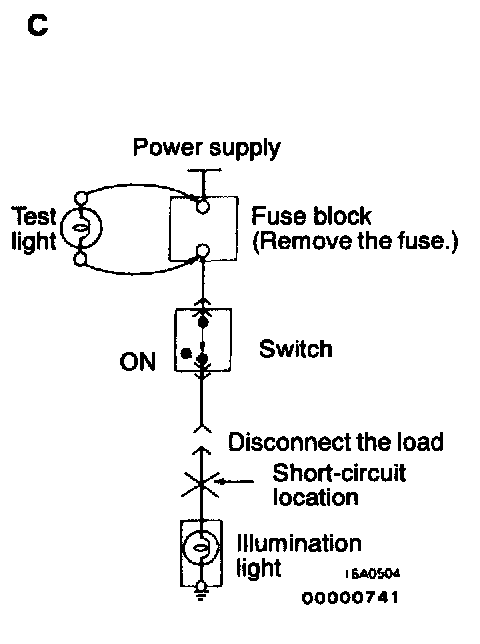

Figure C
