Checking Switches

In a circuit diagram, a switch is represented by a symbol and in the idle state.

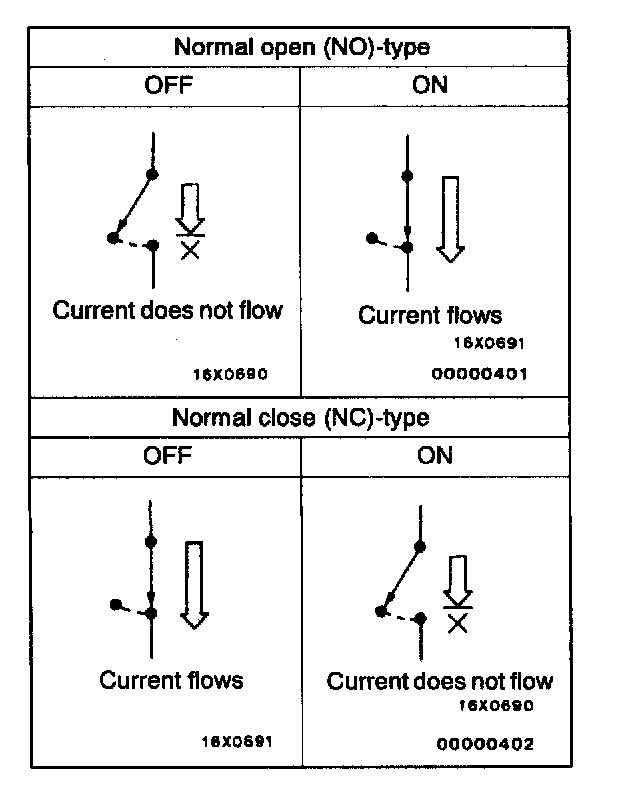

1. Normal open or normal closed switch
Switches are classified into those which make the circuit open and those which make the circuit closed when off.




2. Switch connection

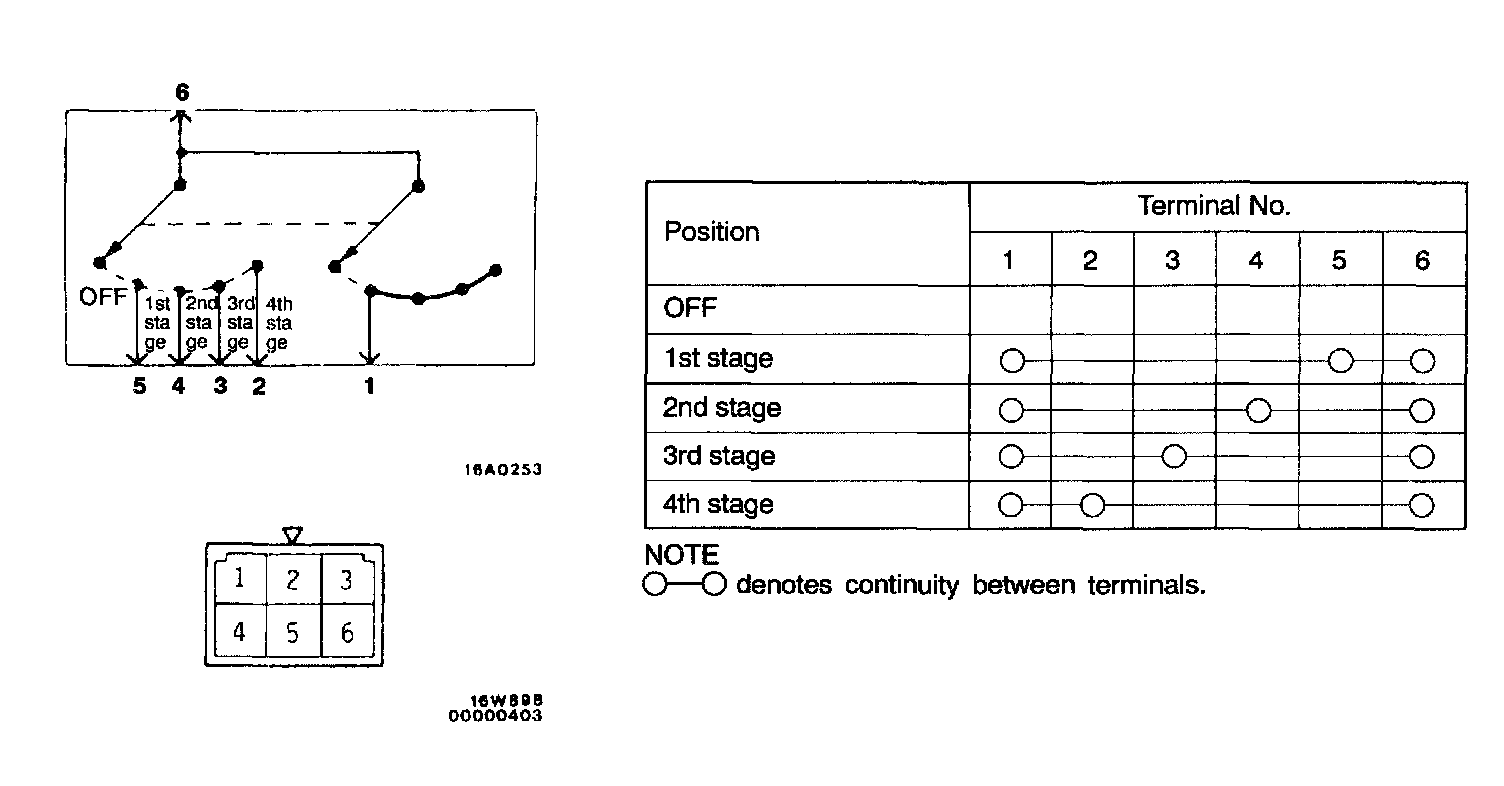

This figure illustrates a complex switch. The continuity between terminals at each position is as indicated in the table below.
