Electrical - Wiring Schematic Revisions

NUMBER: 26-02-00

GROUP: Miscellaneous

DATE: February, 2000

REVISIONS ARE HIGHLIGHTED WITH BLACK BARS IN THE MARGIN

Models:
2000 Caravan, Voyager, Town & Country Service Manual - Publication Number 81-370-0005

DESCRIPTION OF CHANGES

Revisions to the wiring schematics

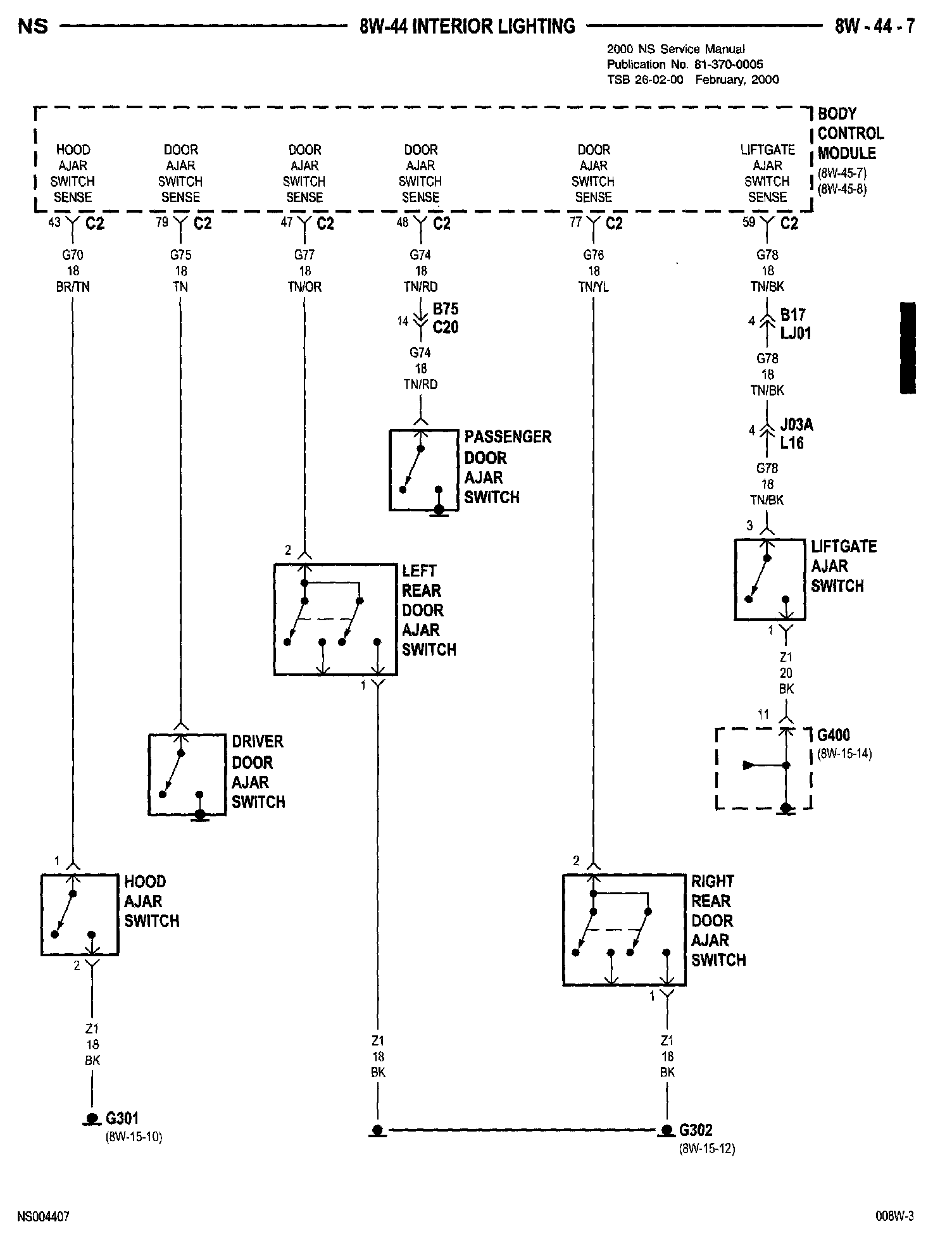

8W-44-7

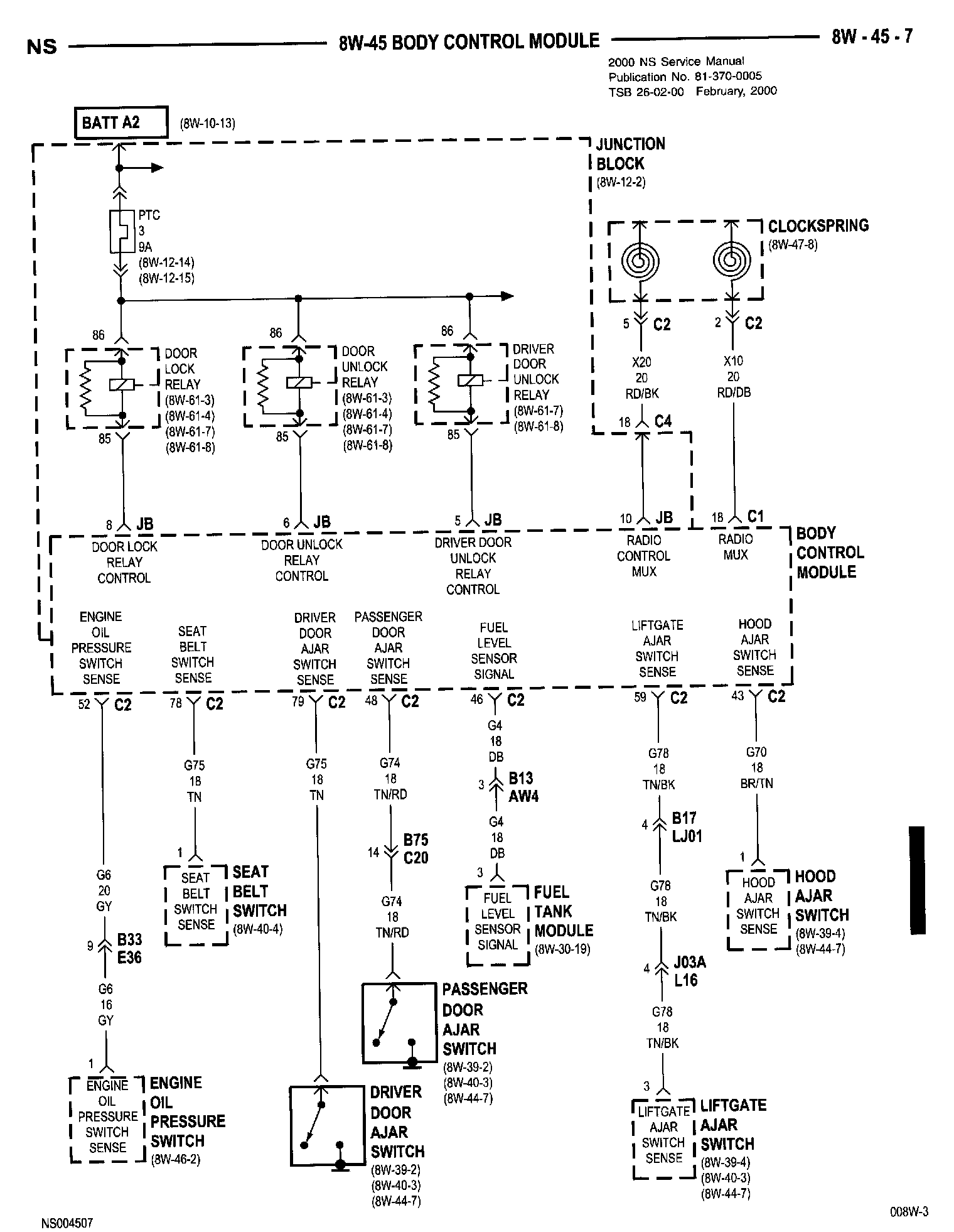

8W-45-7
