Chime Inoperative With Low Oil Pressure

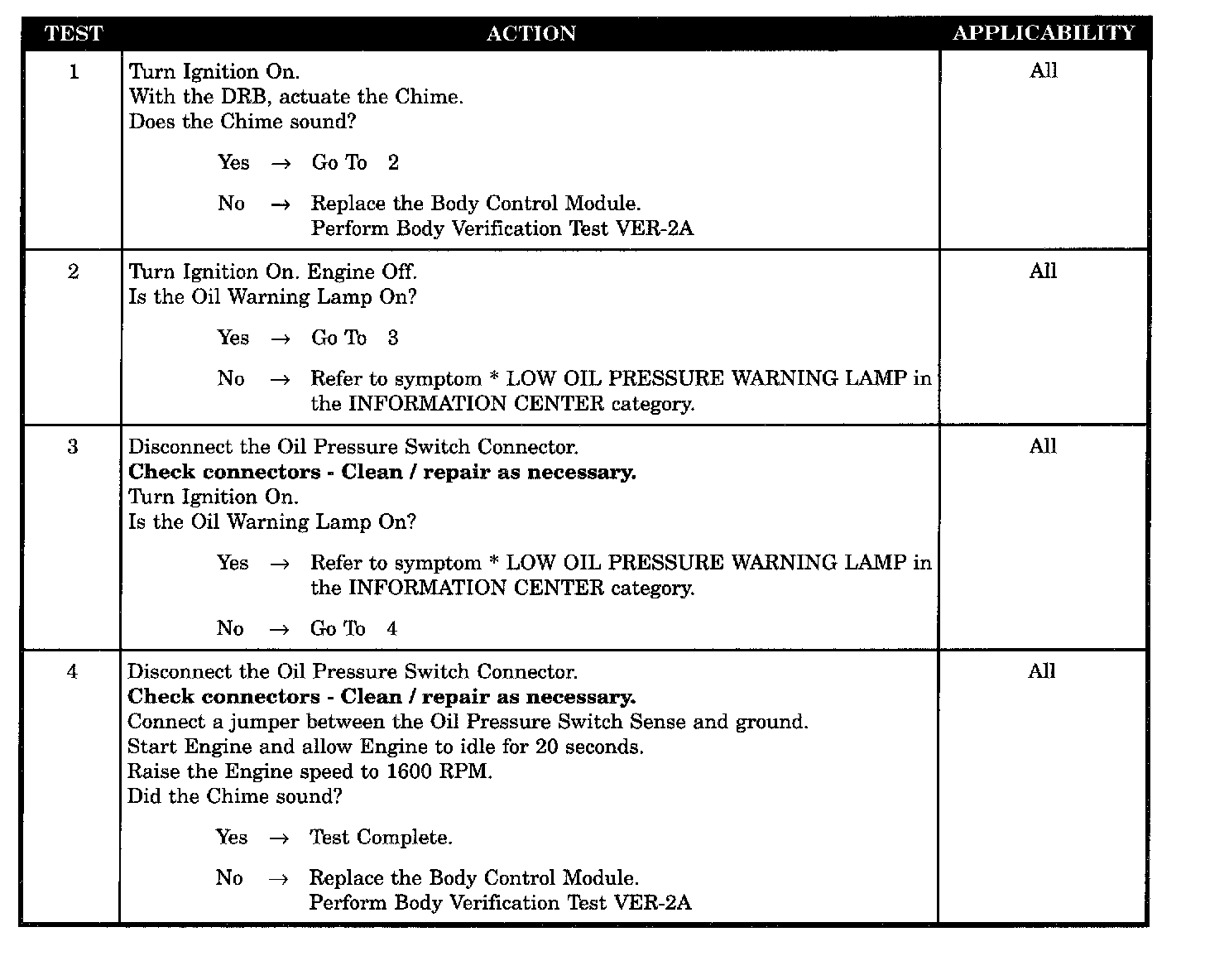

Tests 1 - 4:




SYMPTOM
CHIME INOPERATIVE WITH LOW OIL PRESSURE

POSSIBLE CAUSES
- BCM - No response to oil pressure
- BCM fails chime test
