Chime Sounds With Driver Seat Belt Fastened

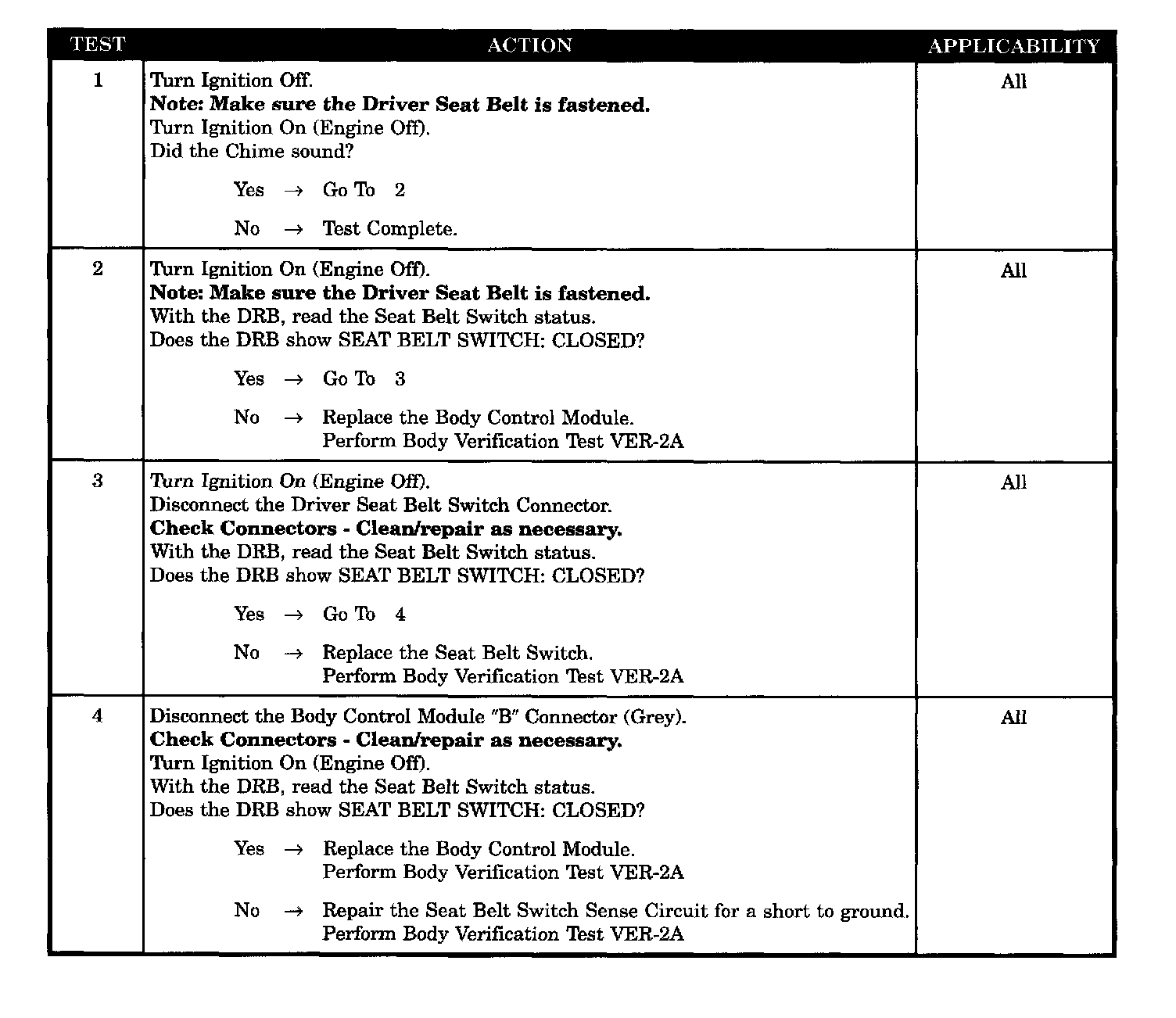

Tests 1 - 4:




SYMPTOM
CHIME SOUNDS WITH DRIVER SEAT BELT FASTENED

POSSIBLE CAUSES
- Seat belt switch sense circuit shorted to ground
- Left seat belt switch shorted
- BCM no response to belt fastened
- BCM seat belt switch input shorted to ground
