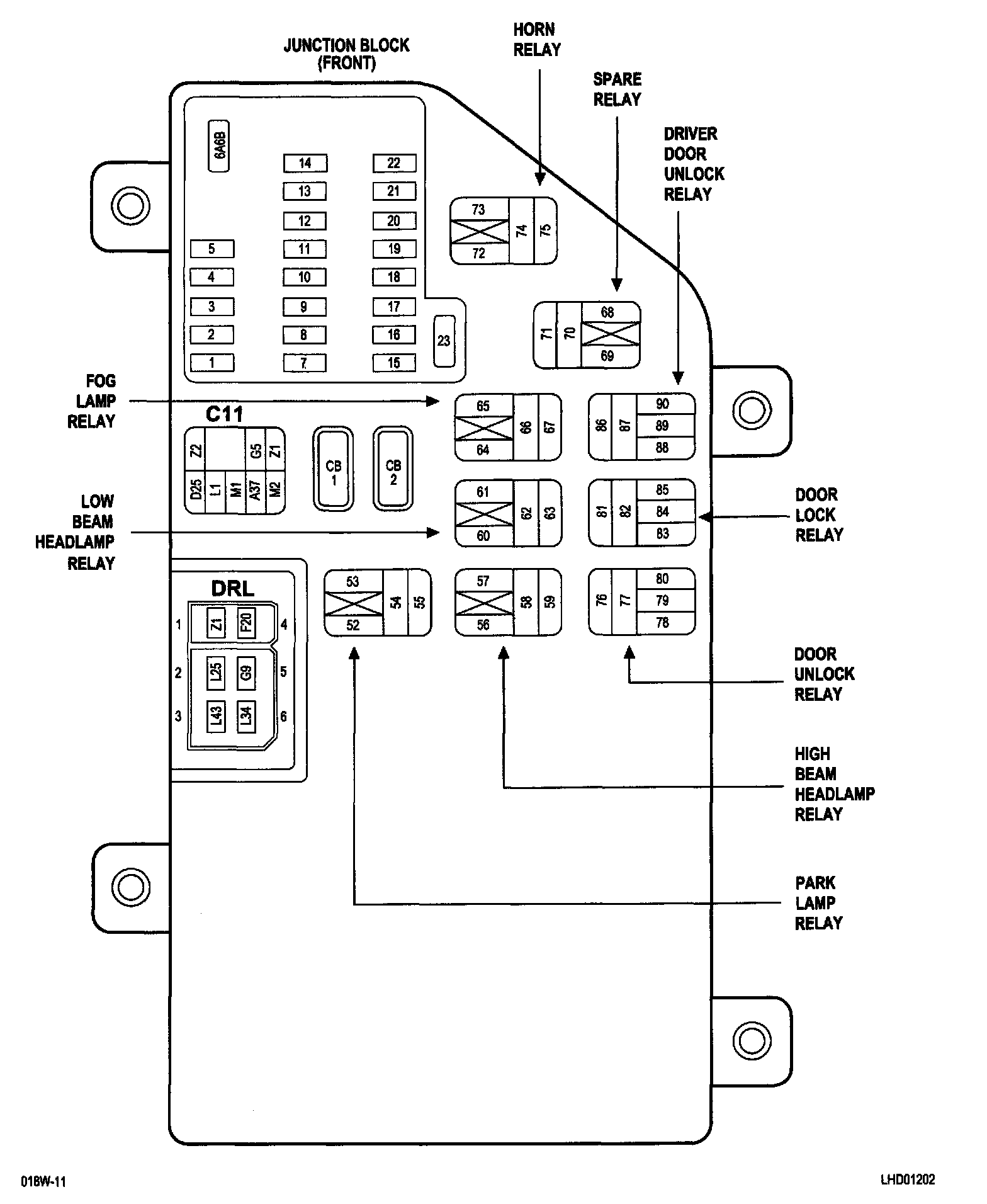

Fuse Block

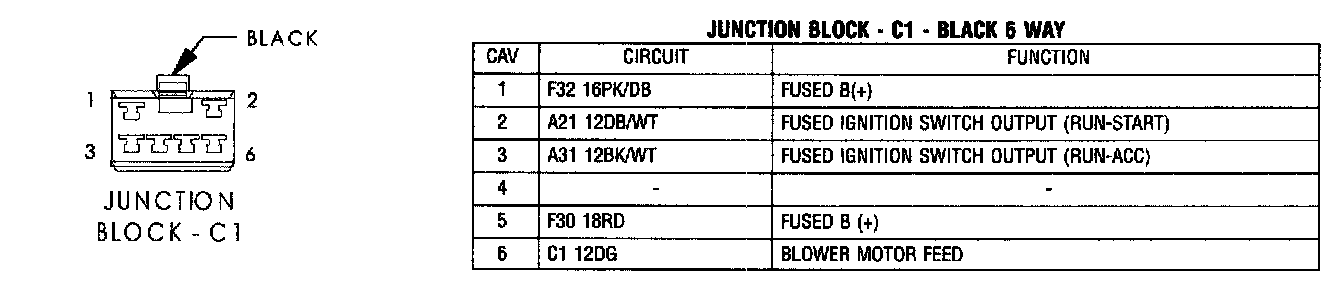

Junction Block - C1:

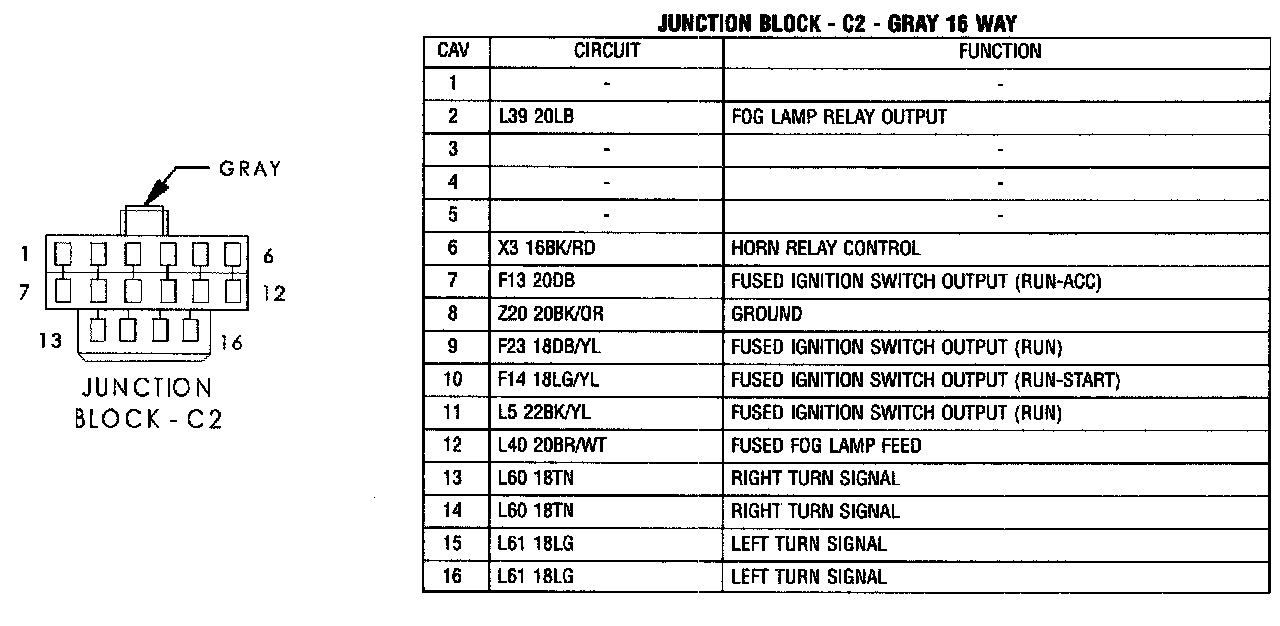

Junction Block - C2:

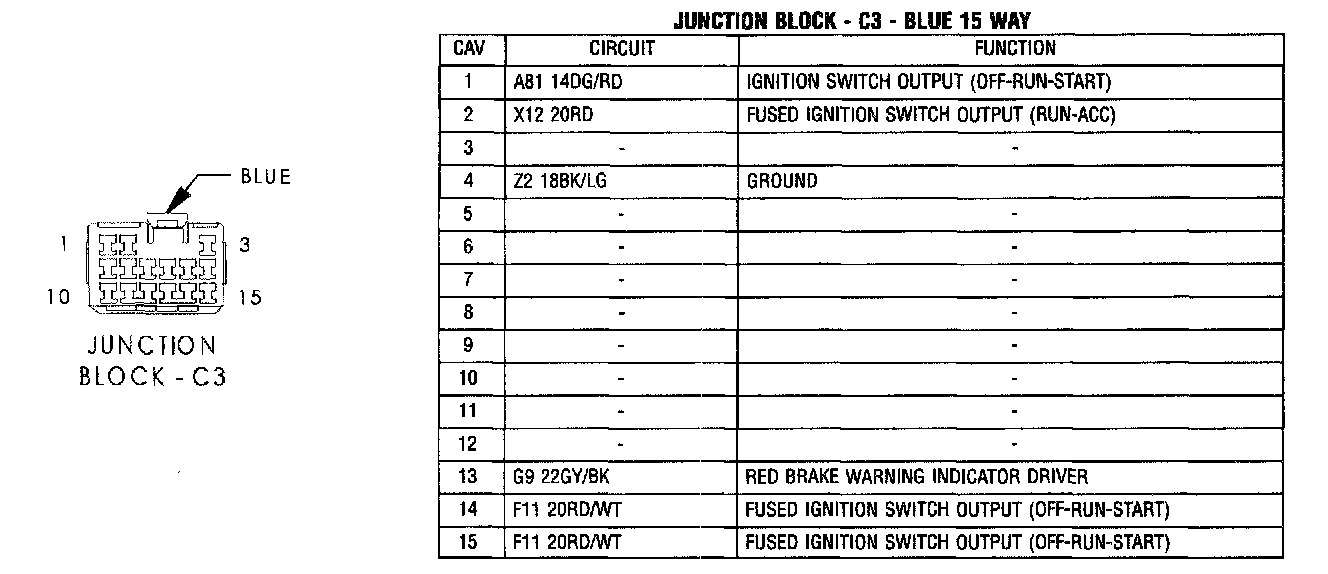

Junction Block - C3:

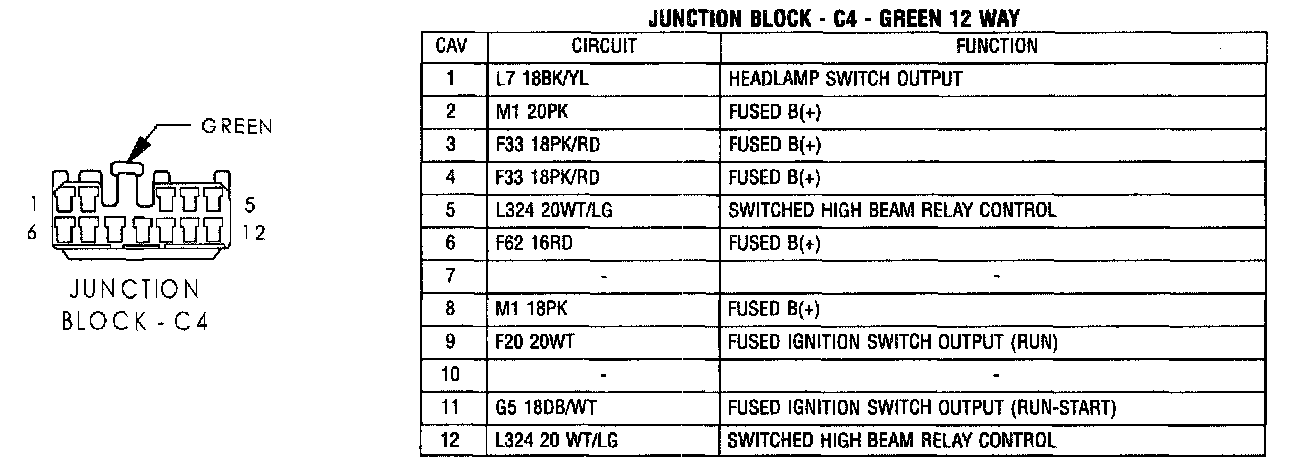

Junction Block - C4:

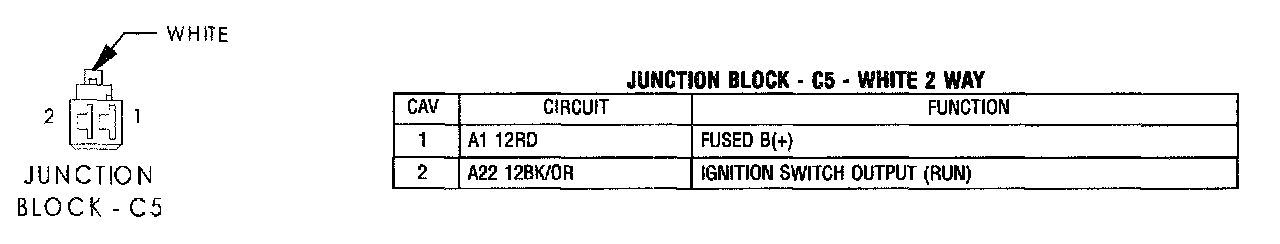

Junction Block - C5:

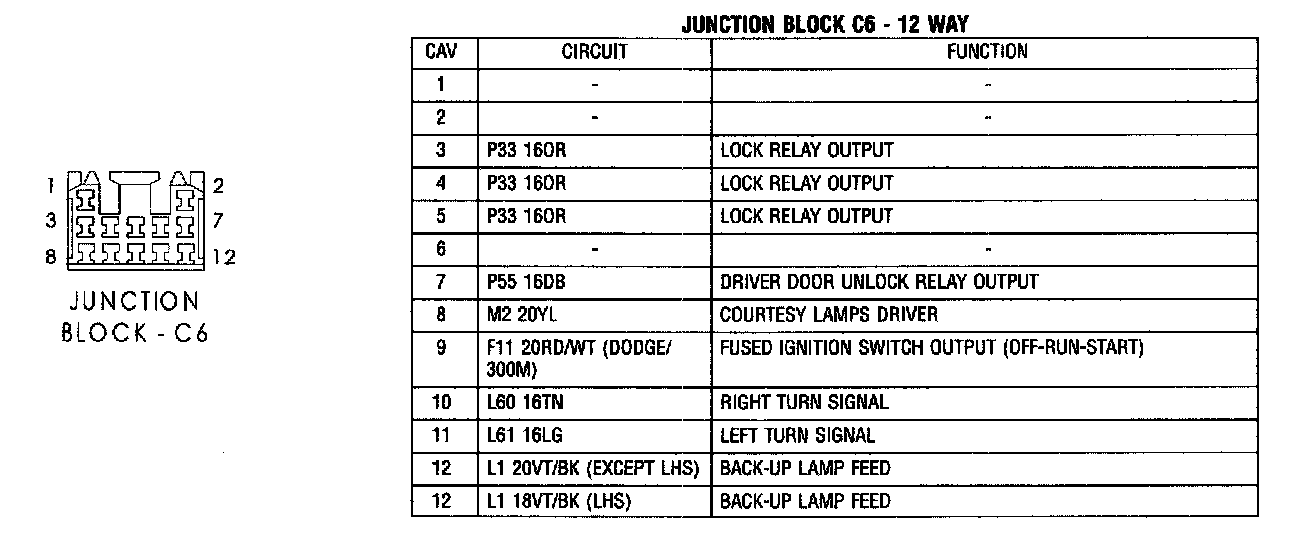

Junction Block - C6:

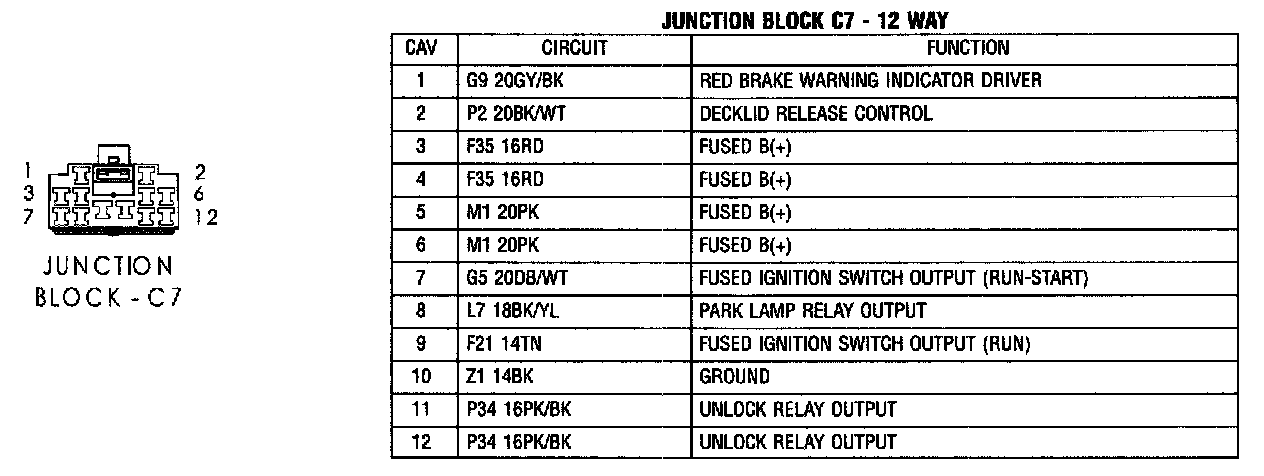

Junction Block - C7:

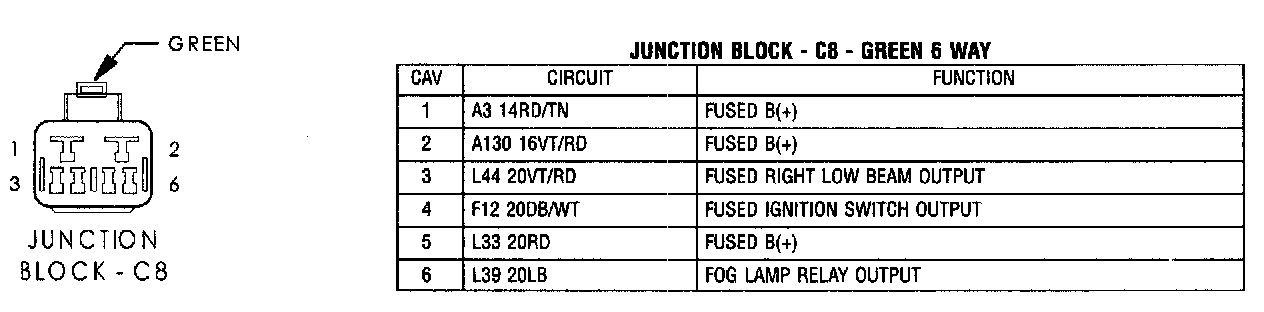

Junction Block - C8:

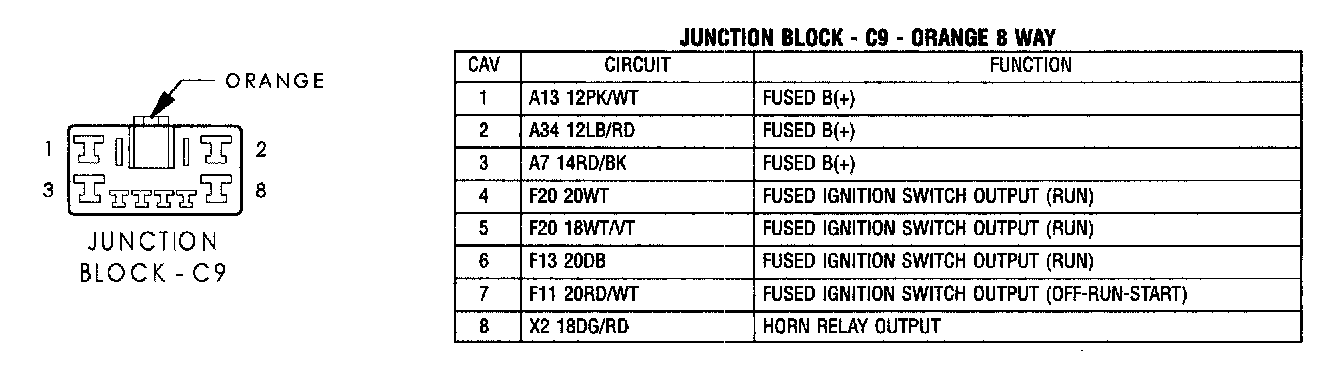

Junction Block - C9:

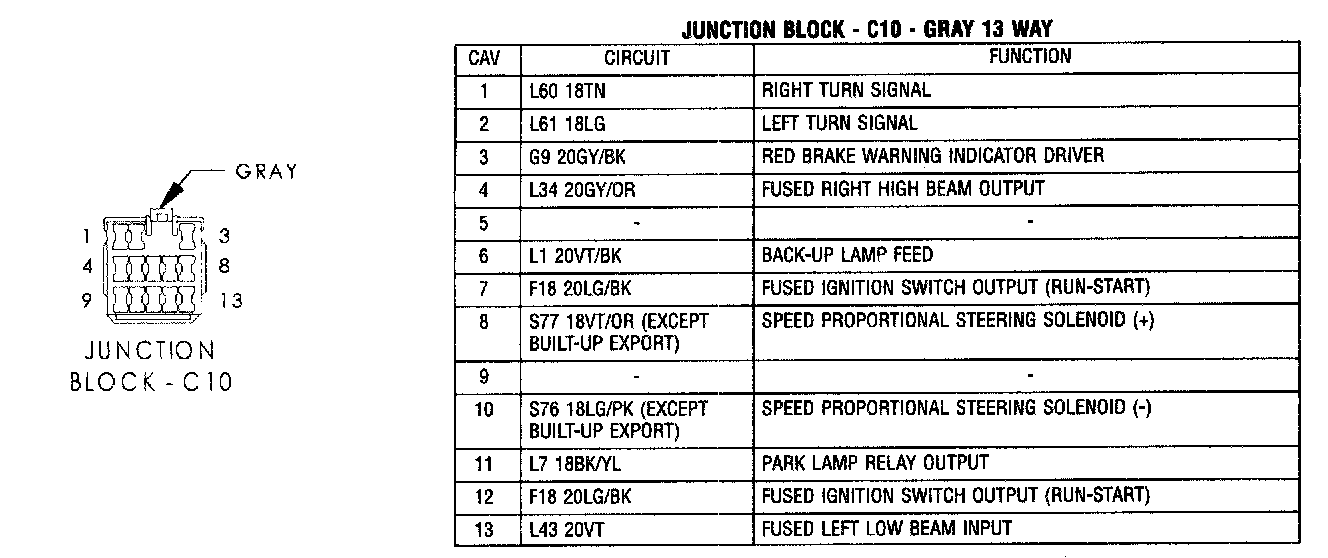

Junction Block - C10:

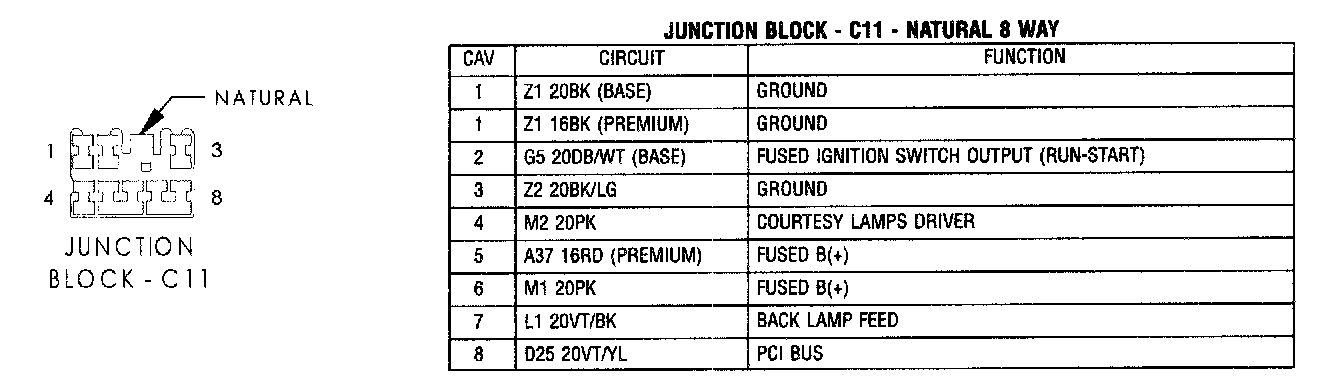

Junction Block - C11:

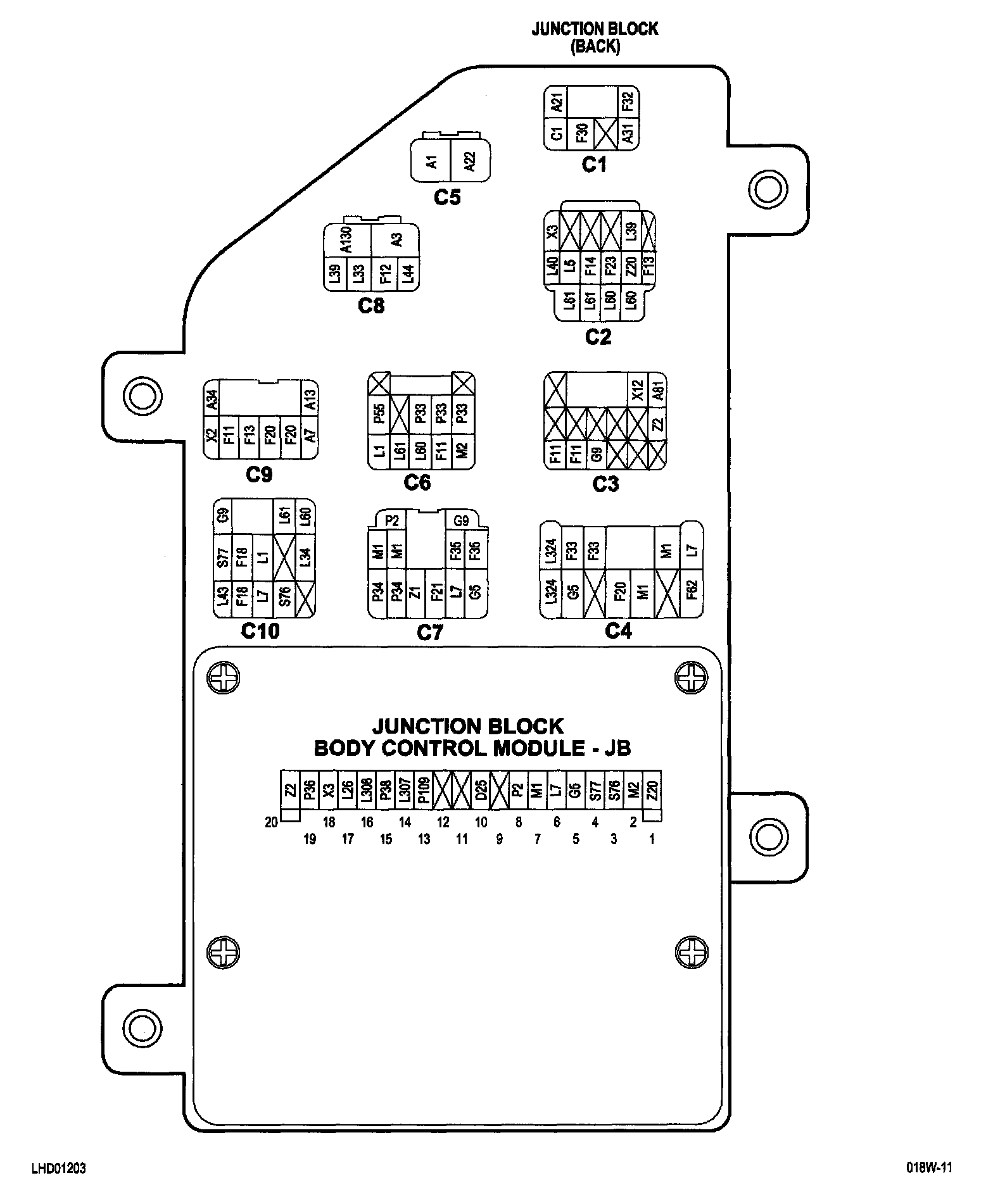

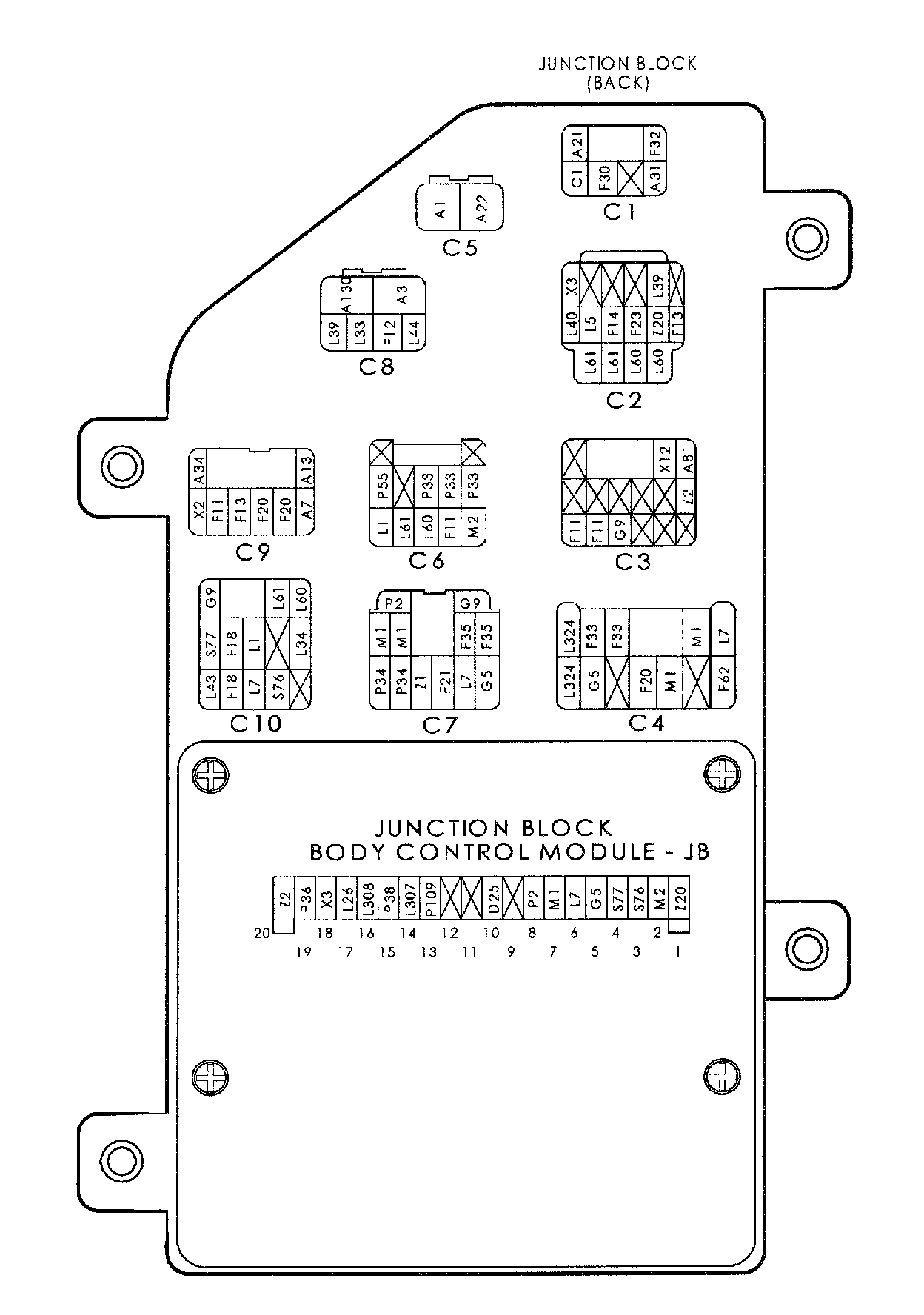

Junction Block (Back):

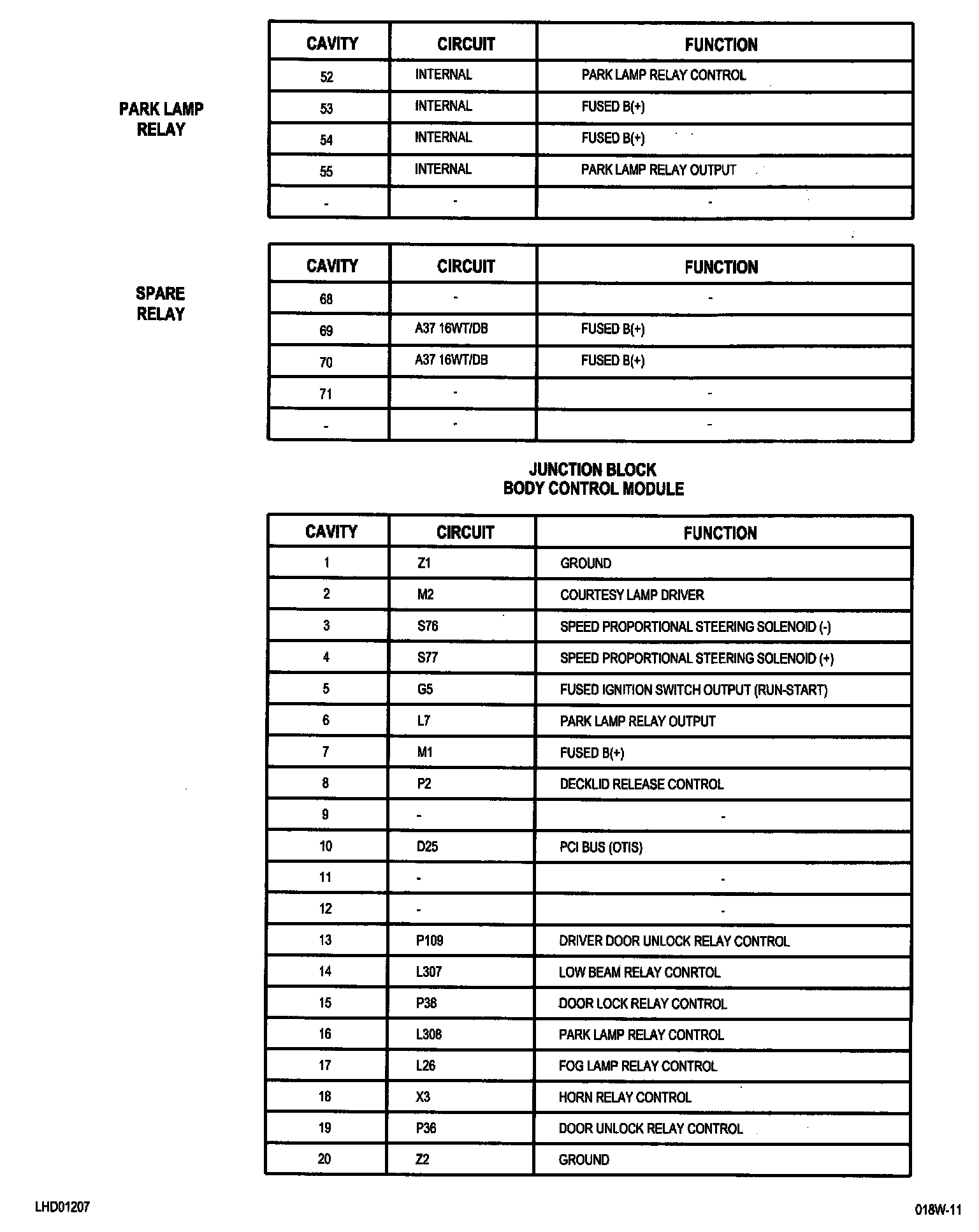

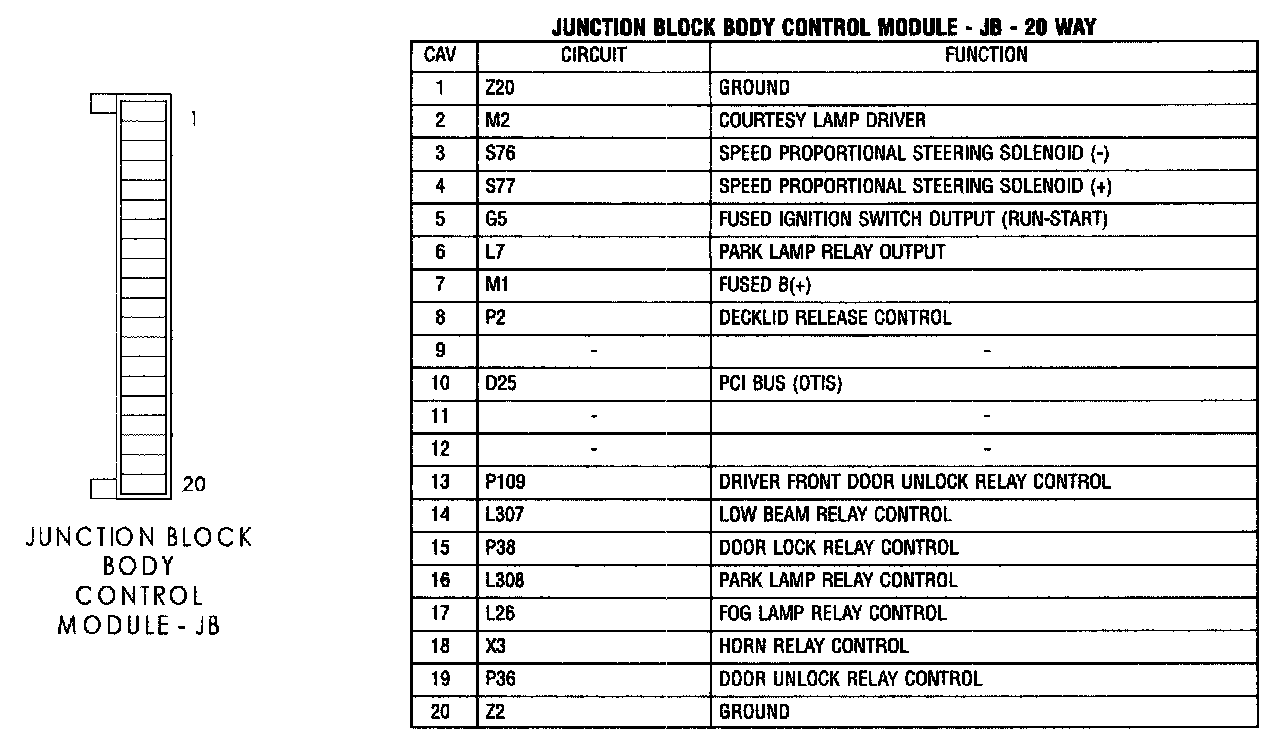

Junction Block Body Control Module - JB:

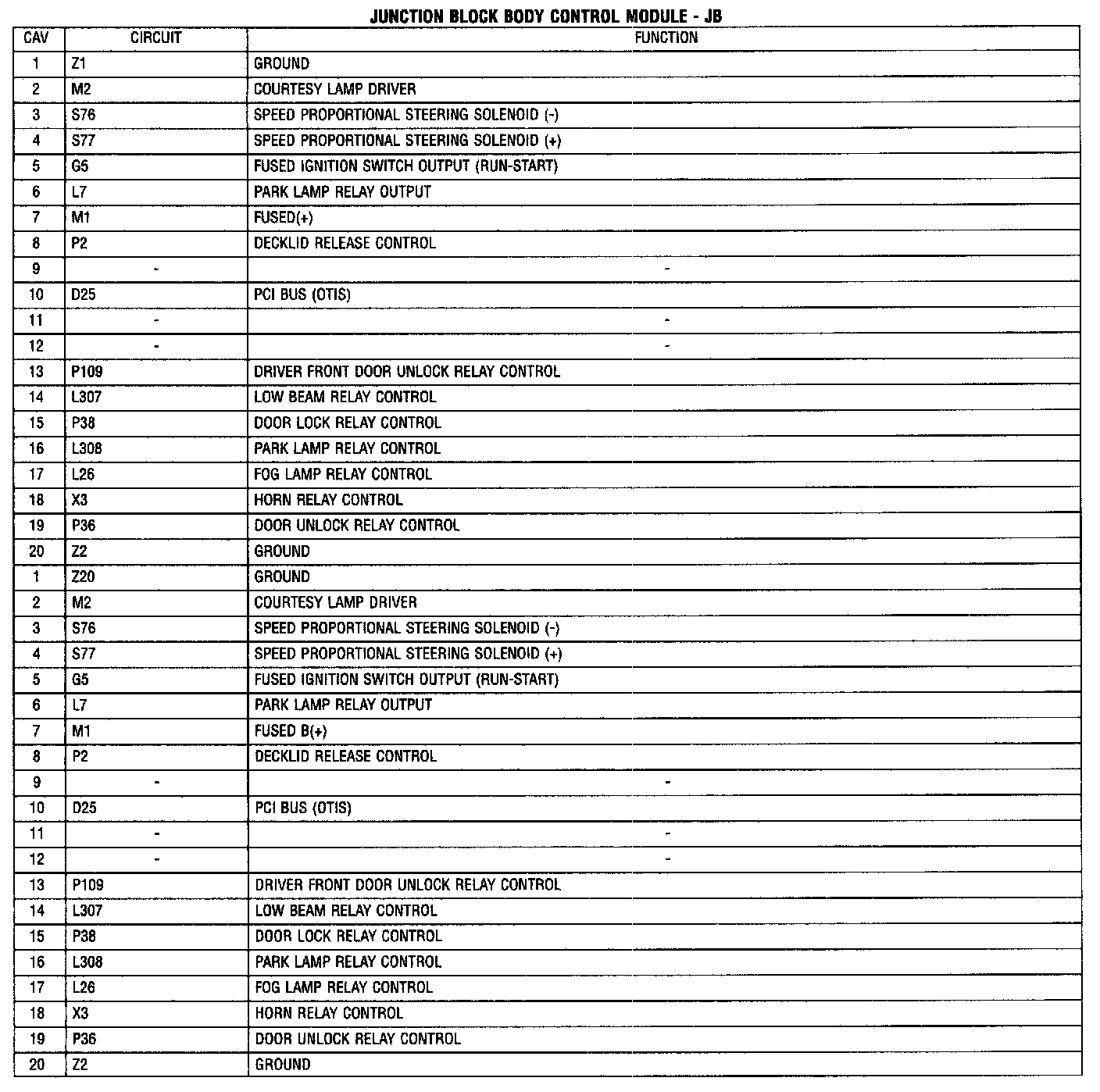

Junction Block Body Control Module - JB:

8w-12-2:

8w-12-3:

8w-12-7:
