Automatic Shut Down Relay

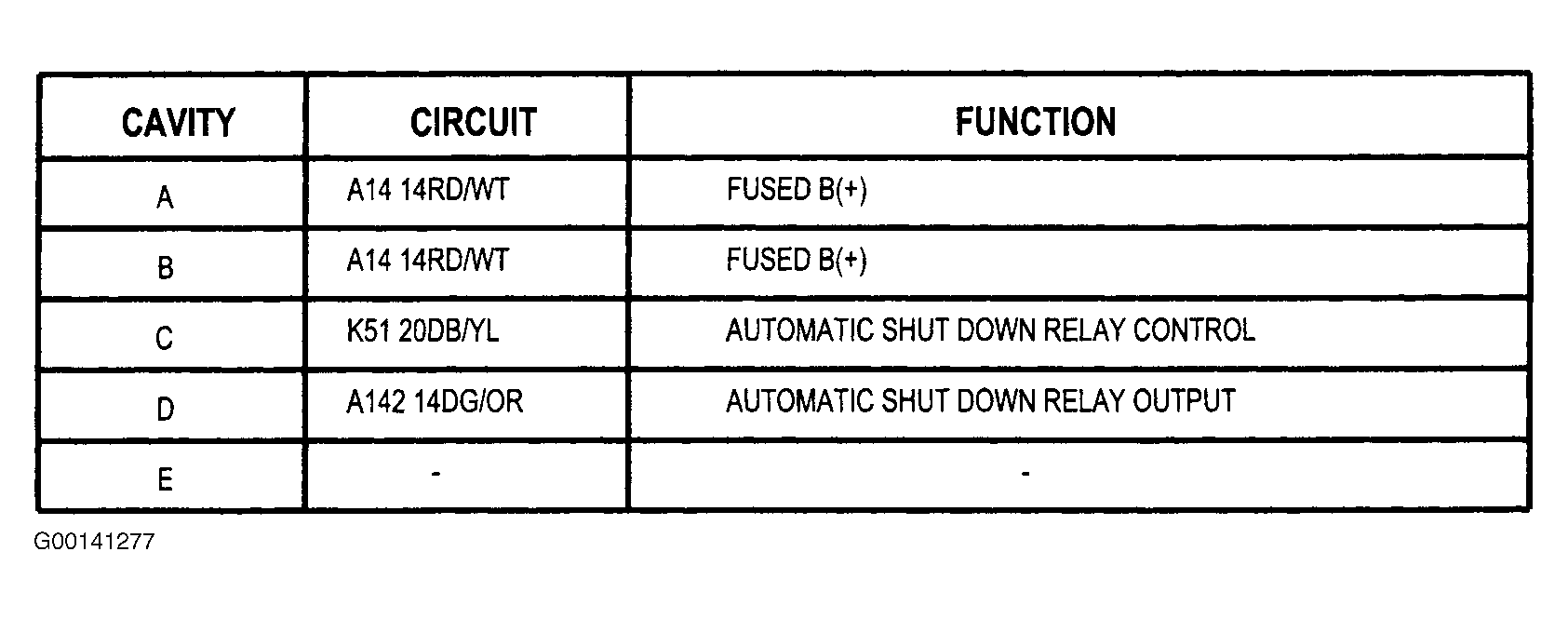

Fig 1: Identifying Automatic Shut Down Relay Terminals
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
