High Speed Radiator Fan Relay

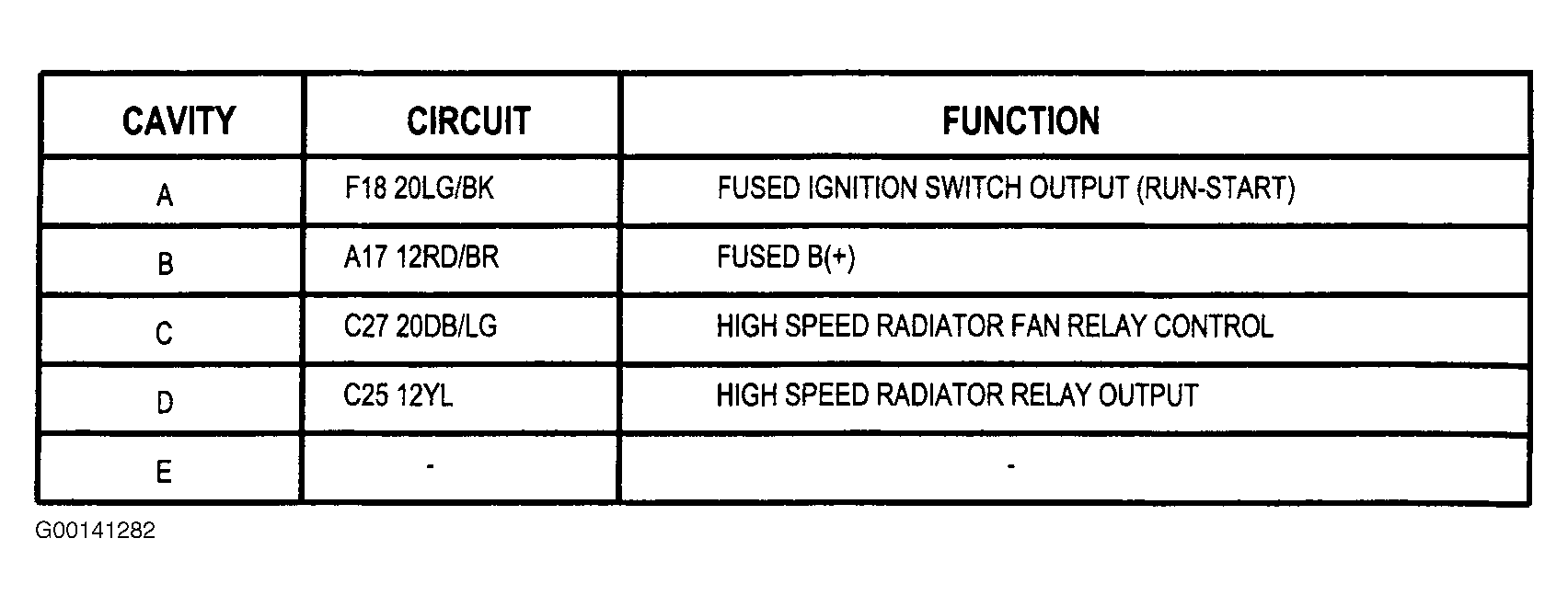

Fig 1: Identifying High Speed Radiator Fan Relay Terminals
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
