Transmission Control Relay

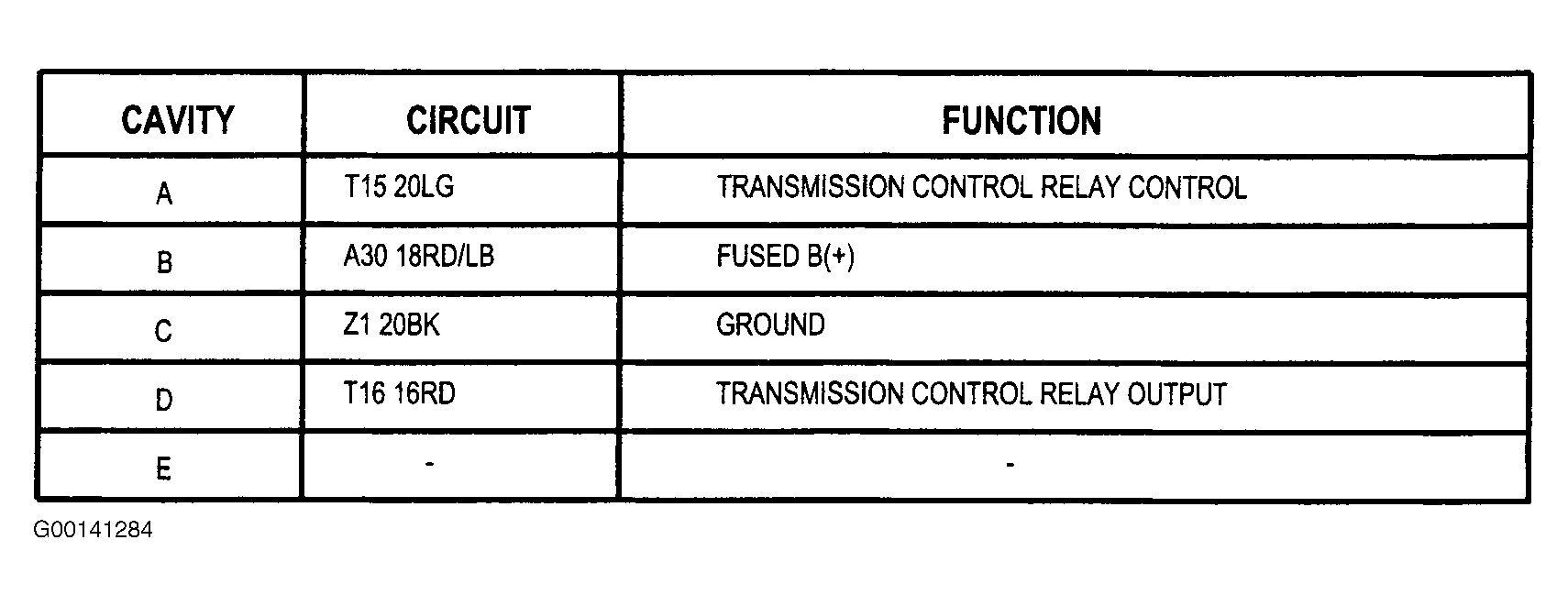

Fig 1: Identifying Transmission Control Relay Terminals
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
