Powertrain Control Module C1
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

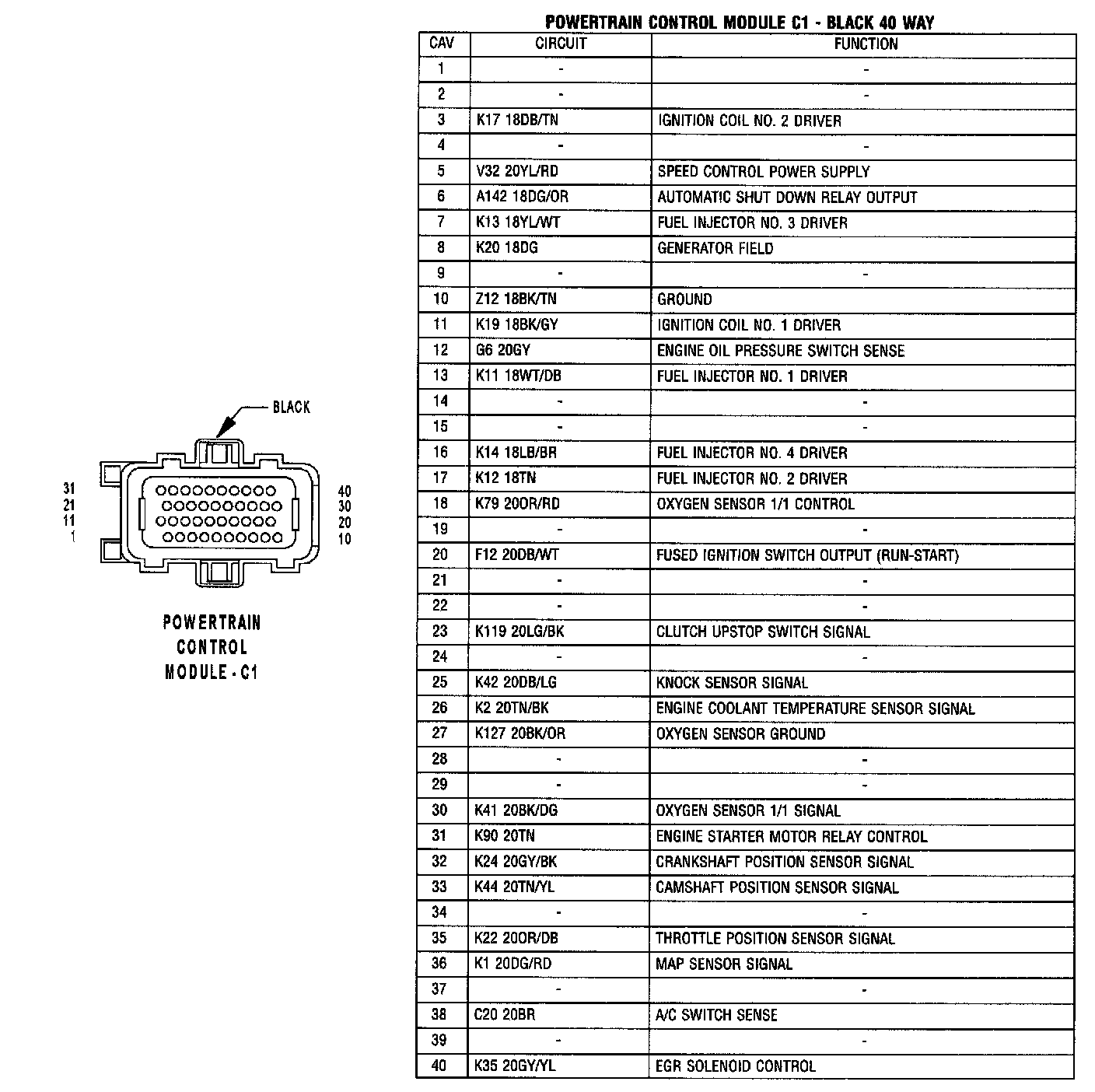

Powertrain Control Module C1
