Power Distribution Center Location




Power Distribution Center Location:

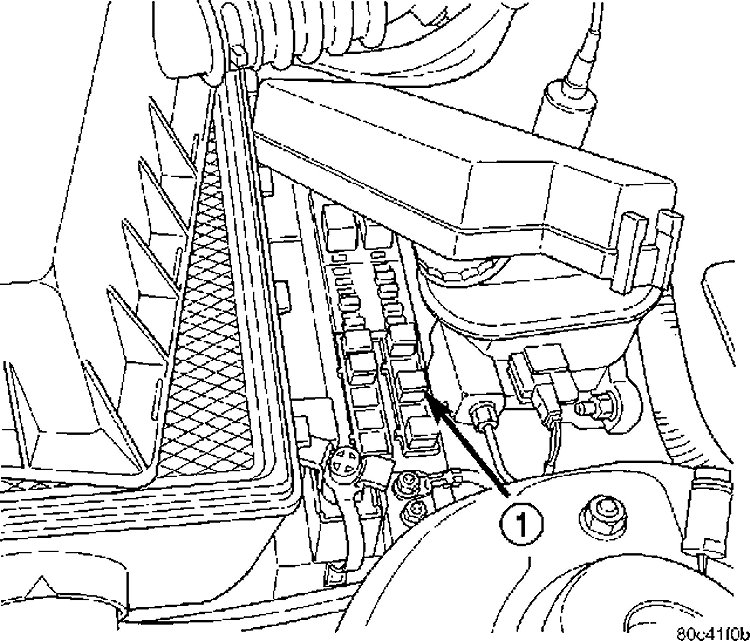

Power Distribution Center is located in the left front corner of the engine compartment, just behind the air cleaner housing and the battery.
