Main Relay (Computer/Fuel System): Service and Repair

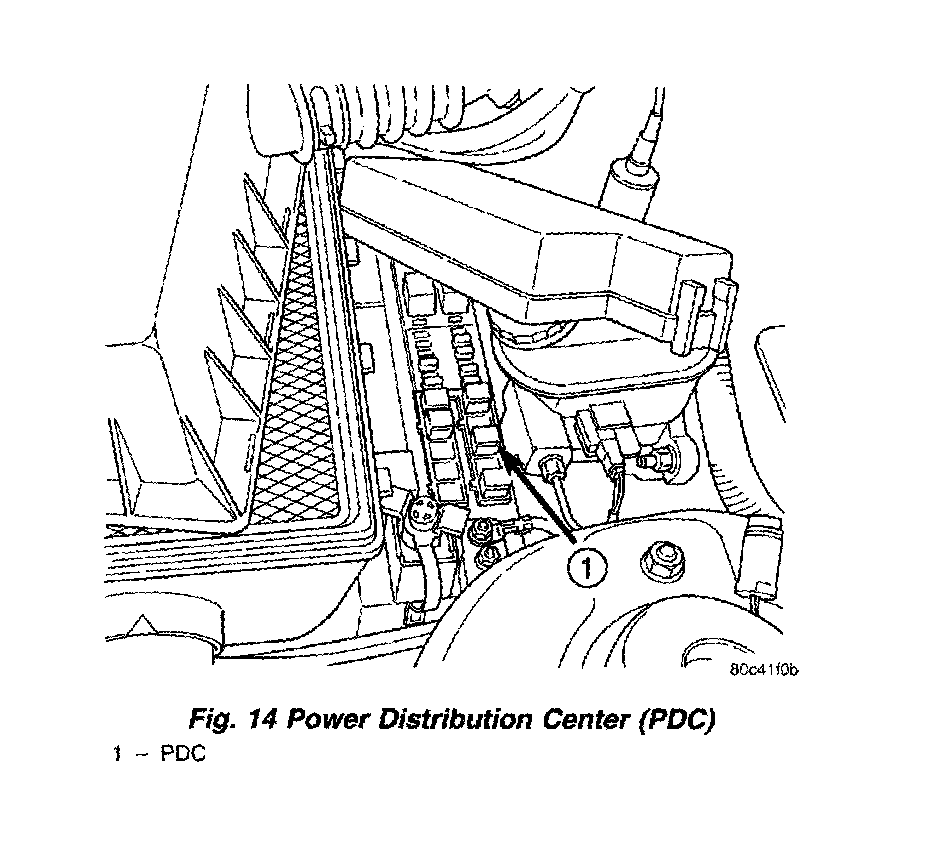

Fig.14 Power Distribution Center (PDC):

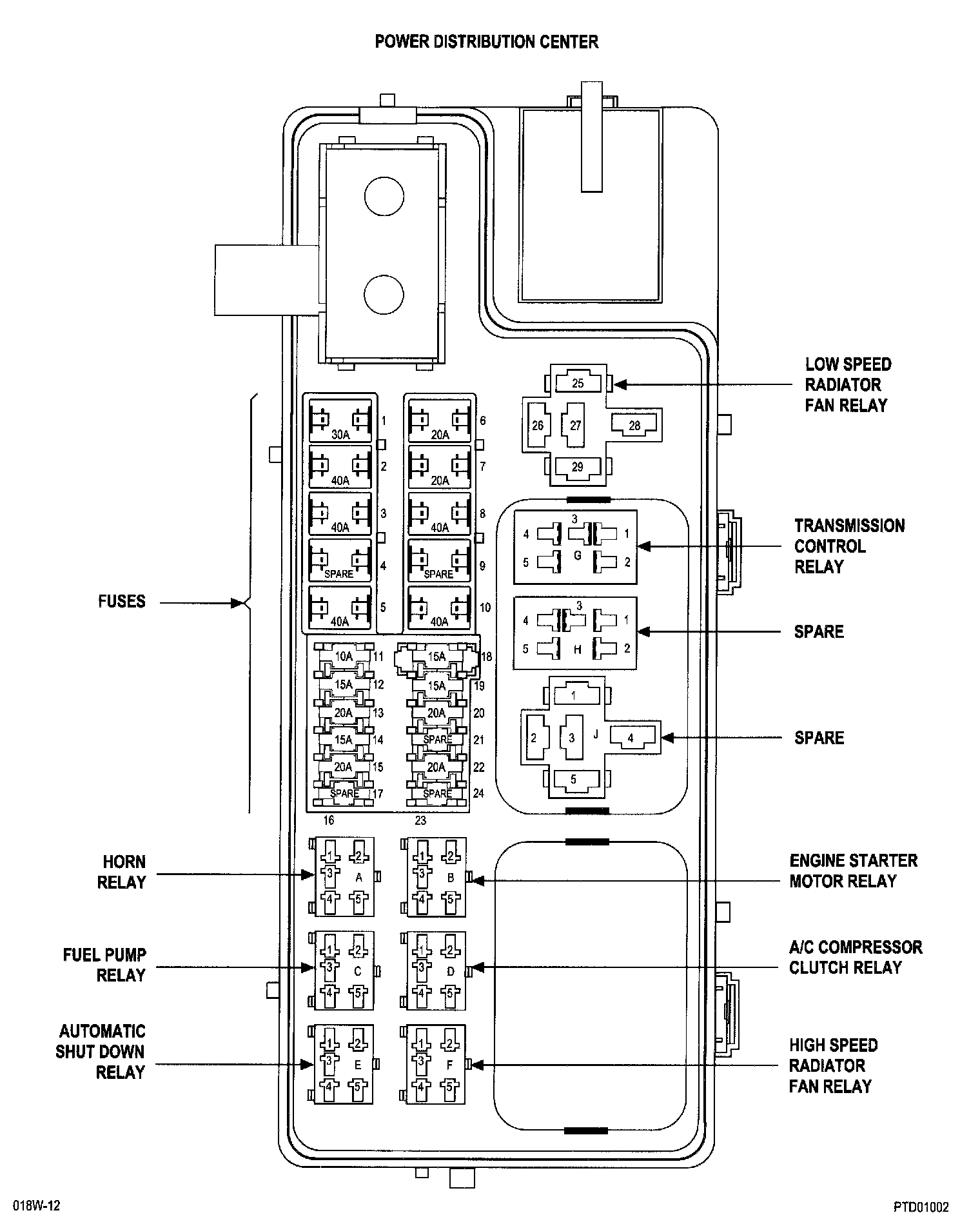

Power Distribution Center:

The relay is located in the Power Distribution Center (PDC). For the location of the PDC, refer to the PDC cover for location. Check electrical terminals for corrosion and repair as necessary.
