Connector Identification

Fig 1: Identifying Ignition Switch Connector No. 3 Terminals

Courtesy of DAIMLERCHRYSLER CORPORATION

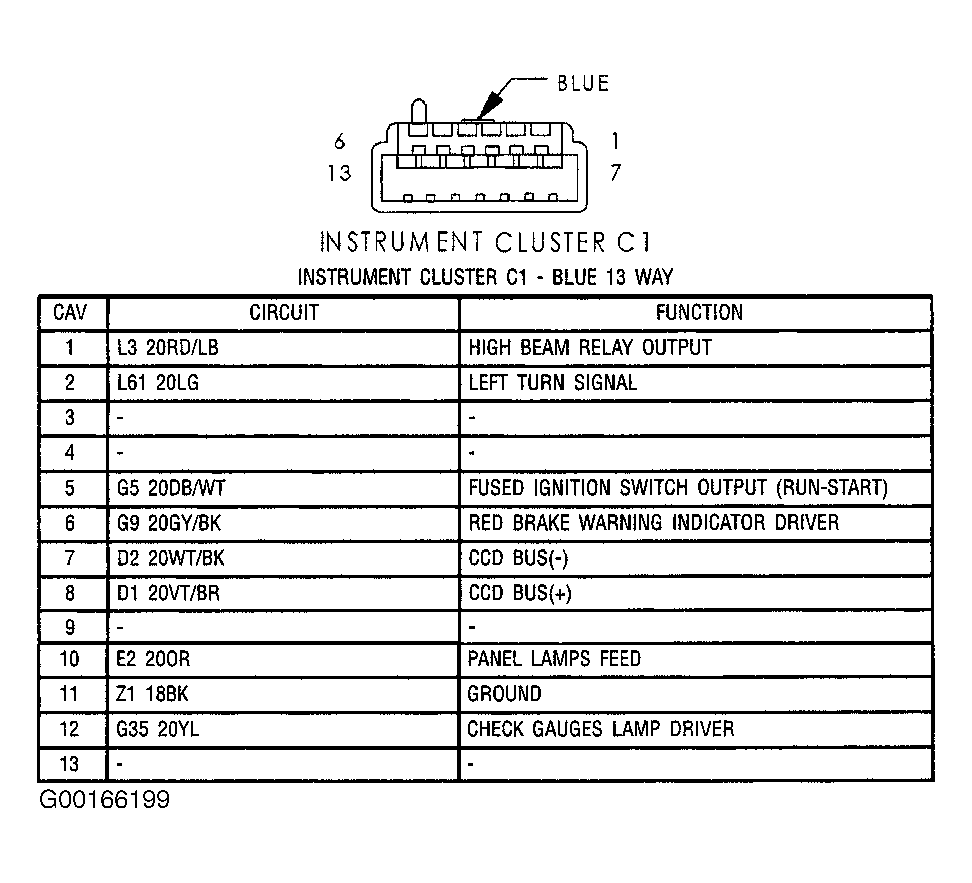

Fig 2: Identifying Instrument Cluster Connector C1 Terminals

Courtesy of DAIMLERCHRYSLER CORPORATION

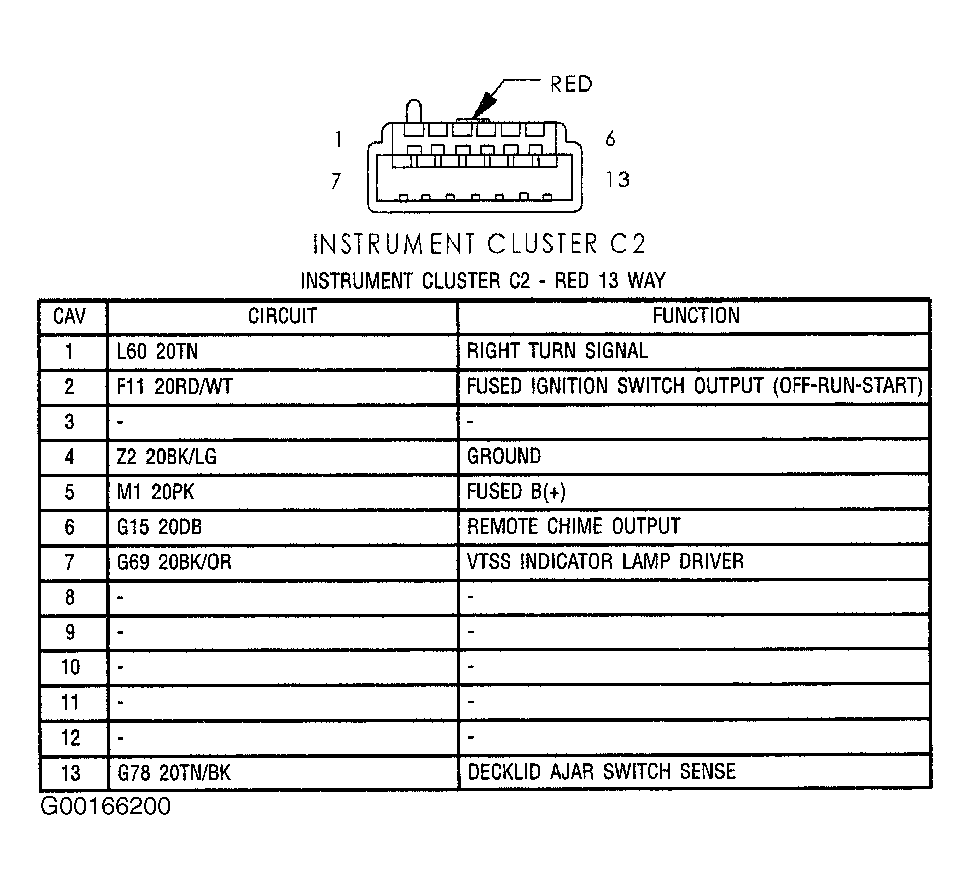

Fig 3: Indentifying Instrument Cluster Connector C2 Terminals

Courtesy of DAIMLERCHRYSLER CORPORATION

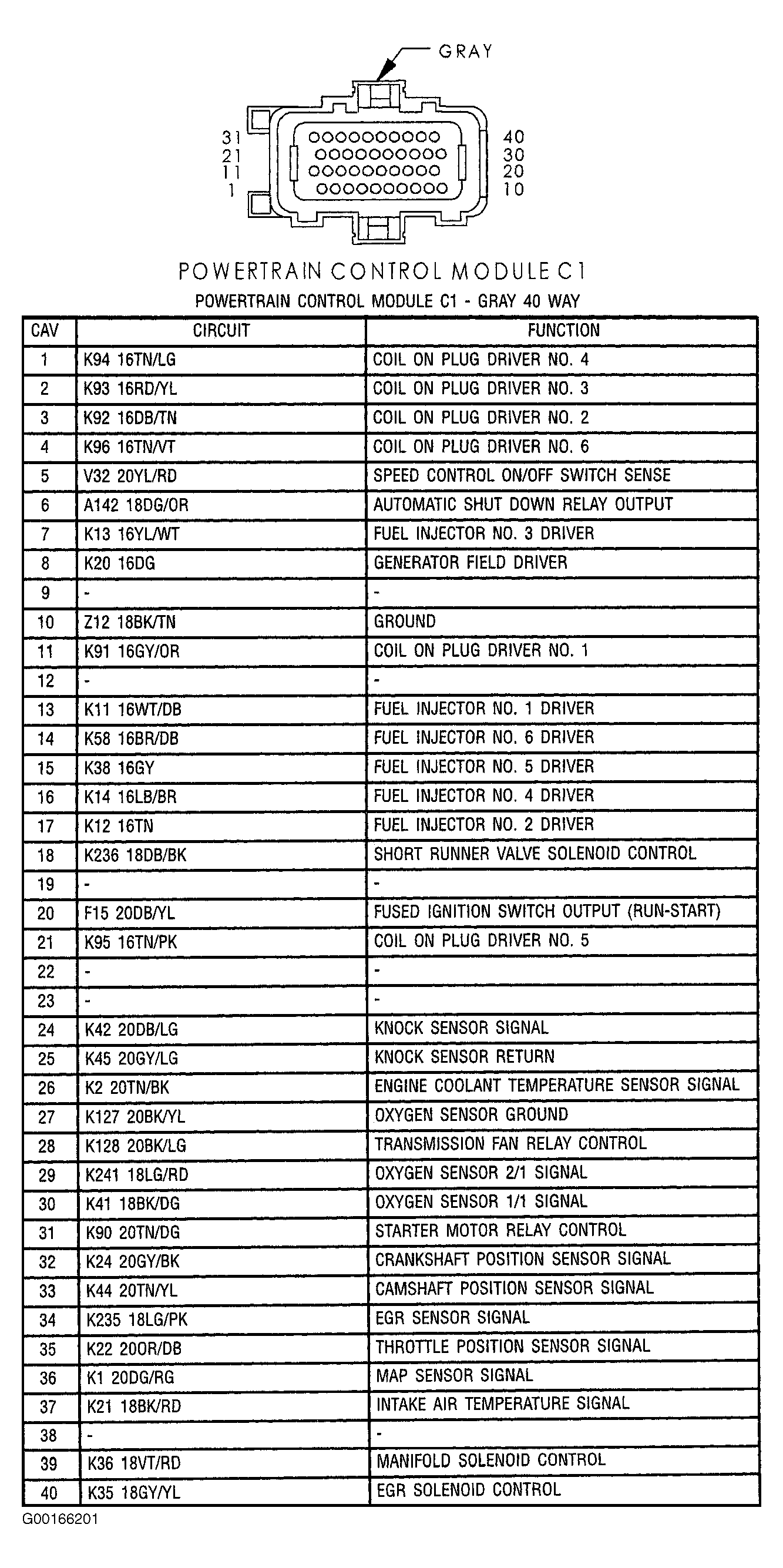

Fig 4: Identifying Powertrain Control Module Connector C1 Terminals

Courtesy of DAIMLERCHRYSLER CORPORATION

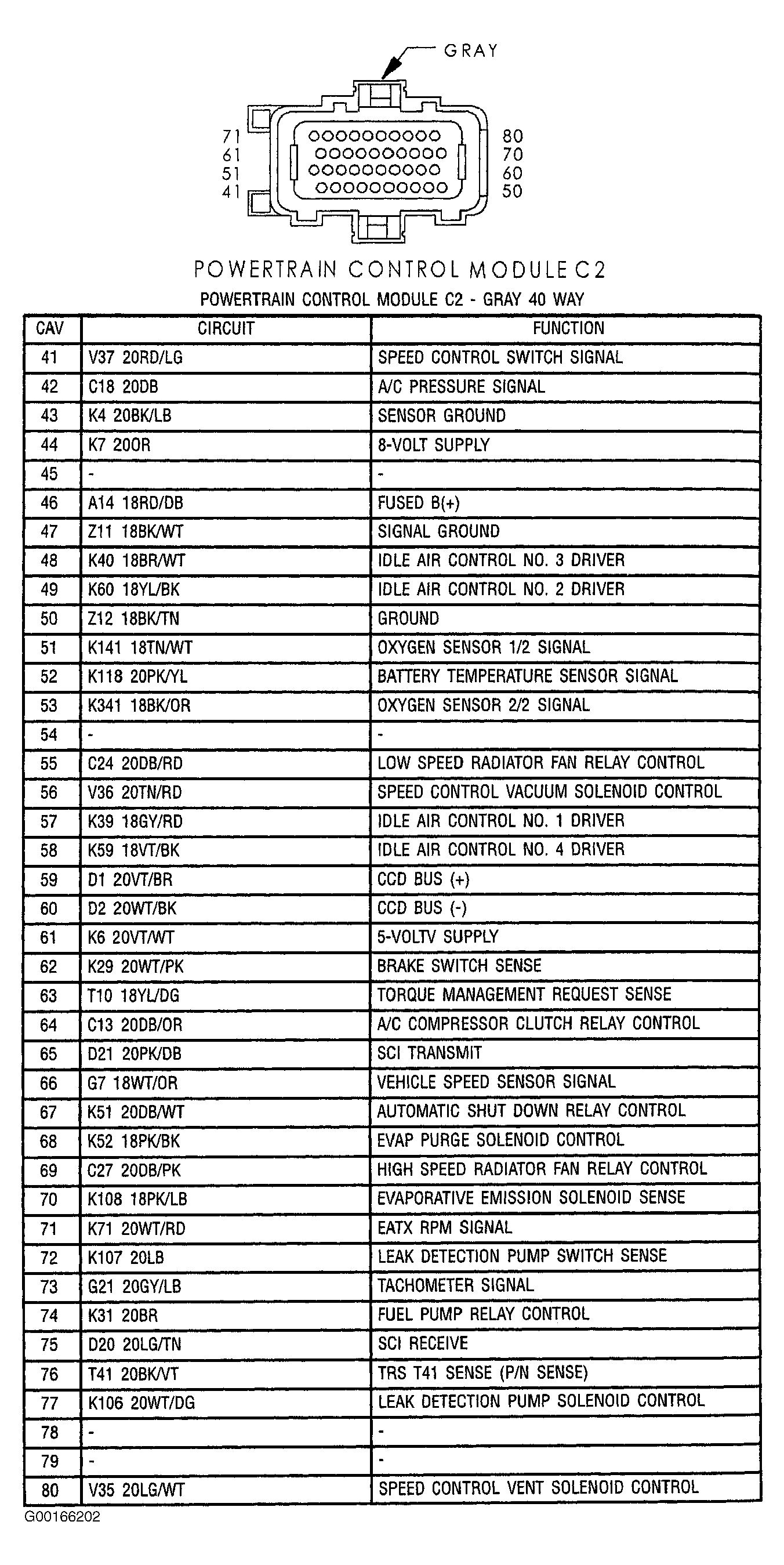

Fig 5: Identifying Powertrain Control Module Connector C2 Terminals

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 6: Identifying Speed Control Servo ConnectorTeminals

Courtesy of DAIMLERCHRYSLER CORPORATION

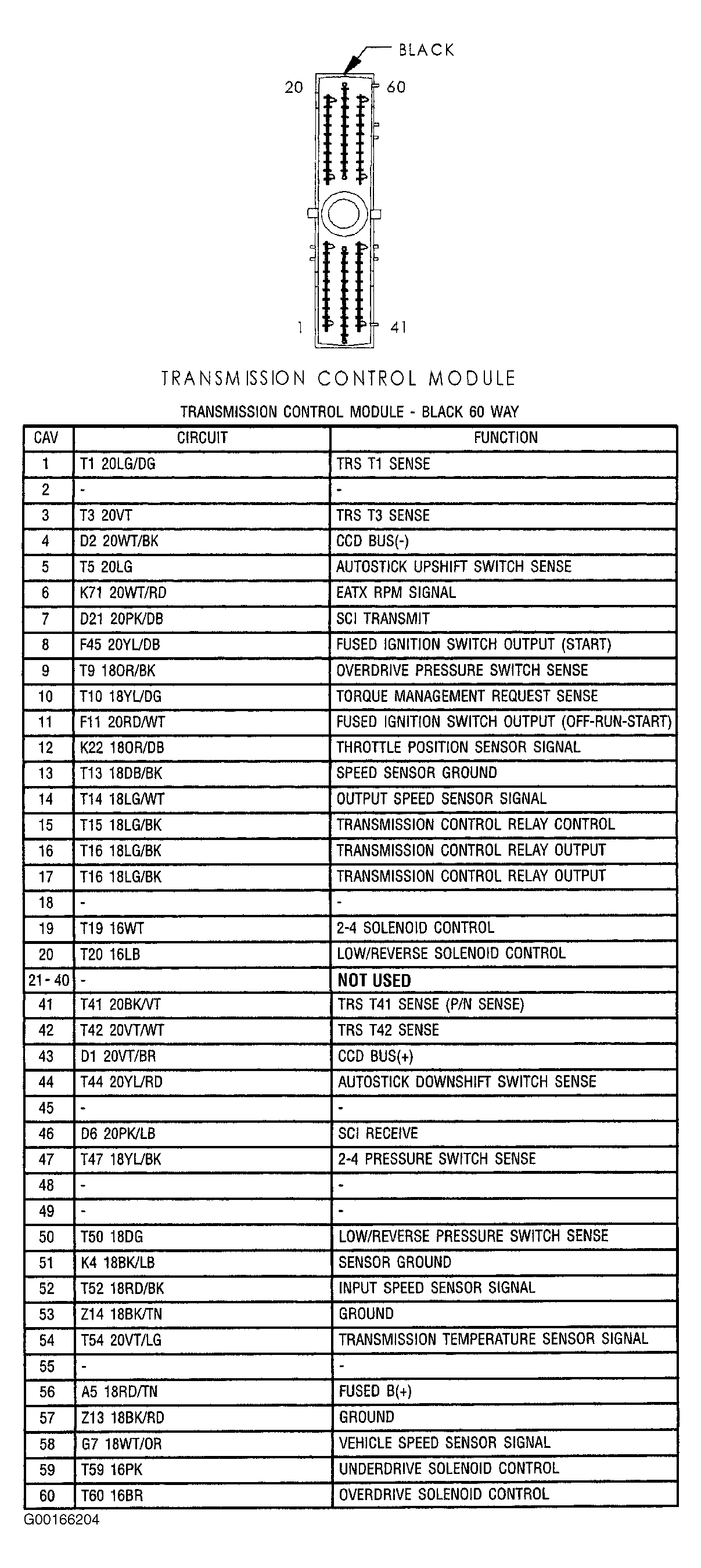

Fig 7: Identifying Transmission Control Module Terminals

Courtesy of DAIMLERCHRYSLER CORPORATION
