Chime Inoperative With Key In Ignition and Driver's Door Open

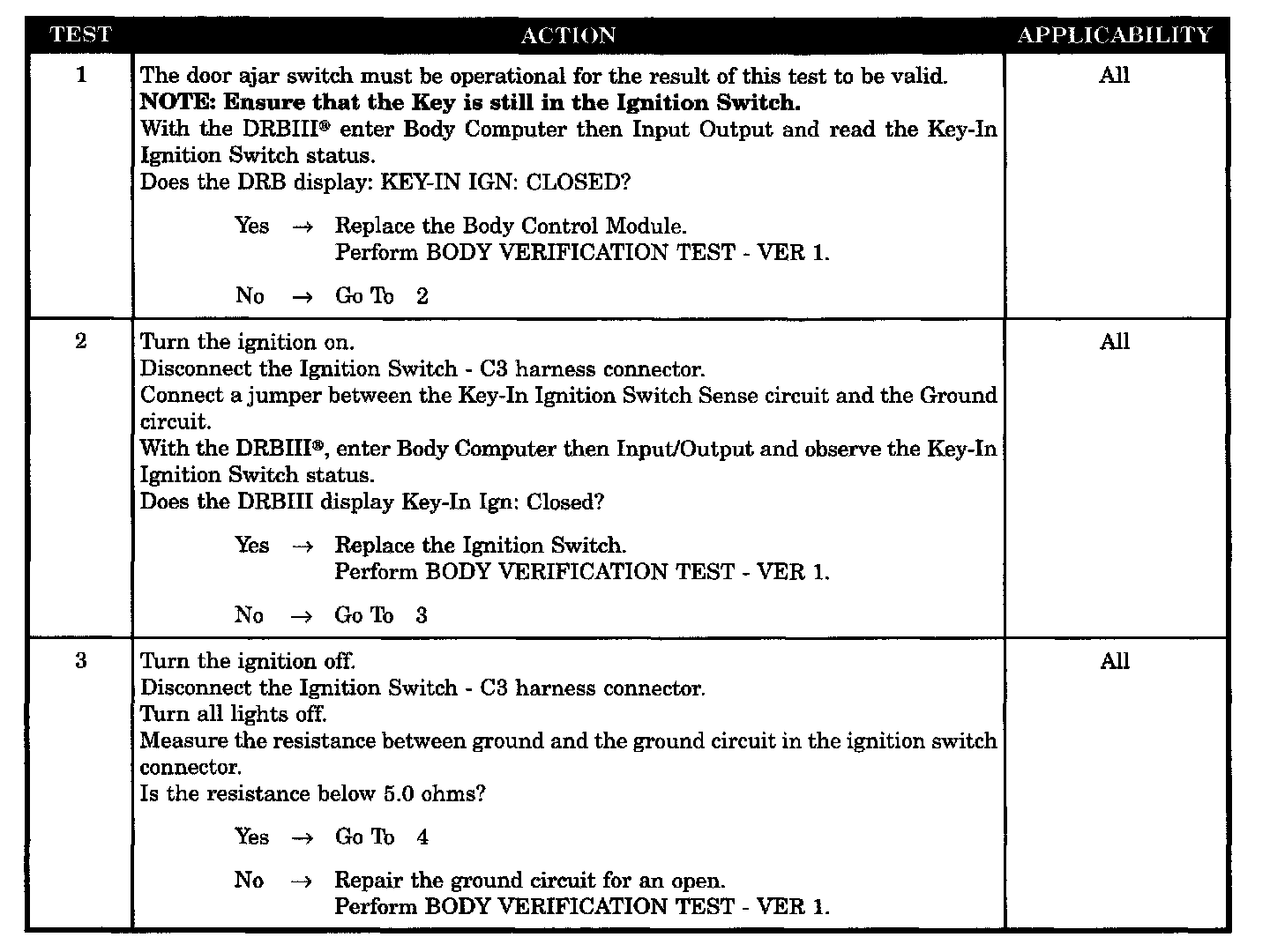

Tests 1 - 3:

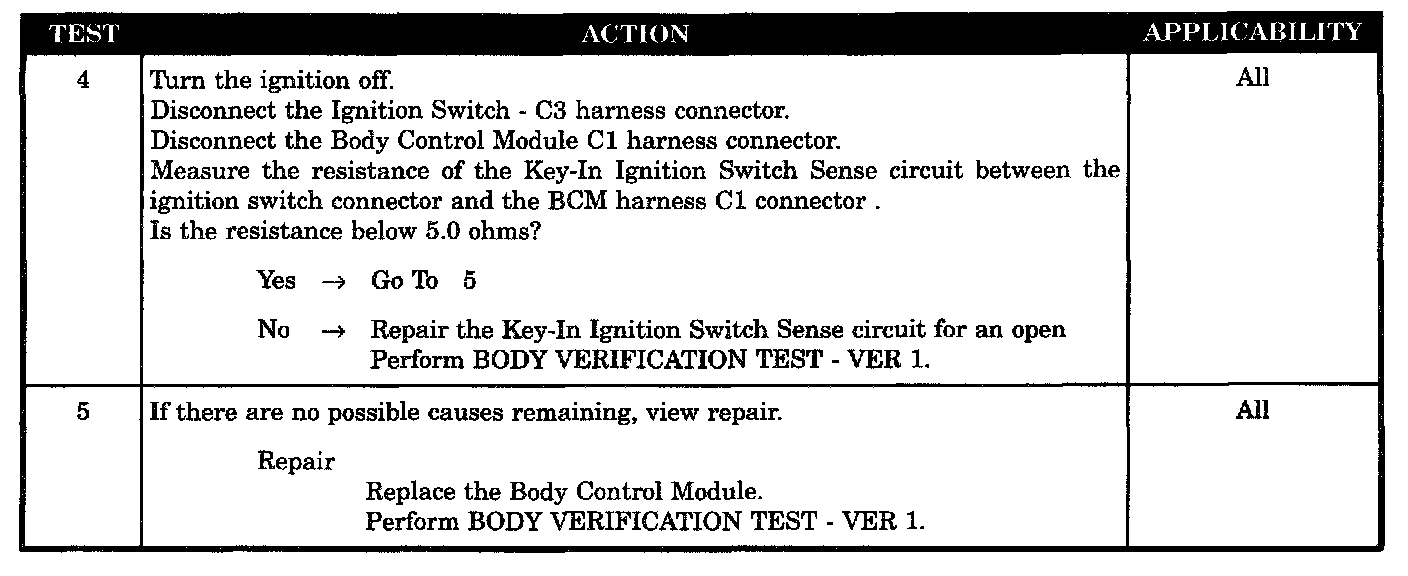

Tests 4 - 5:

SYMPTOM
CHIME INOPERATIVE WITH KEY-IN IGNITION AND DRIVER DOOR OPEN

POSSIBLE CAUSES
- Observe the key-in ignition switch status
- Key-in ignition switch open
- Key-in ignition switch ground circuit open
- Key-in ignition switch sense circuit open
- BCM incorrect key-in ignition switch status
