Chime Sounds With Driver Seat Belt Fastened

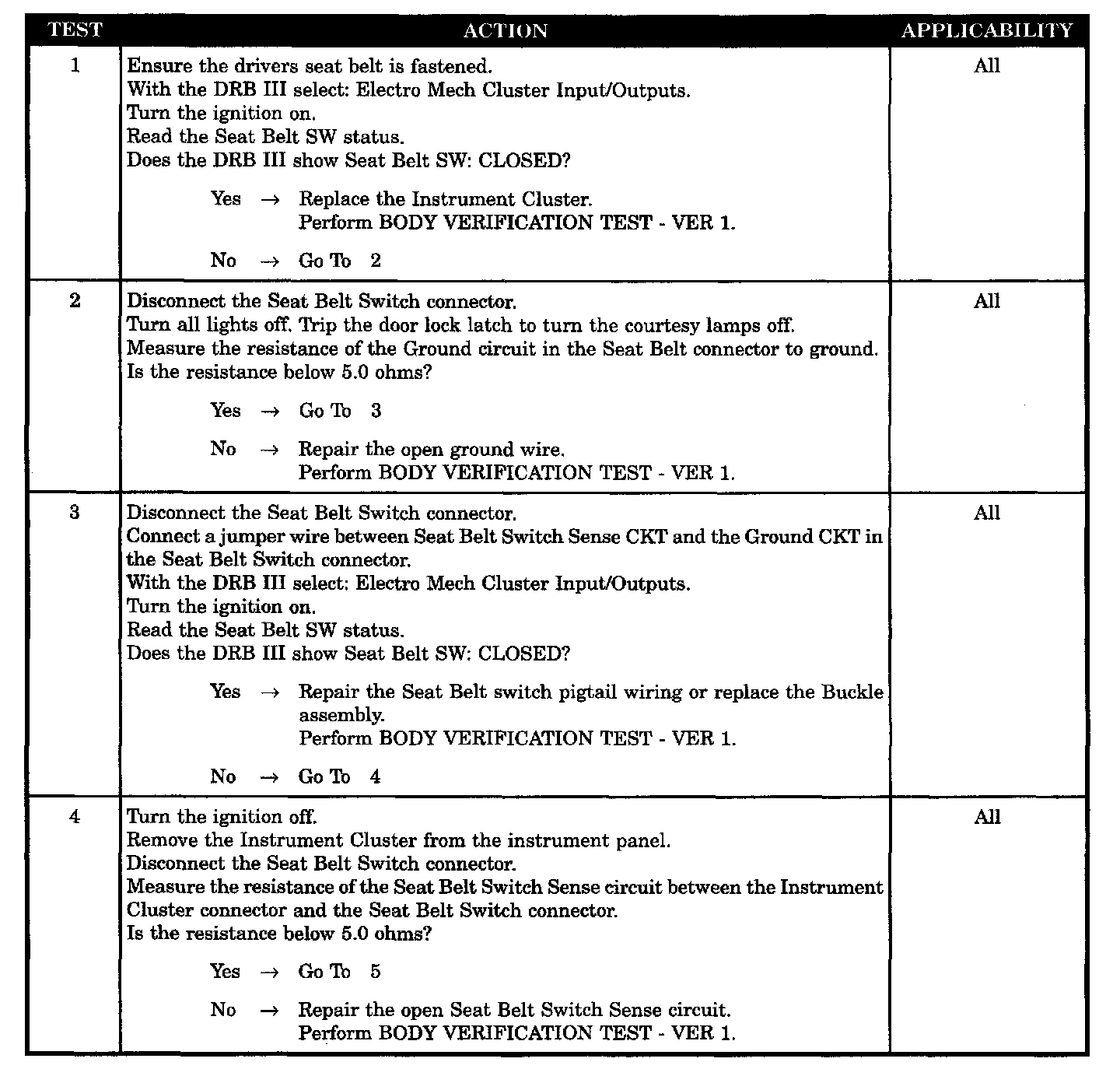

Tests 1 - 4:

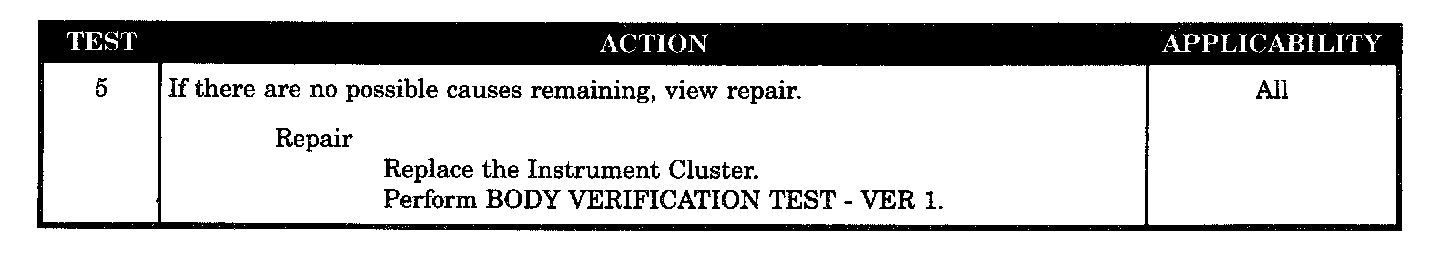

Test 5:




SYMPTOM
CHIME SOUNDS WITH DRIVER SEAT BELT FASTENED

POSSIBLE CAUSES
- Seat belt SW status wrong-open
- Seat belt switch open
- Ground wire open
- Seat belt SW SEN open
- Instrument cluster - seat belt sense open
