Actuator Test Reference Table

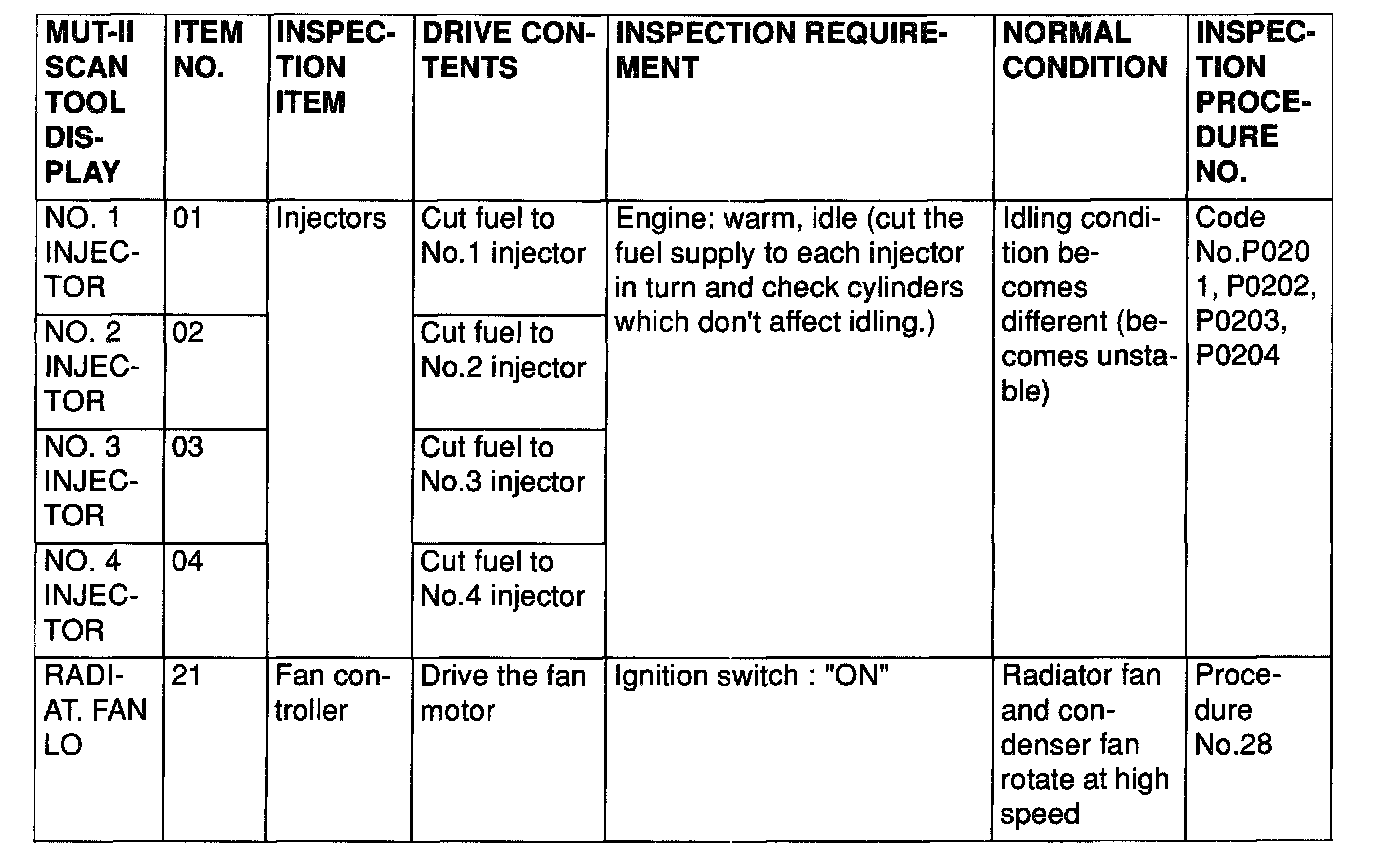

Actuator Test Reference Table (Part 1 Of 2):

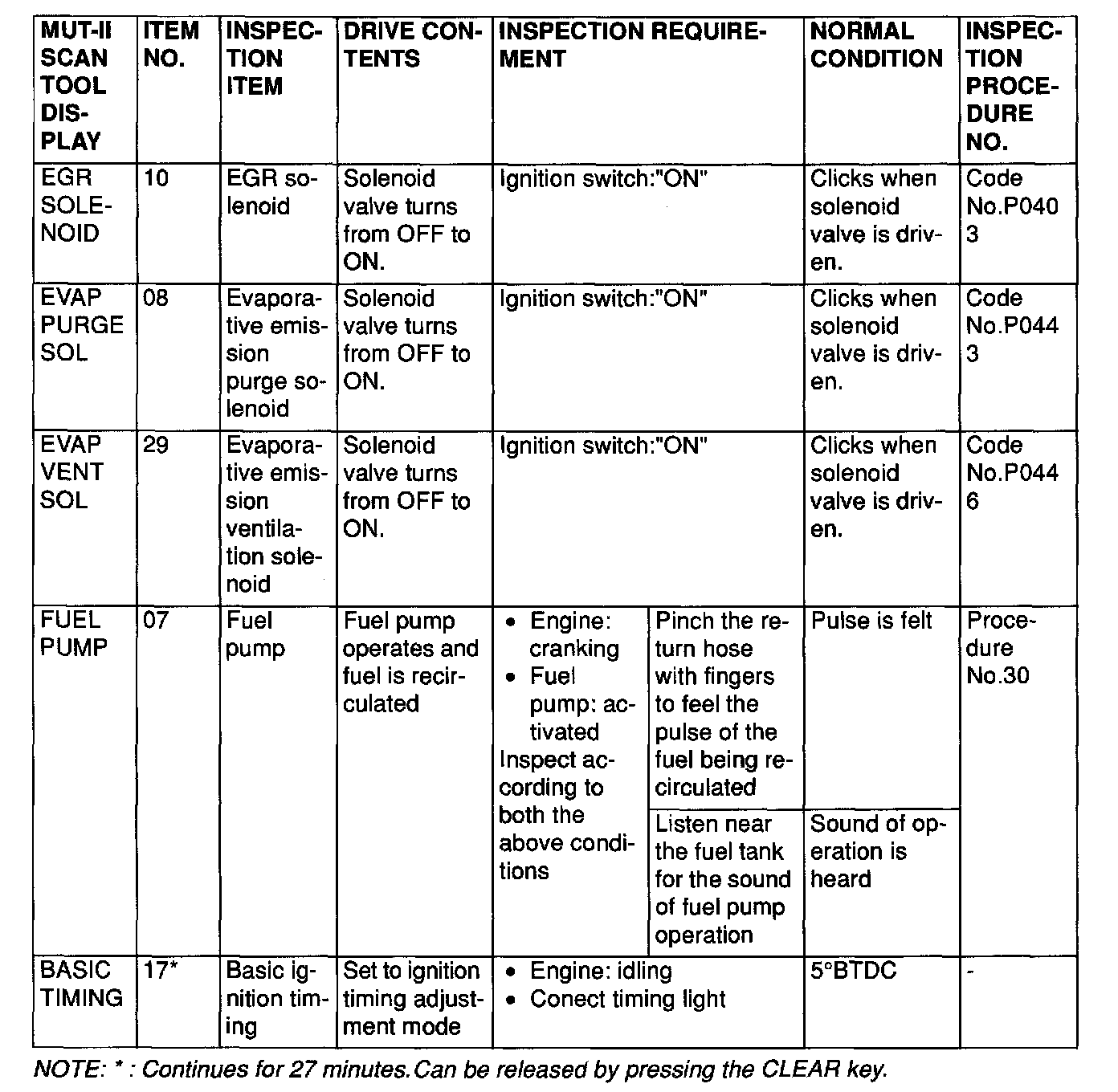

Actuator Test Reference Table (Part 2 Of 2):
