Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

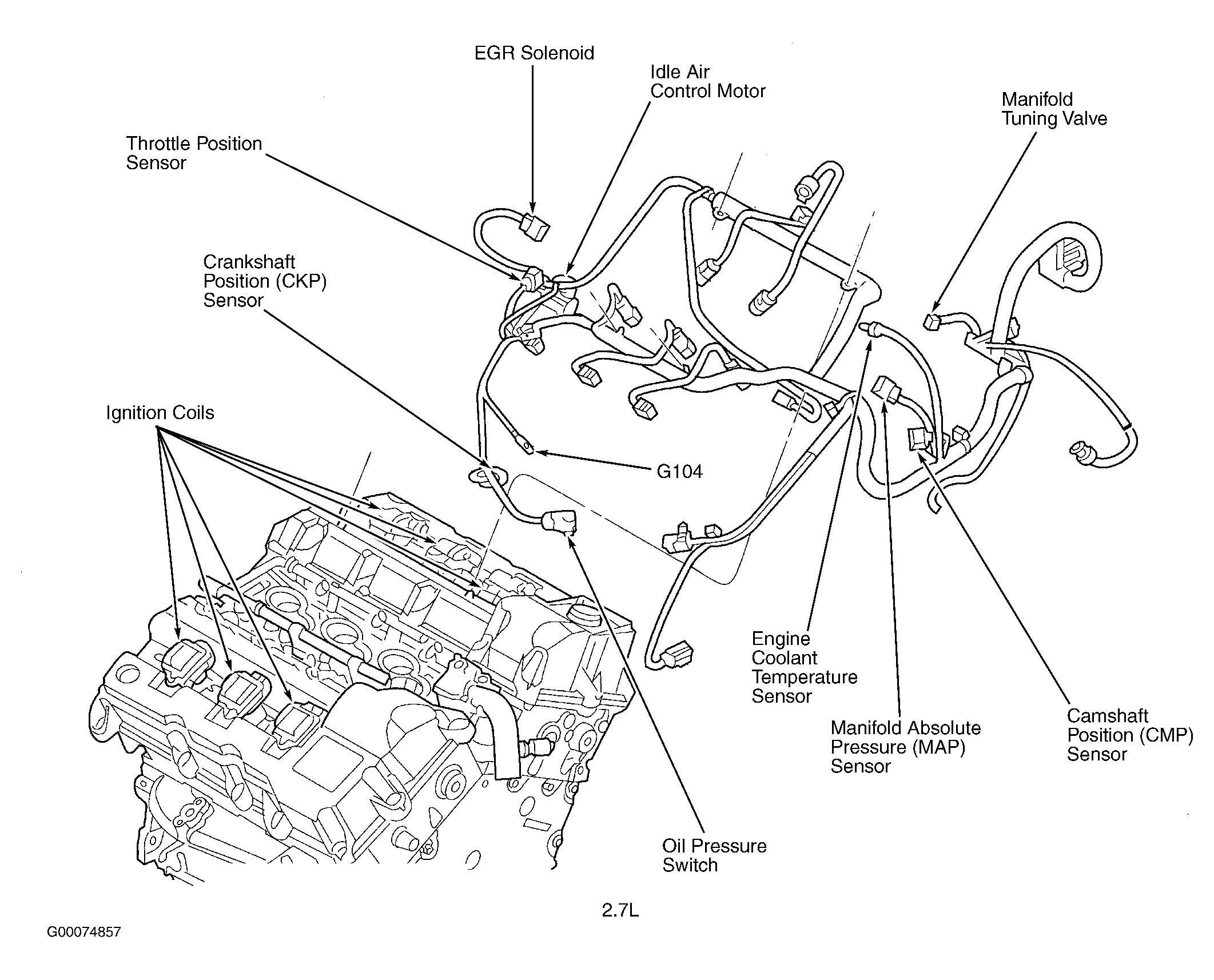

Fig 1: Engine
G00074857Courtesy of DAIMLERCHRYSLER CORP.

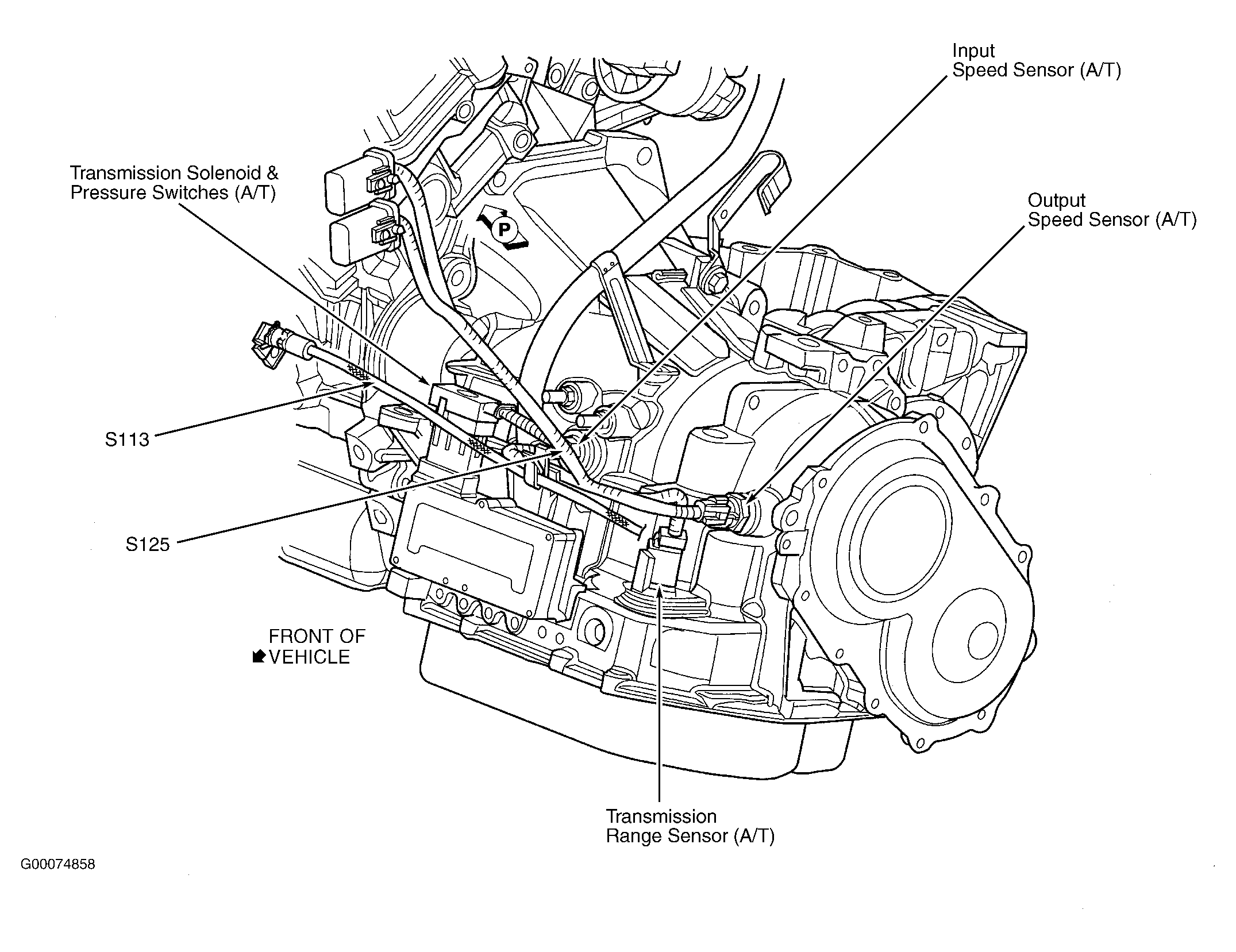

Fig 2: Left Side Of Transaxle
G00074858Courtesy of DAIMLERCHRYSLER CORP.
Fig 3: Left Side Of Engine Compartment
G00074859Courtesy of DAIMLERCHRYSLER CORP.
