Simulation Tests
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
In case of difficulty in finding the cause of the intermittent malfunction, the data recorder function in the scan tool is effective.

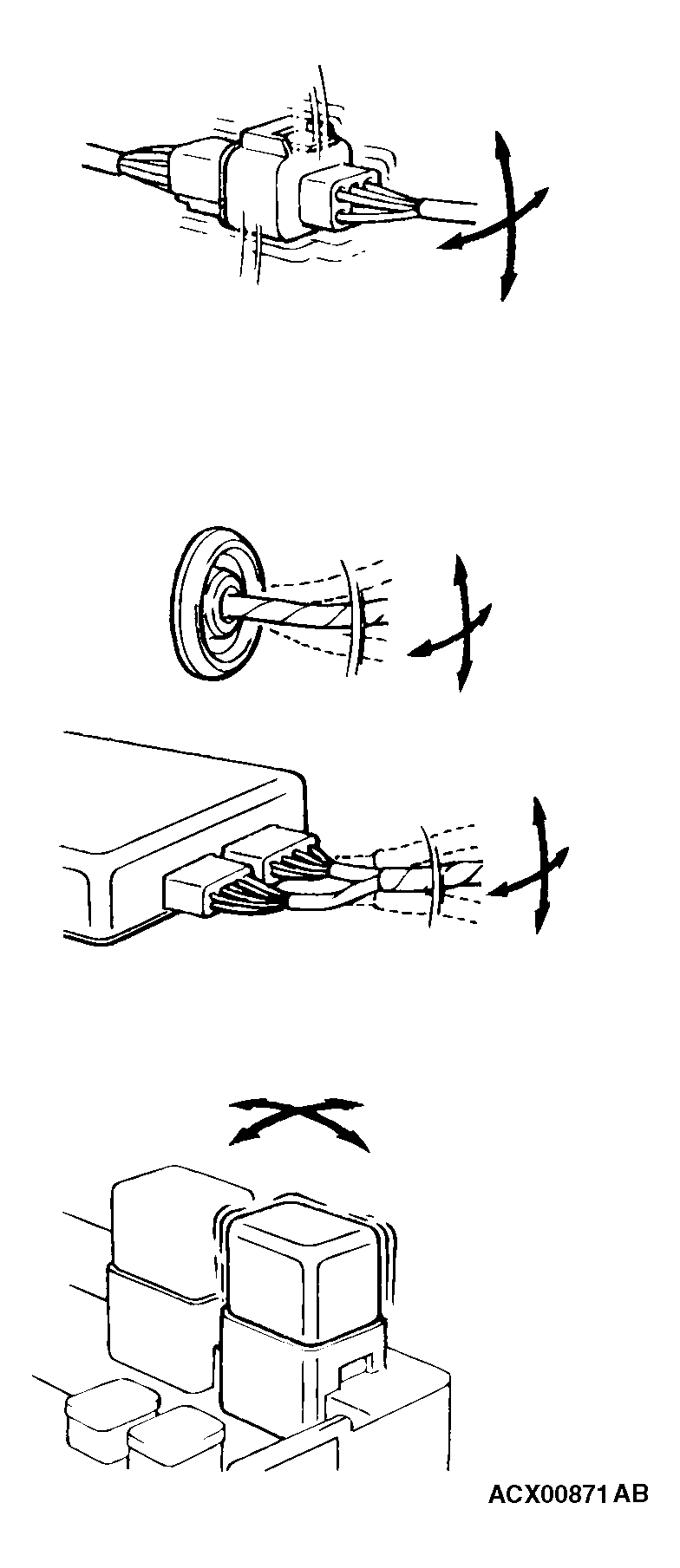

For these simulation tests, shake, then gently bend, pull, and twist the wiring of each of these examples to duplicate the intermittent malfunction.
- Shake the connector up-and-down, and right-and-left.
- Shake the wiring harness up-and-down, and right-and-left.
Especially, check splice points of a wiring harness carefully. Refer to Splice Location - INDEX .
- Shake the part or sensor.
