Control Assembly: Diagrams

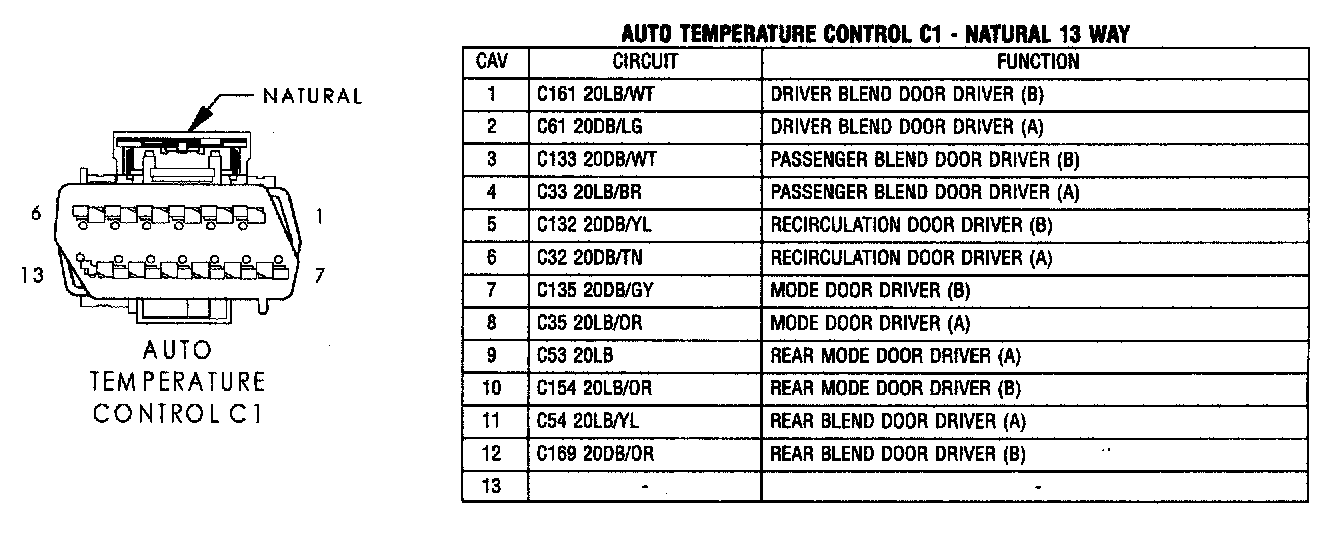

Auto Temperature Control C1:

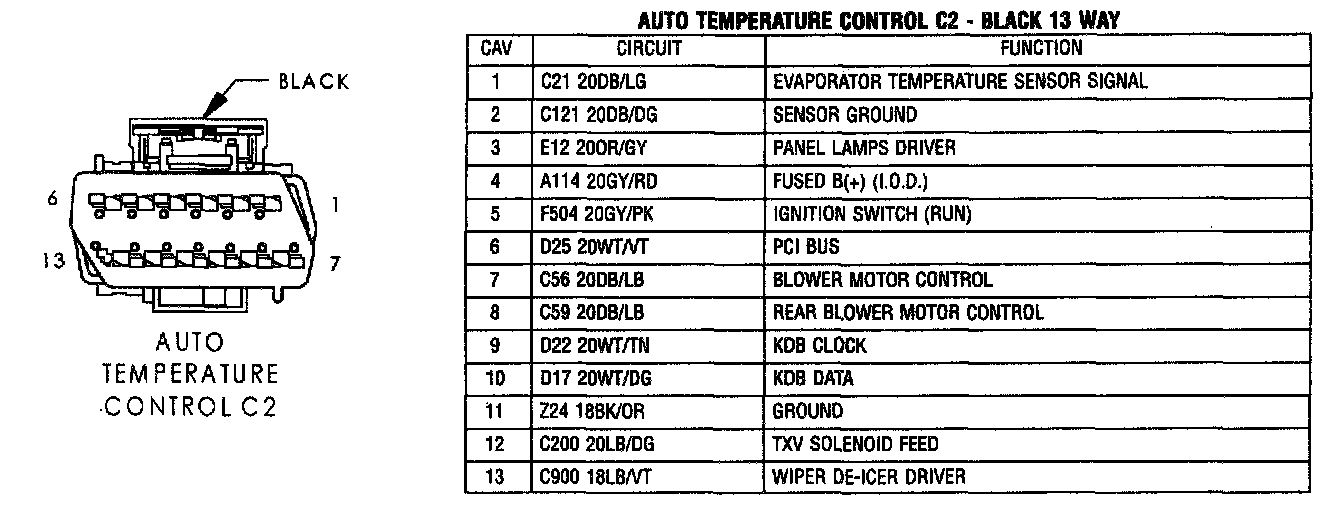

Auto Temperature Control C2:




Auto Temperature Control C3:




Rear A/C Heater Unit (ATC):




Rear A/C - Heater Unit (MTC):
