Crankshaft Position Sensor: Service and Repair

REMOVAL
1. Disconnect the negative battery cable.
2. Raise vehicle and support.

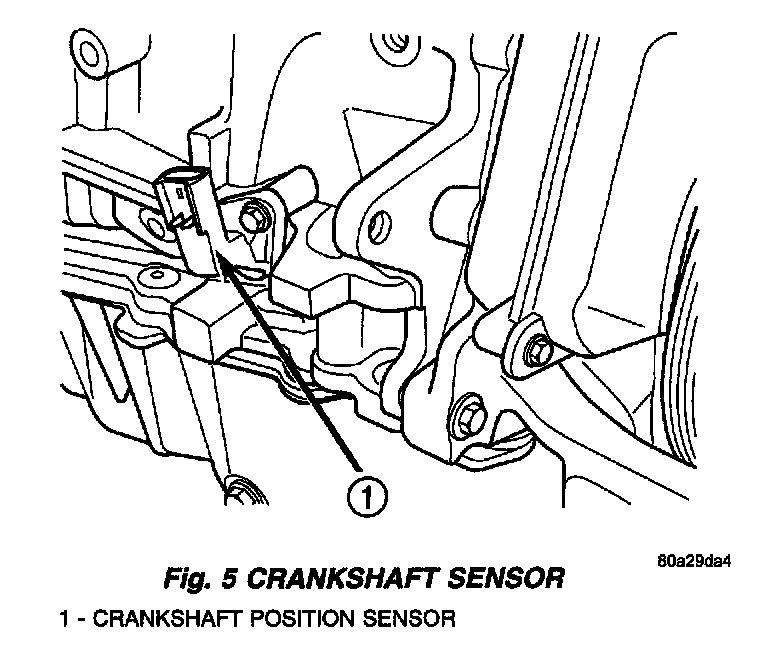

Fig. 5 Crankshaft Sensor:

3. Disconnect the electrical connector.
4. Remove crankshaft sensor bolt.
5. Remove the crankshaft sensor.

INSTALLATION
1. Install the crankshaft sensor.
2. Install crankshaft sensor bolt and tighten.
3. Connect the electrical connector.
4. Lower vehicle.
5. Connect the negative battery cable.
