Manifold Pressure/Vacuum Sensor: Service and Repair

REMOVAL
1. Disconnect the negative battery cable.

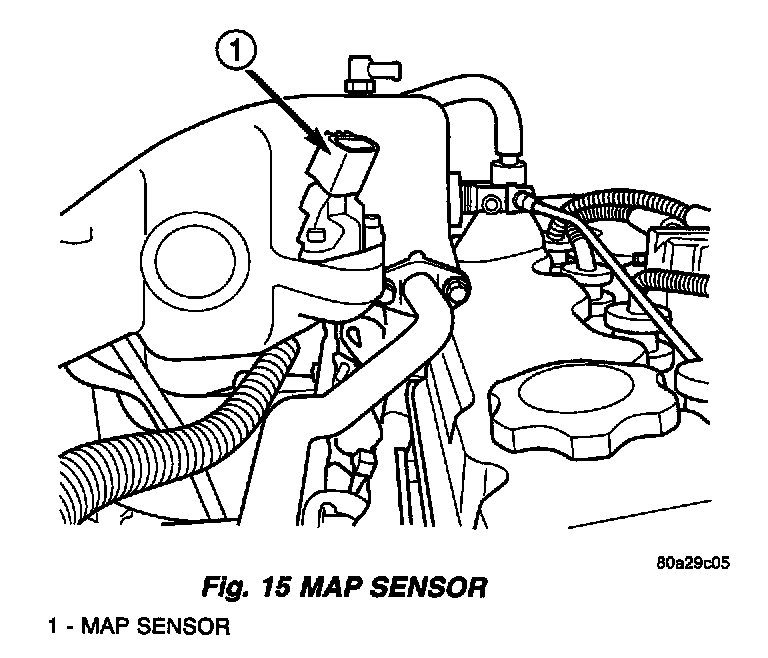

Fig. 15 MAP Sensor:

2. Disconnect electrical connector and vacuum hose from MAP sensor.
3. Remove two screws holding sensor to the intake manifold.

INSTALLATION
1. Install sensor.
2. Install two screws and tighten.
3. Connect the electrical connector and vacuum hose to the MAP sensor.
4. Connect the negative battery cable.
