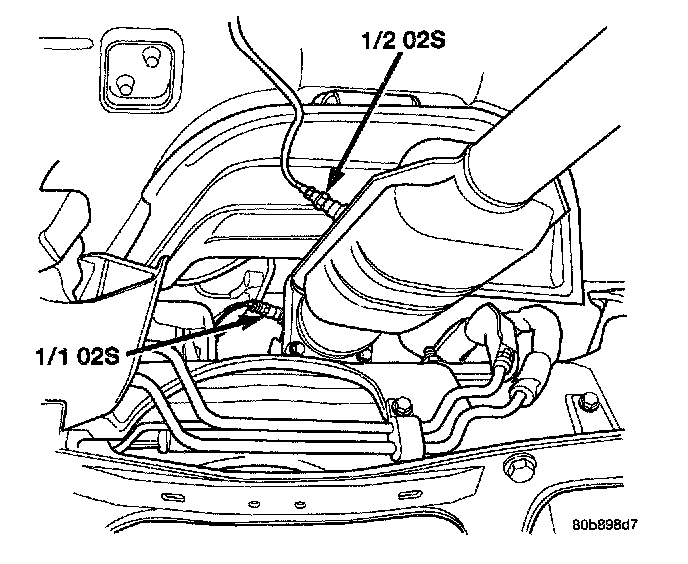

Engine Compartment/Exhaust System

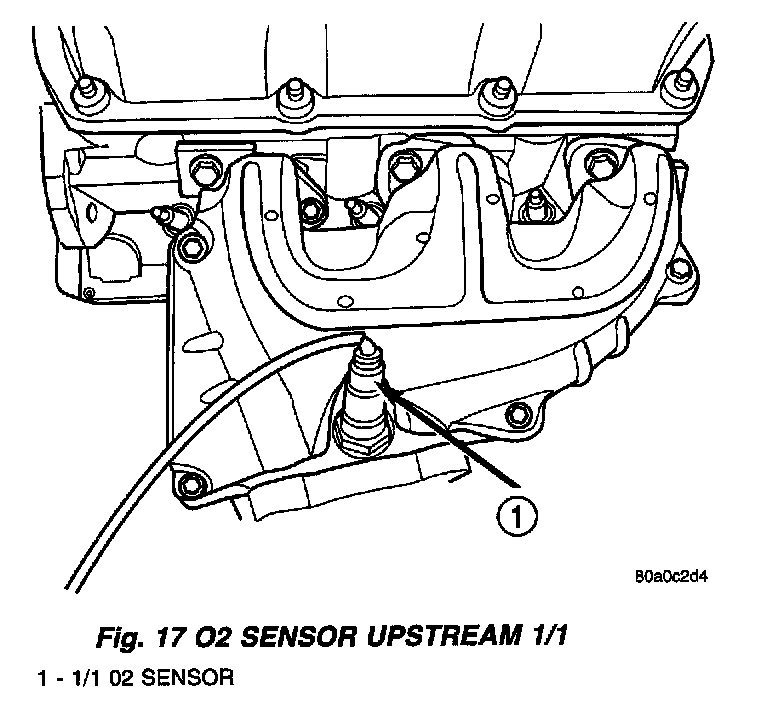

Fig. 17 O2 Sensor Upstream 1/1:

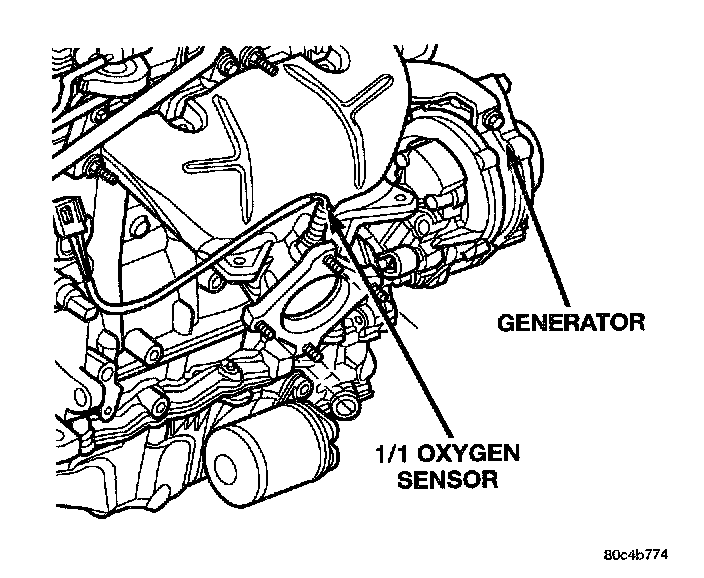

The upstream oxygen sensor threads into the outlet flange of the exhaust manifold.
