Control Module: Locations

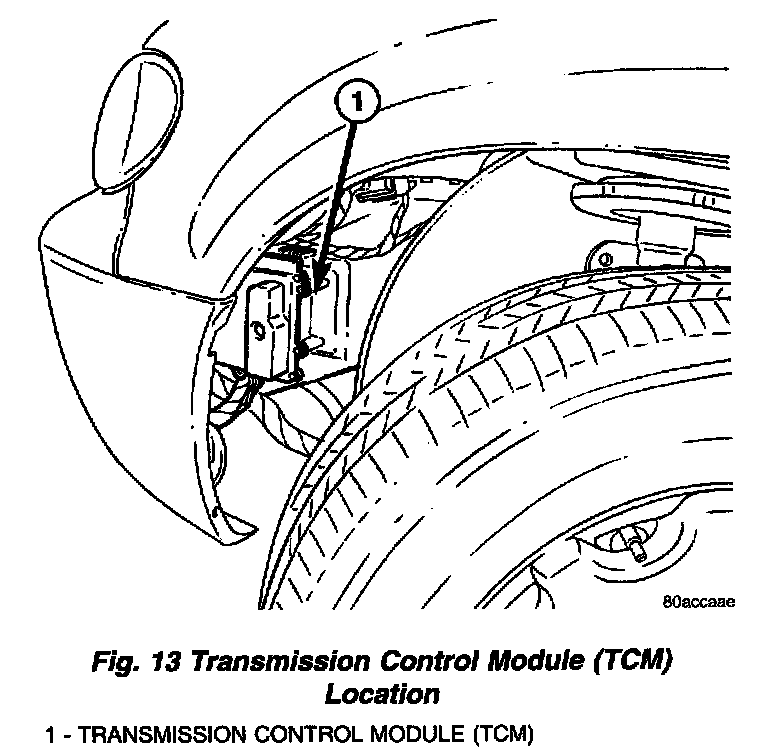

Fig.13 Transmission Control Module (TCM) Location:




The Transmission Control Module (TCM) is located behind the left fender and is fastened with three screws to three clips in the left frame rail forward of the suspension.
