Fuse Block

For fuse block location see Fig 1 .

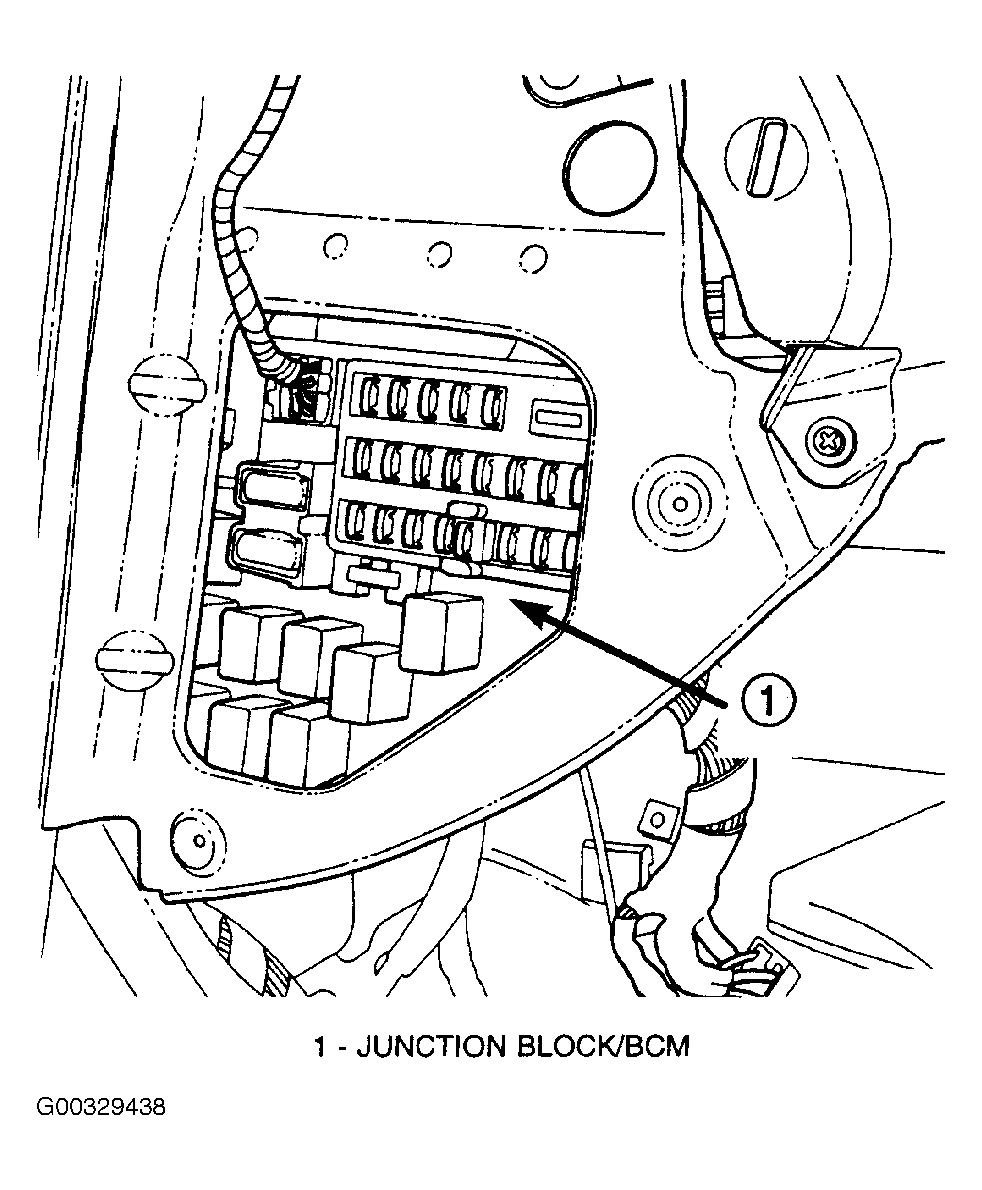

Fig 1: Locating Fuse Block
G00329438Courtesy of CHRYSLER CORP.
Fig 2: Identifying Fuse Block Components
G00329442Courtesy of CHRYSLER CORP.

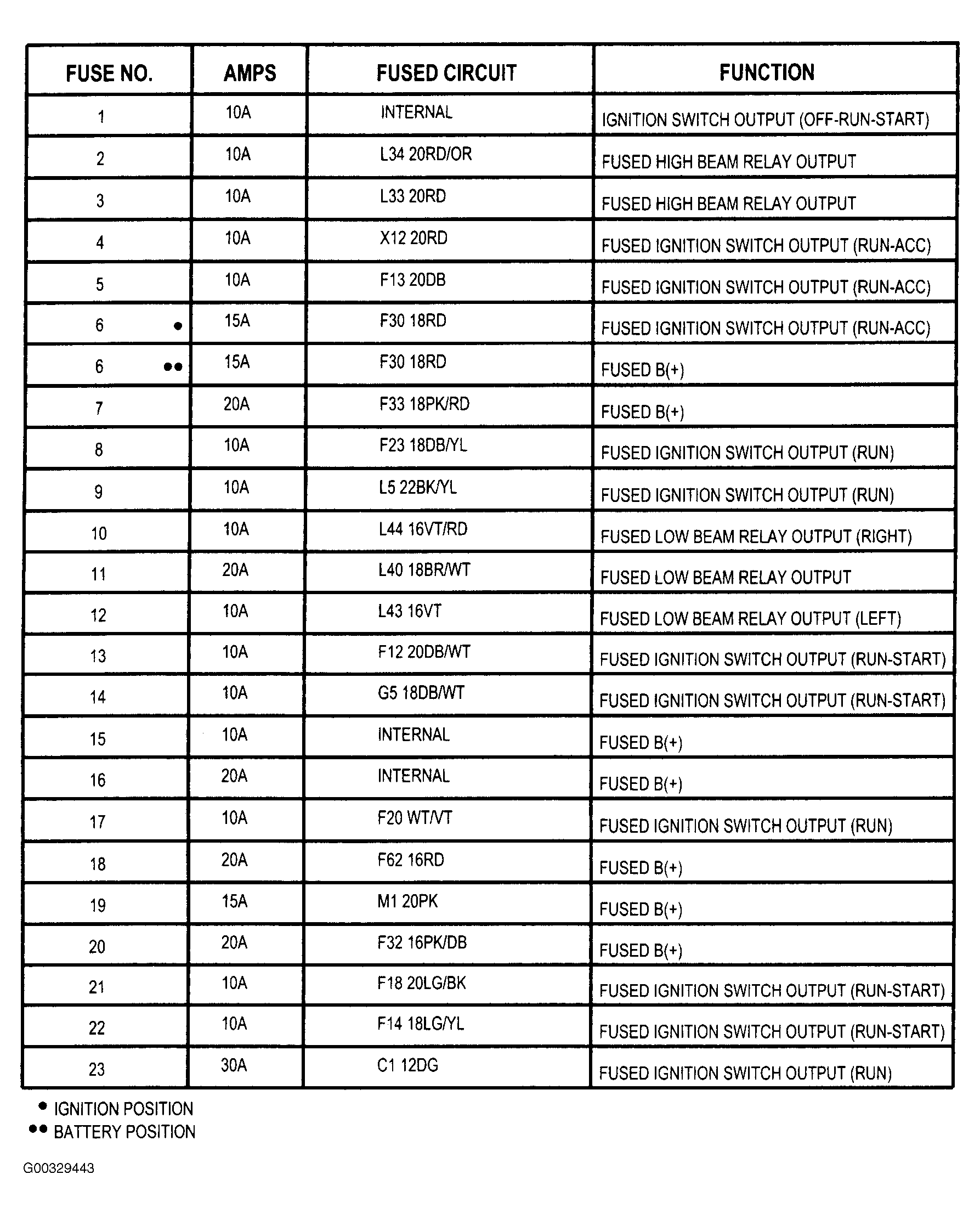

Fig 3: Fuse Block Legend
G00329443Courtesy of CHRYSLER CORP.
