Natural Vacuum Leak Detection Assembly Connector End View

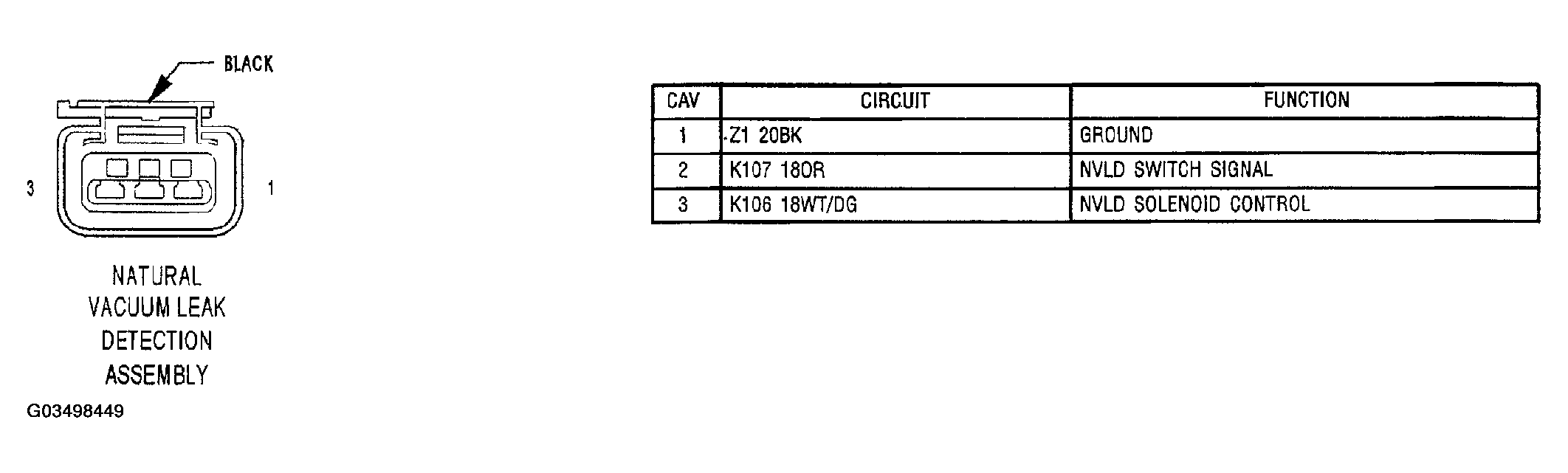

Fig 1: Natural Vacuum Leak Detection Assembly Connector End View
G03498449Courtesy of CHRYSLER GROUP, LLC
