Radiator Fan Relay: Description
WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

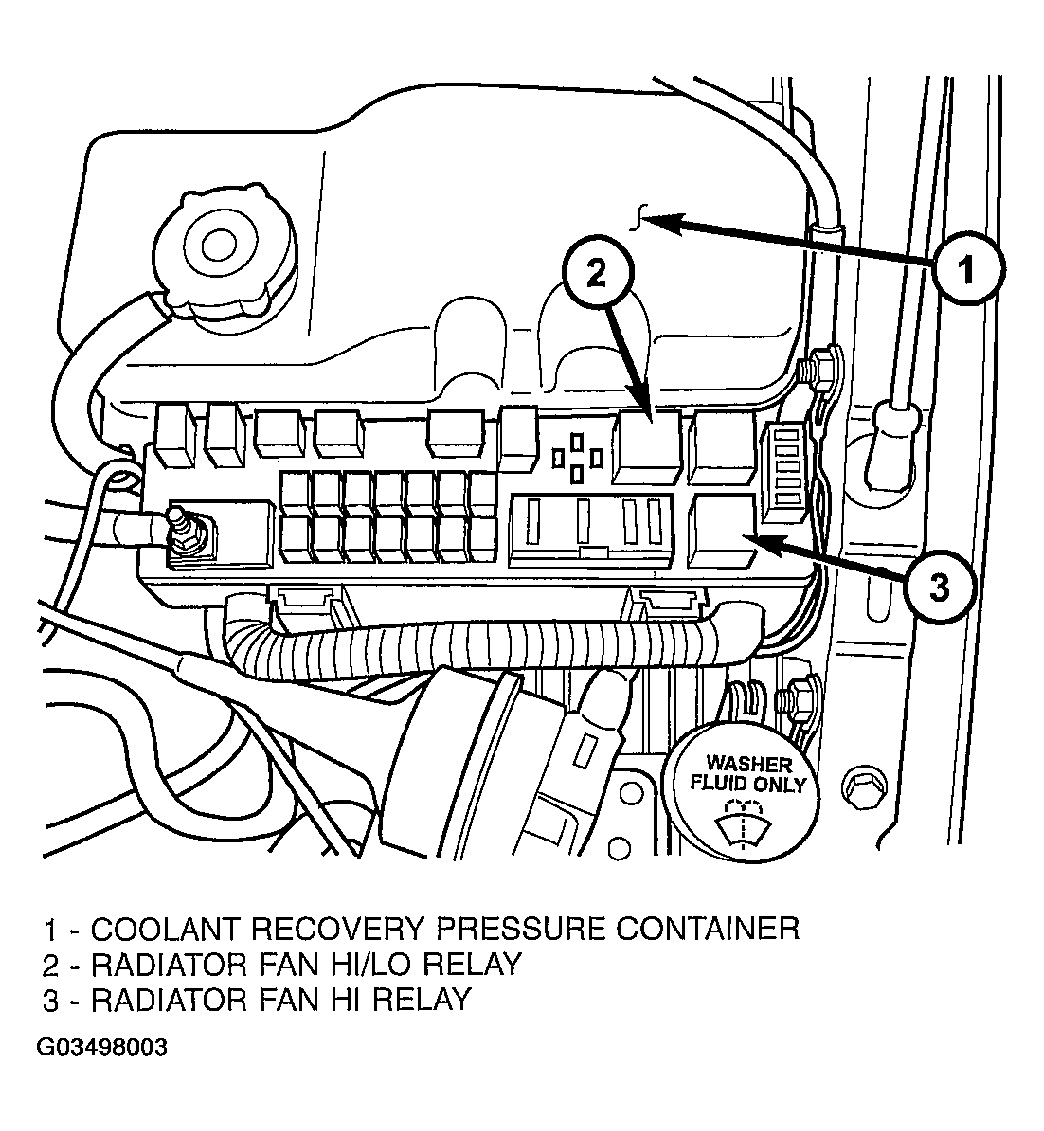

The HI/LO and HI radiator fan relays are located in the Power Distribution Center (PDC) near the coolant recovery pressure container (Fig 1). A decal on the inside of the PDC covers shows the location of each relay and fuse contained in the PDC. It is an ISO relay.

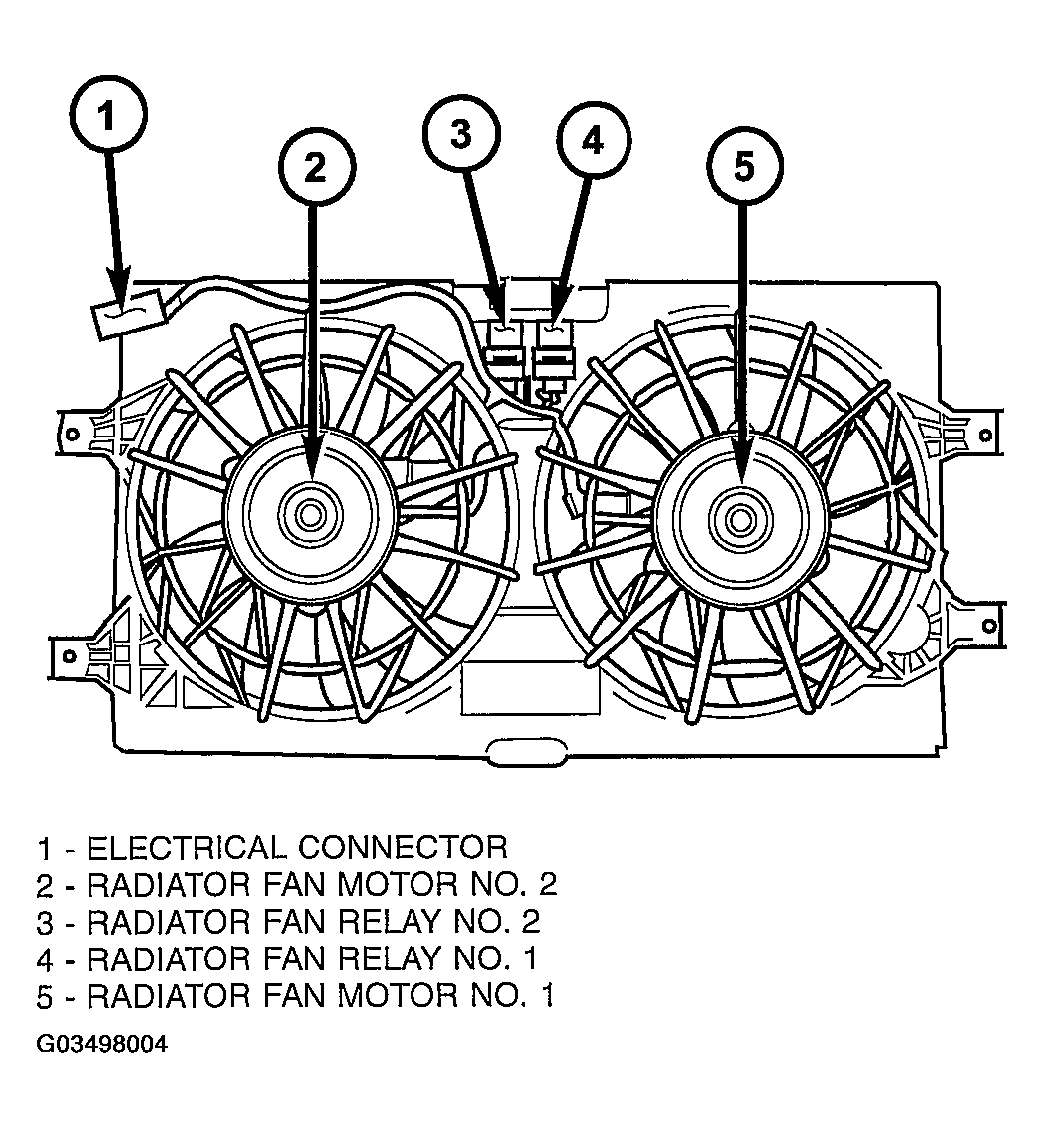

All vehicles (except 2.7L base) are also equipped with No. 1 and No. 2 radiator fan relays that are mounted to the radiator fan motor shroud (Fig 2).
