Multi-Function Switch
WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.

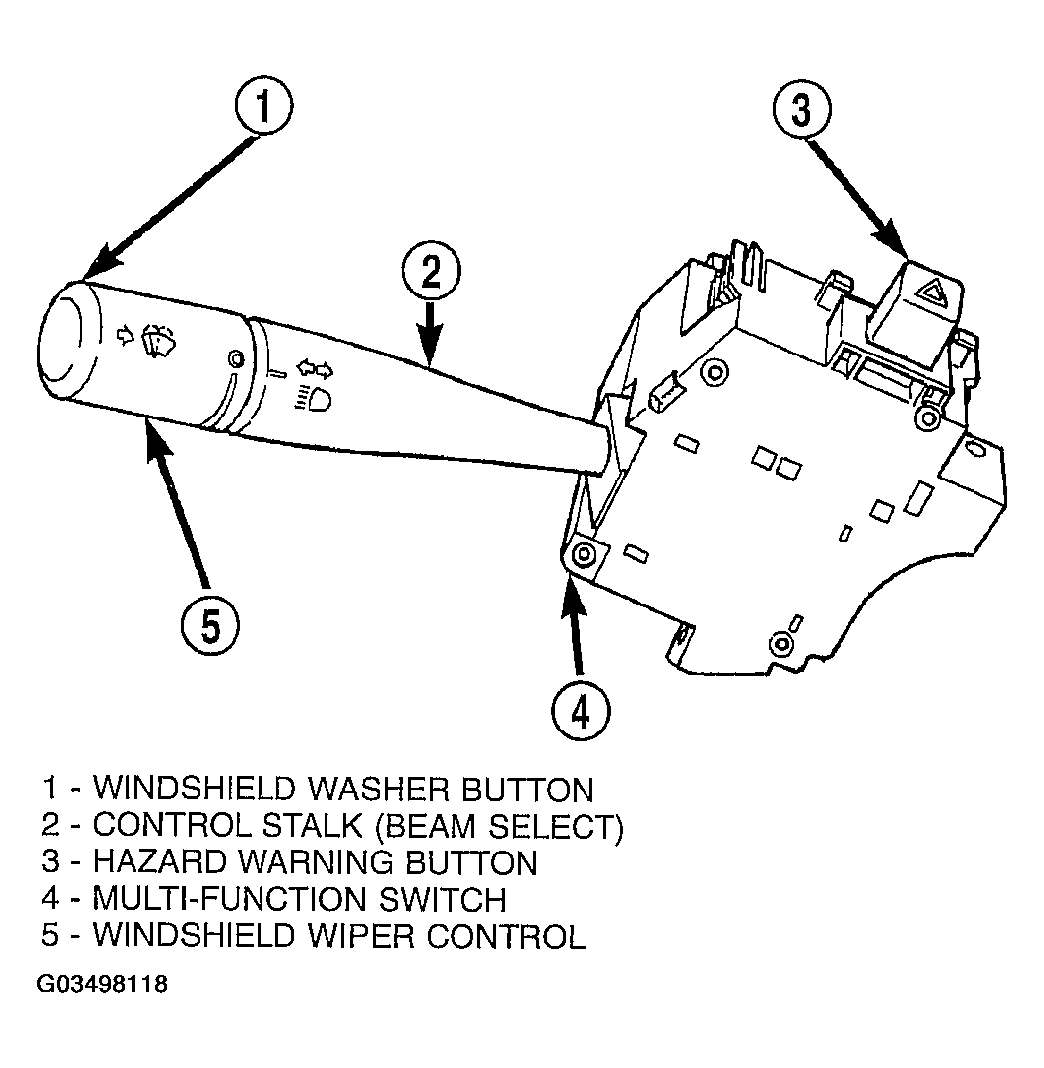

The turn signals are part of the multi-function switch (Fig 1) which contains:
- Electrical circuitry for turn signals.
- Hazard warning switch.
- Headlamp beam select switch.
- Headlamp optical horn.
- Windshield wiper switch.
- Pulse wipe and windshield washer switching.
The integrated switch assembly is mounted to the left hand side of the steering column.
